TRUST 6873-SS American style Tubular Knob Door Lock ANSI Grade 3 Keyed Entry Round Knob Lock

• Function:ET, (BK, PS, DM, ST.CL. CM)
• Finish:SS/US32D, PB/US3, CP/US26, SC/US26D,
• Key:KW1 (SC1, C4, YA, WR5)

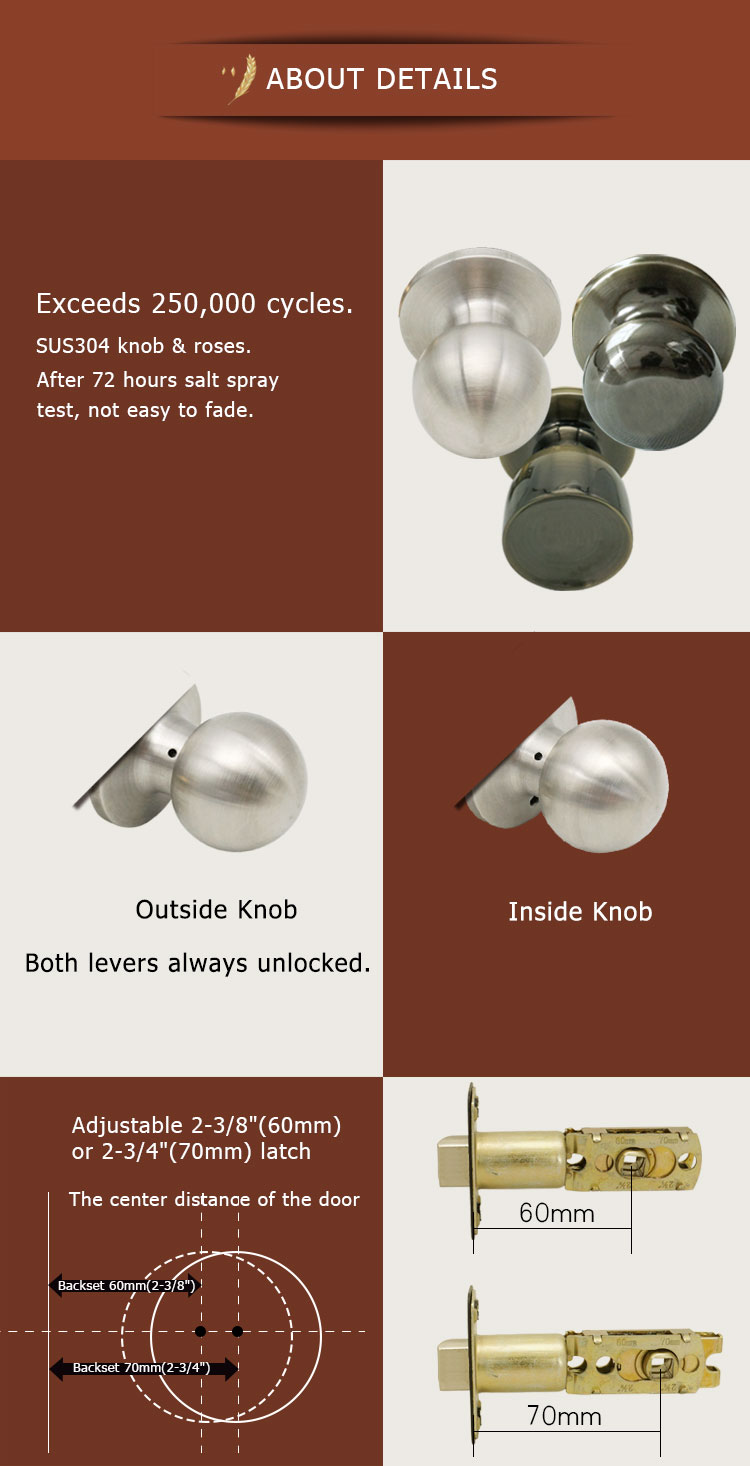

• Latch:Adjustable 2-3/8"(60mm)or 2-3/4"(70mm)
• Cylinder:5- pin or 6 pin removable core
• Door thickness:Fit DOORS 1-3/8"(35mm) to 2"(50mm) thick
• Application:RH/LH reversible

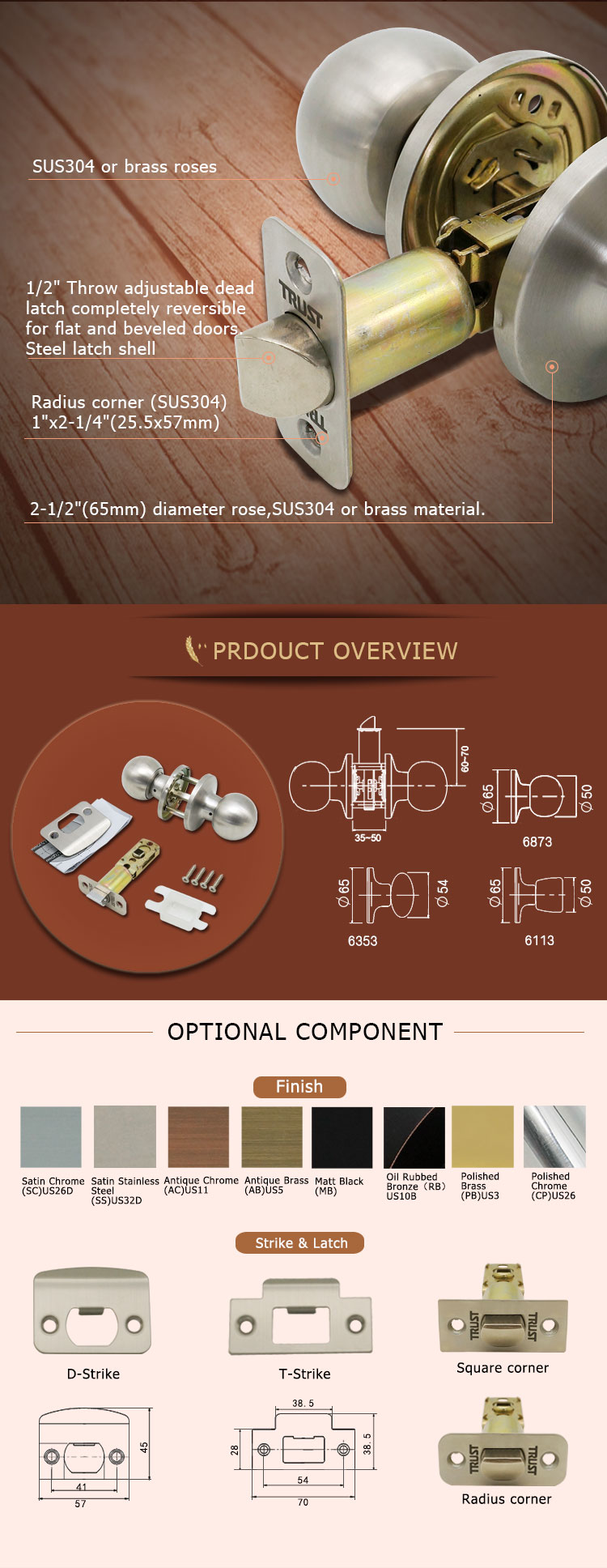

• Faceplate:Square corner (25x57mm) standard or radius corner
• Spindle:Square Drive Spindle
• Place of Origin:CN;GUA
• Brand Name:TRUST
• Model Number:6873-SS
• Certification:ANSI grade 3

TRUST 6873-SS American style Tubular Knob Door Lock ANSI Grade 3 Keyed Entry Round Knob Lock

Square-Drive Spindle

Special design for standard duty

Meets with ANSI A156.2 Grade 3,Exceeds 200,000 cycles

1,Structure: 304 stainless steel or Solid brass construction.

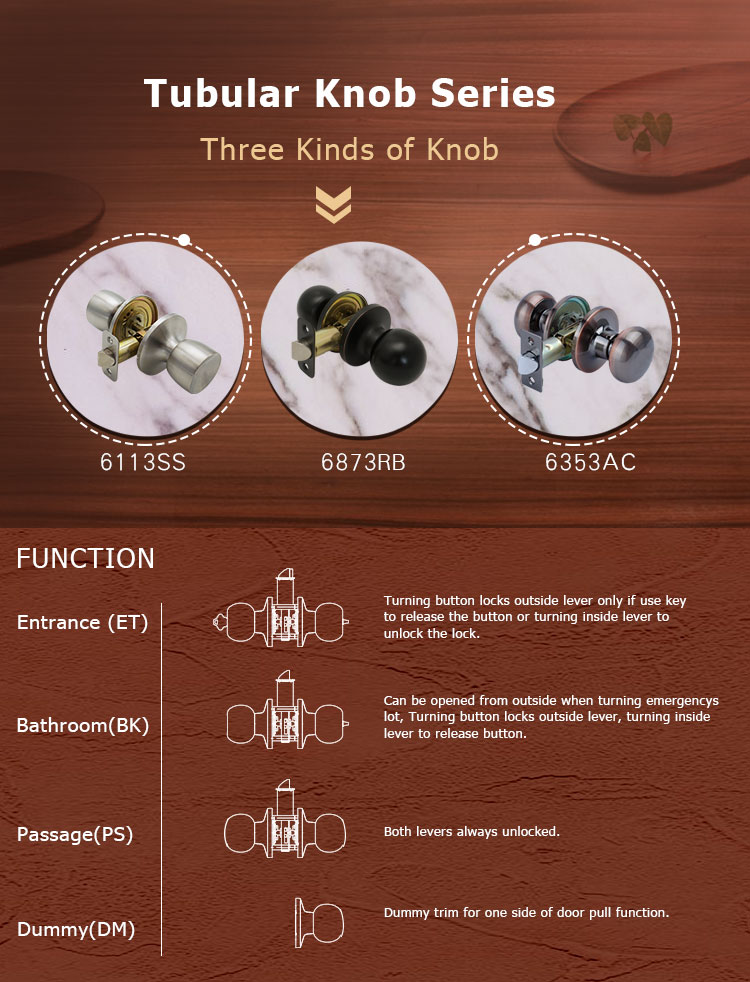

2,Function: 1-Entrance, 2-Privacy, 3-Passage, 4-Storeroom, 5-Classroom, 0-Dummy are available.

3,Knob Style: 6 different knob styles available to meet customer´s need.

4,Finish: SS, PSS, PB, SB, AC, AB, CP, PVD, US15A, or required.

5,Latch bolt: 60mm (2-3 / 8") ~70mm (2-3 / 4") Adjustable latch as standard; Drive-in or 6 Way latch also available as request;

6,Rosette: Small Rose (65mm) as standard, M (70mm) & L (75mm) also available.

7,Door thickness: Fit doors 35mm (1-3 / 8") to 50mm (2") thick, easy to install.

8,Pack: WBX (White Plain Box) ; CBX (Colorful Box) ; or VP (Clam Shell) .

9,Door Prep:Cross bore 2-1/8”(54mm),Edge bore 1”(25mm),latch face 1”x2-1/4”(25x57mm)
