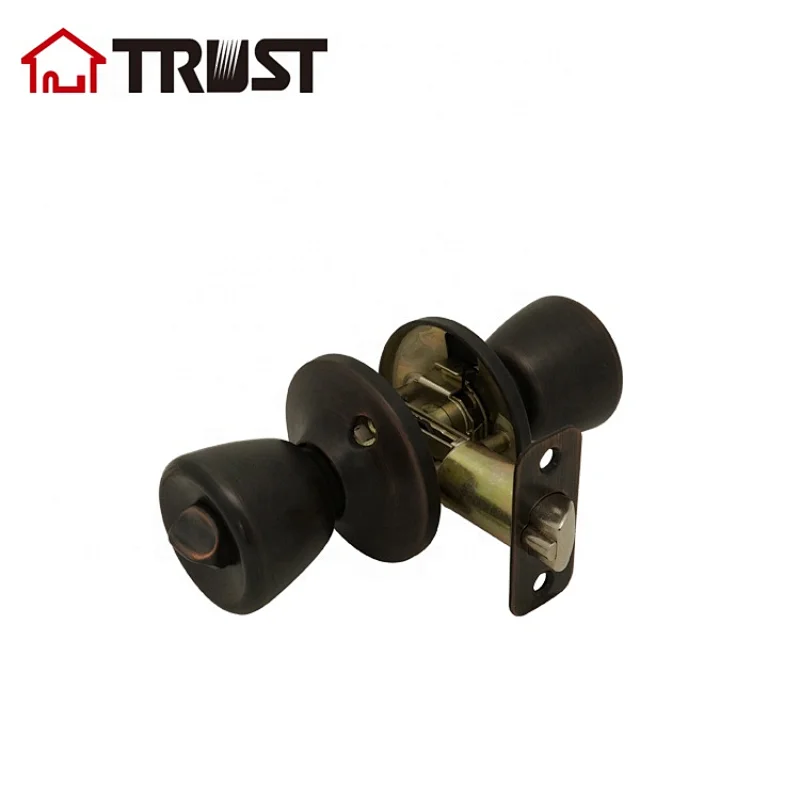

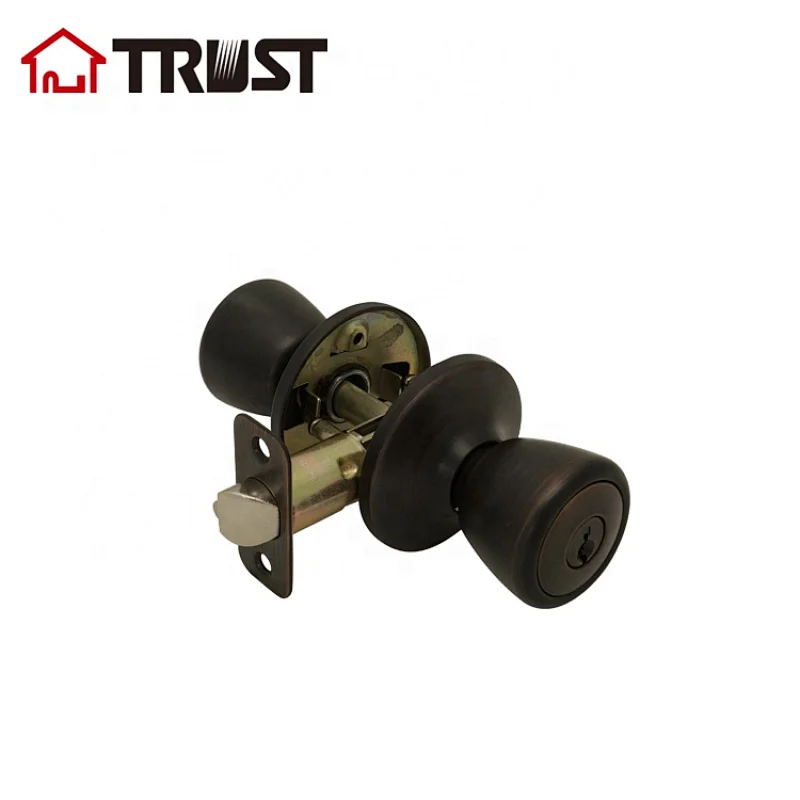

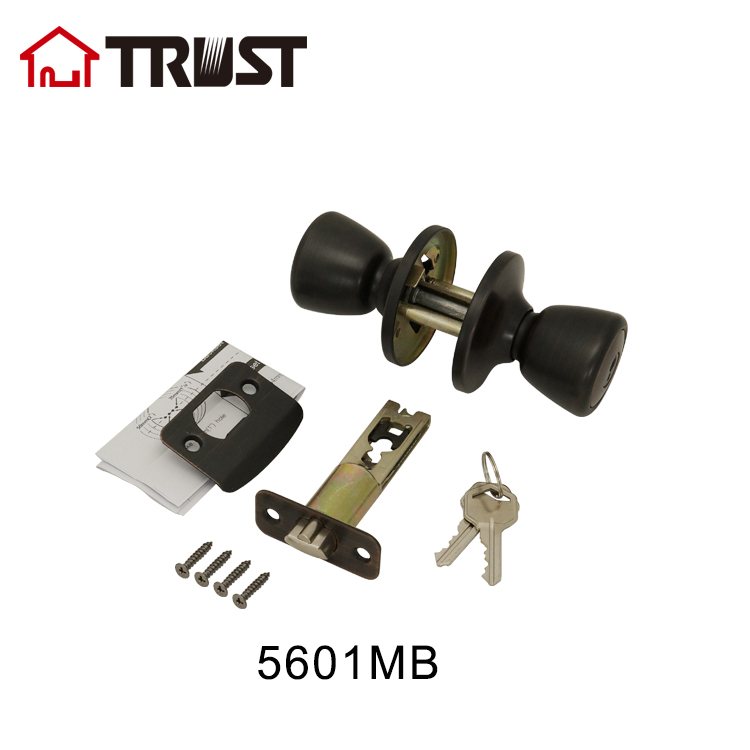

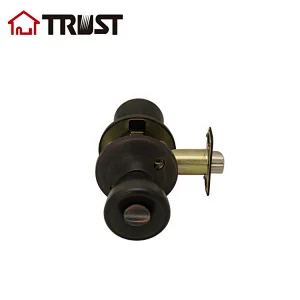

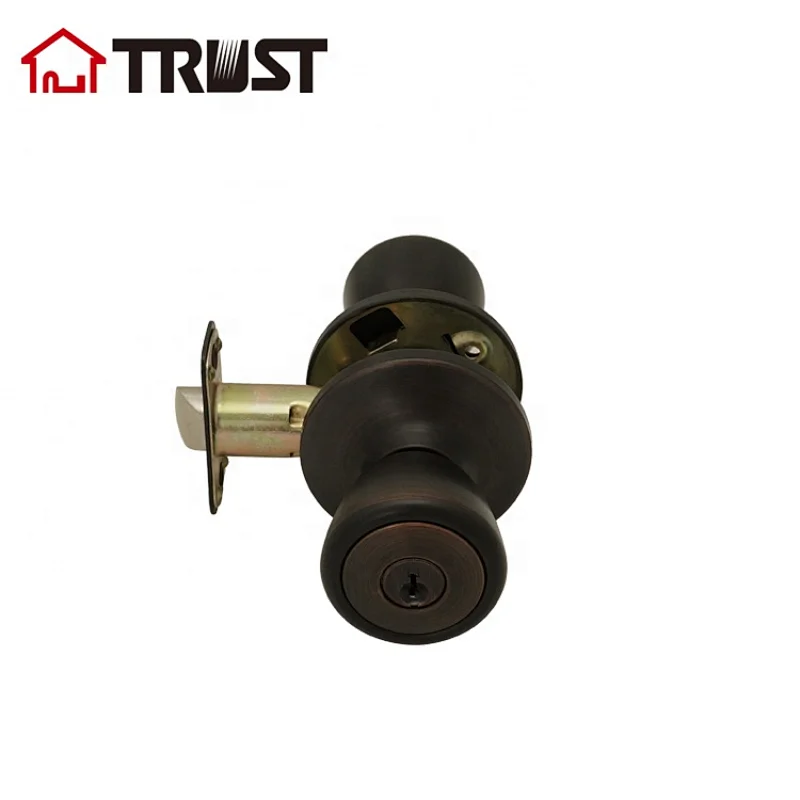

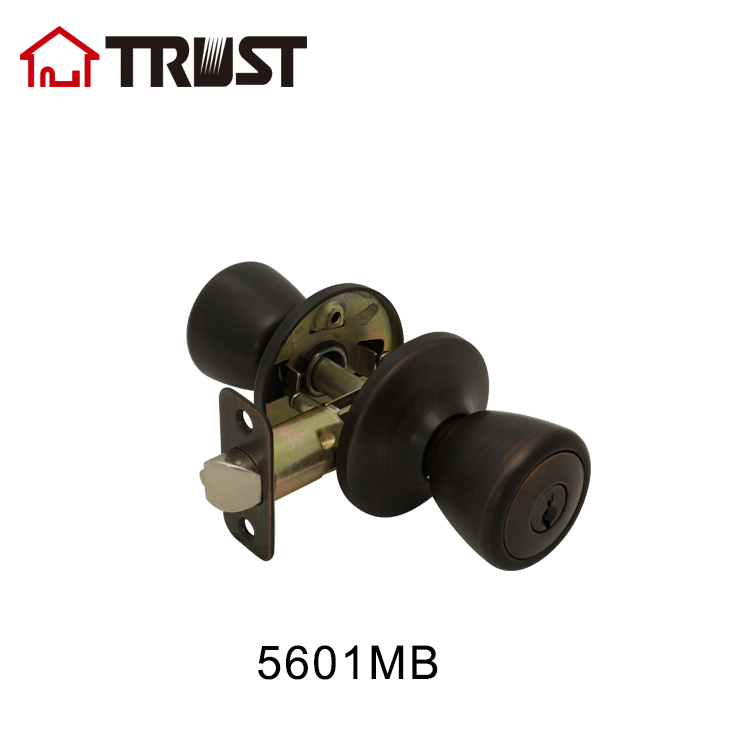

TRUST 5601-MB ANSI Grade 3 Tubular Knob Door Lock Radius Drive Spindle Round Ball Lock
5601MB-ET
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:5601MB-ET
  • Function:ET, (BK, PS, DM, ST.CL. CM)
  • Finish:SS/US32D, PB/US3, CP/US26, SC/US26D,
  • Key:KW1 (SC1, C4, YA)
  • Latch:Adjustable 2-3/8"(60mm)or 2-3/4"(70mm)
  • Cylinder:5- pin removable core
  • Application:RH/LH reversible
  • Faceplate:Square corner (25x57mm) standard or radius corner
  • Spindle:Radius Drive Spindle
  • Door thickness:Fit DOORS 1-3/8"(35mm) to 2"(50mm) thick
Product Description



Radius-Drive Spindle

Special design for standard duty

Meets with ANSI A156.2 Grade 3,Exceeds 200,000 cycles

1,Structure: 304 stainless steel or Solid brass construction.

2,Function: 1-Entrance, 2-Privacy, 3-Passage, 4-Storeroom, 5-Classroom, 0-Dummy are available.

3,Knob Style: 6 different knob styles available to meet customer´s need.

4,Finish: SS, PSS, PB, SB, AC, AB, CP, PVD, US15A, or required.

5,Latch bolt: 60mm (2-3 / 8") ~70mm (2-3 / 4") Adjustable latch as standard; Drive-in or 6 Way latch also available as request;

6,Rosette: Small Rose (65mm) as standard

7,Keyway: KW1, SC1, Ya, C4 or special required.

8,Keying: KA(Keyed Alike), KD (Keyed Diffrent), MSK (Master Key), CSK(Construction Keying);

9,Door thickness: Fit doors 35mm (1-3 / 8") to 50mm (2") thick, easy to install.

10,Pack: WBX (White Plain Box) ; CBX (Colorful Box) ; or VP (Clam Shell) .

11,Door Prep:Cross bore 2-1/8”(54mm),Edge bore 1”(25mm),latch face 1”x2-1/4”(25x57mm)

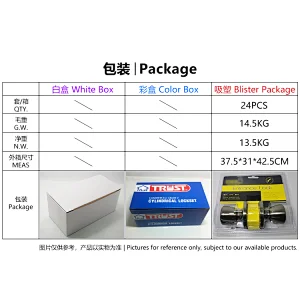

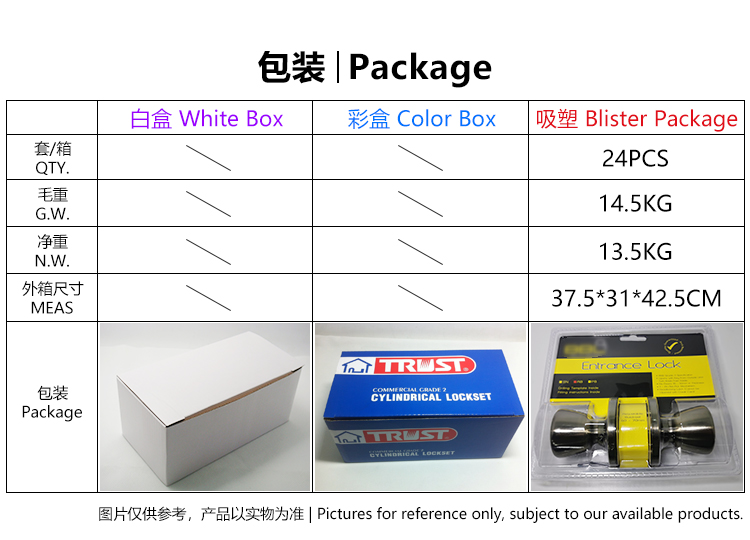

Packaging & Shipping



Certifications

.jpg

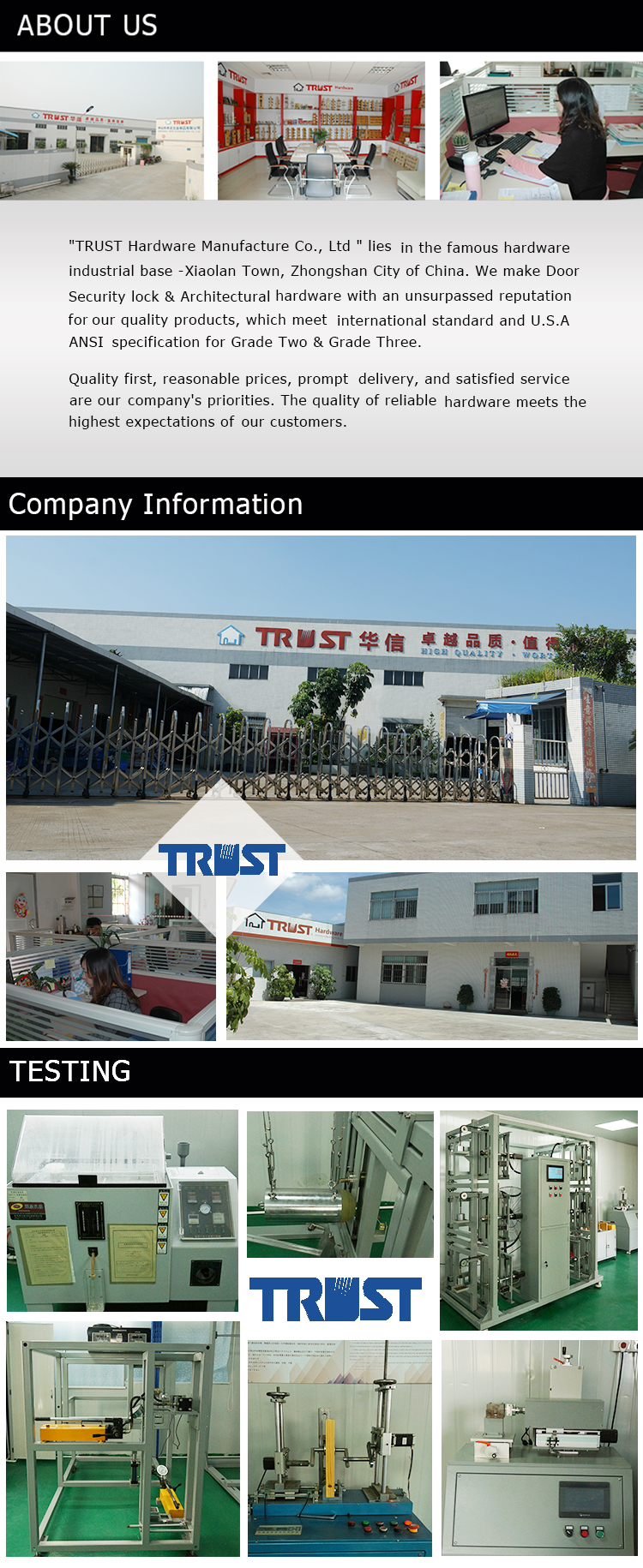

Company Information

.jpg

FAQ
1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Bodyand other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.
4 :Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude for the first time.
