- Keyway:SC1.KW1.YA, C4
- Finish:SS/US32D, SC/US26D,SN/US15...
- Backset:Adjustable 2-3/8"(60mm)or 2-3/4"(70mm)
- Application:completely reversible
- Cylinder:5- pin removable core
- Faceplate:Changeable square corner (25x57mm) standard or radius corner
- Door Thickness:1-3/8"(35mm) to 2"(50mm) thick
- Place of Origin:CN;GUA
- Brand Name:TRUST
- Model Number:6872-AB
- Certification:ANSI grade 3

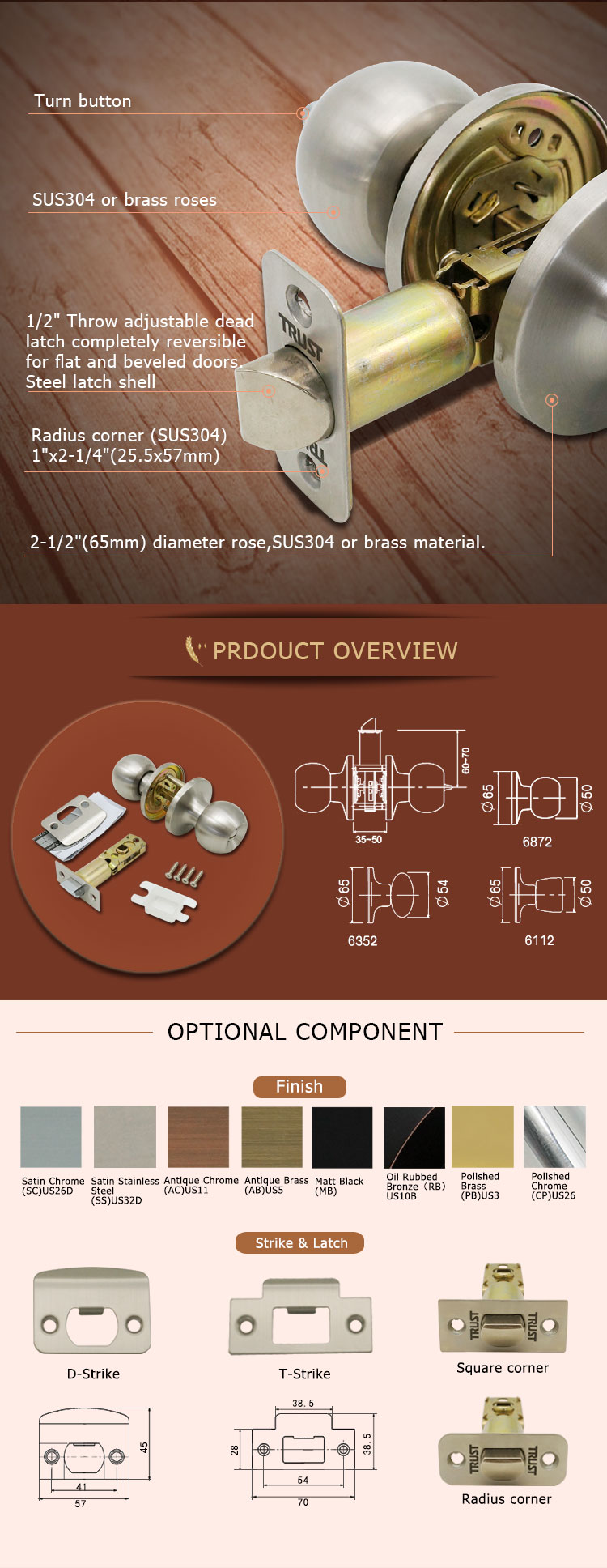

TRUST 6872-AB Tubular Round SS304 ANSI Grade 3 High Safety door knob lock
Special design for standard duty
Meets with ANSI A156.2 Grade 3,Exceeds 200,000 cycles
1,Structure: 304 stainless steel or Solid brass construction.

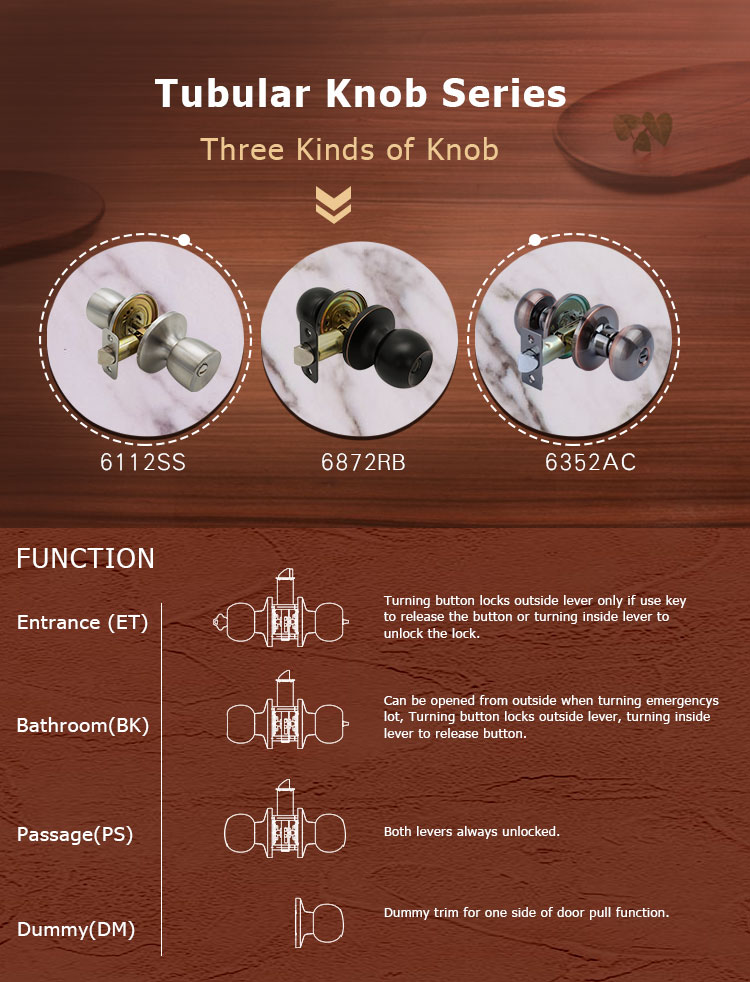

2,Function: 1-Entrance, 2-Privacy, 3-Passage, 4-Storeroom, 5-Classroom, 0-Dummy are available.
3,Knob Style: 6 different knob styles available to meet customer´s need.
4,Finish: SS, PSS, PB, SB, AC, AB, CP, PVD, US15A, or required.

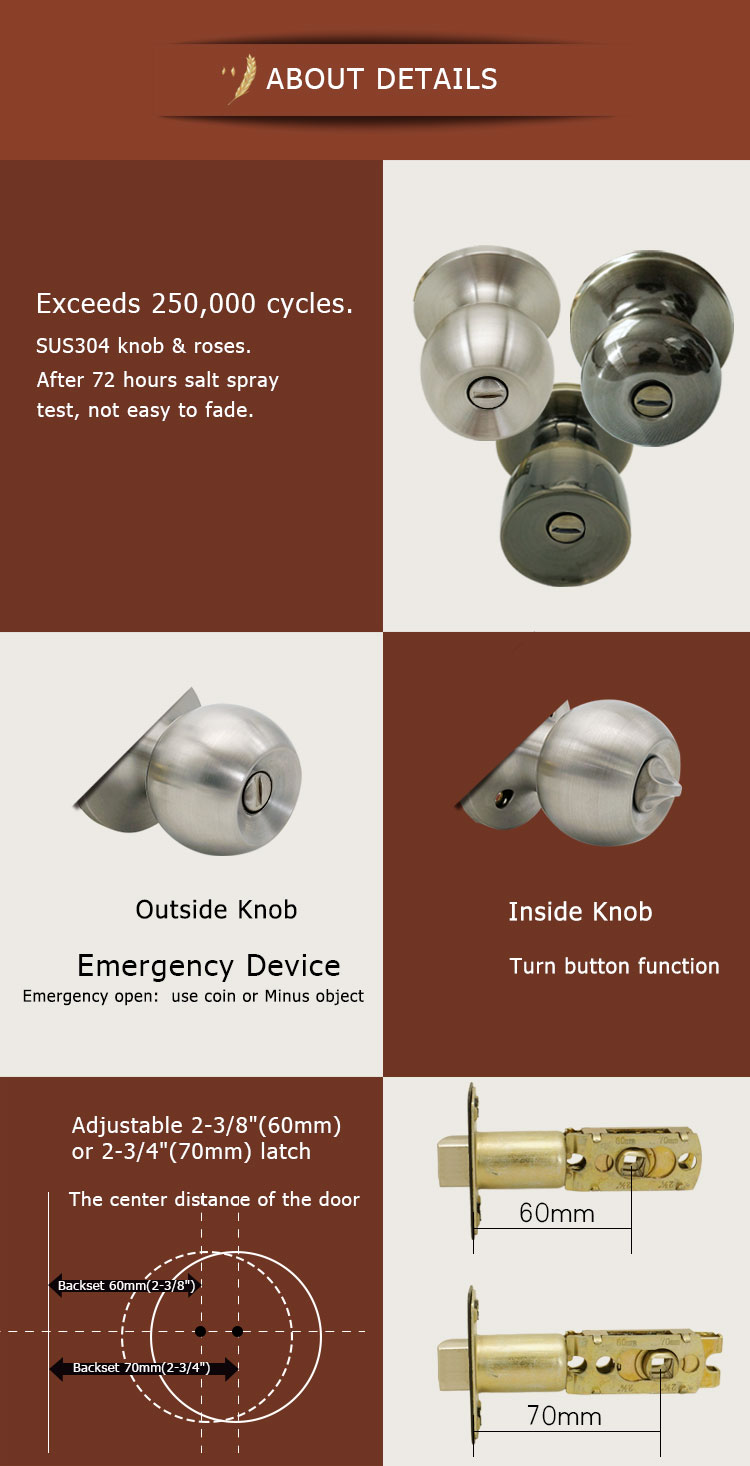

5,Latch bolt: 60mm (2-3 / 8") ~70mm (2-3 / 4") Adjustable latch as standard; Drive-in or 6 Way latch also available as request;
6,Rosette: Small Rose (65mm) as standard, M (70mm) & L (75mm) also available.
7,Keyway: KW1, SC1, YA, C4 or special required.
8,Keying: KA(Keyed Alike), KD (Keyed Diffrent), MSK (Master Key), CSK(Construction Keying);
9,Door thickness: Fit doors 35mm (1-3 / 8") to 50mm (2") thick, easy to install.

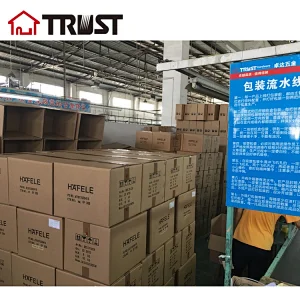

10,Pack: WBX (White Plain Box) ; CBX (Colorful Box) ; or VP (Clam Shell) .
11,Door Prep:Cross bore 2-1/8”(54mm),Edge bore 1”(25mm),latch face 1”x2-1/4”(25x57mm)
