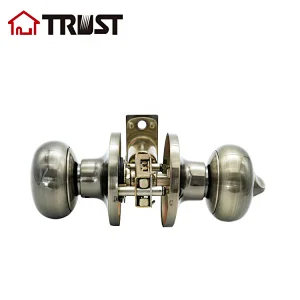

TRUST 6351-AB ANSI Grade 3 Antique Brass Knob Lock Tubular Lock

• Function:1-Entrance, 2-Privacy, 3-Passage, Dummy are available..
• Finish:SS, SB, SP, PB, AC, AB, CP, RB, BN, WH or required.
• Material:Solid brass or stainless steel construction, meet ANSI Grade 3.
• Door Thickness:Fit doors 35mm(1-3/8") to 50mm(2") thick, easy to install.

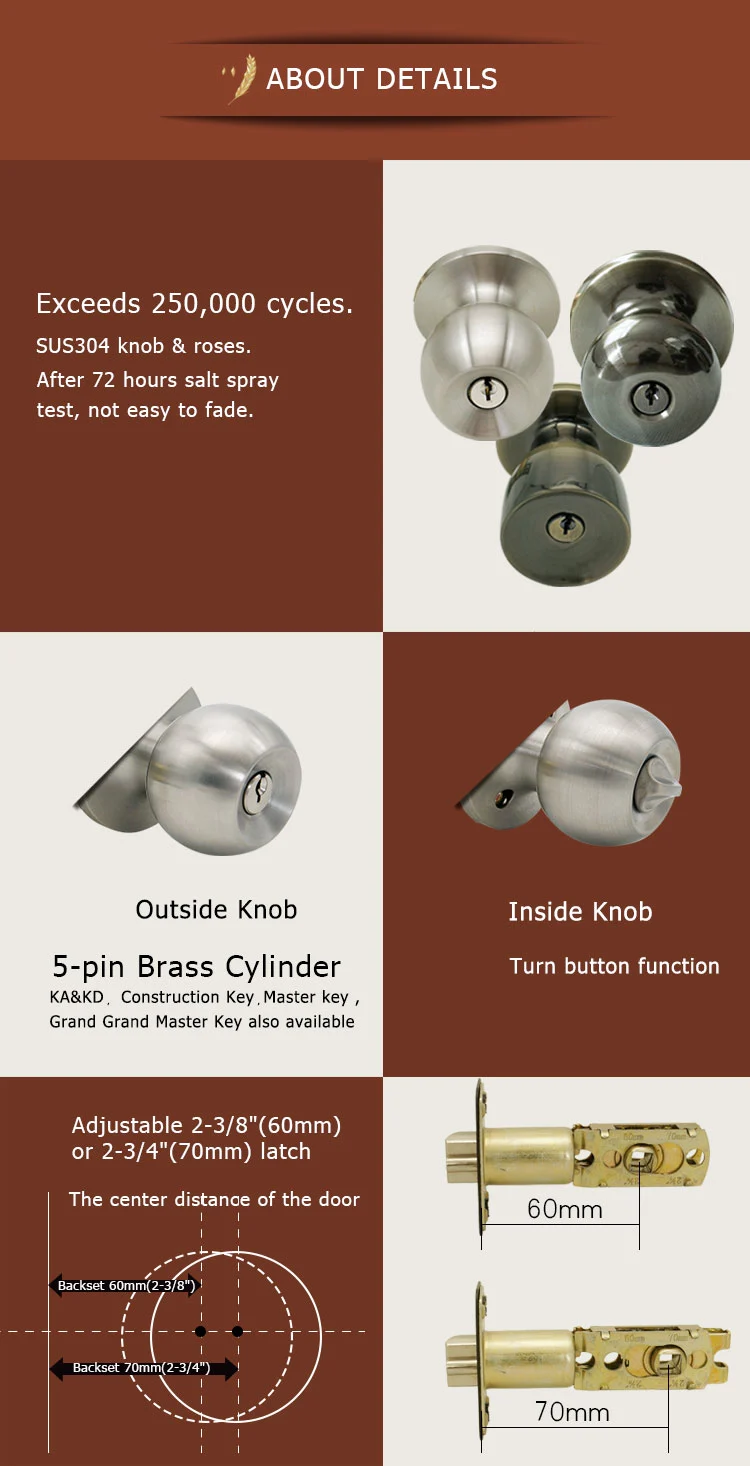

• Backset:Adjustable 2-3/8"(60mm) or 2-3/4"(70mm).
• Rosette:Small Rose(65mm) as standard, M(70mm) & L(75mm) also available.
• Cylinder:5-pin or 6-pin removable core
• Keyway:SC C or KW or Ya or computer or other optional

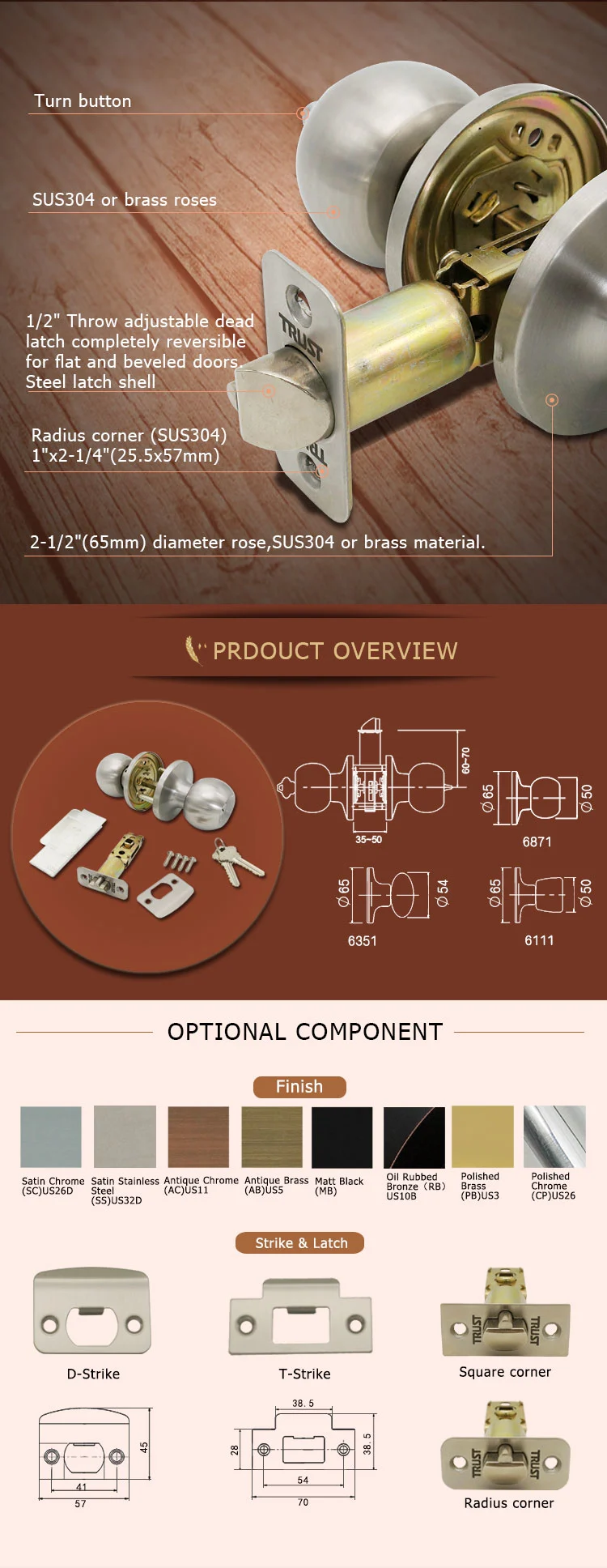

• Strike:D-shape 1-3/4"*2-1/4"(44*57mm)Squared,Radius corner also available
• Package:color box ; white pain box; bliter card; window color box
• Place of Origin:CN;GUA
• Brand Name:TRUST
• Model Number:6351-AB
• Certification:ANSI grade 3

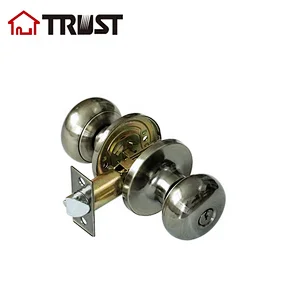

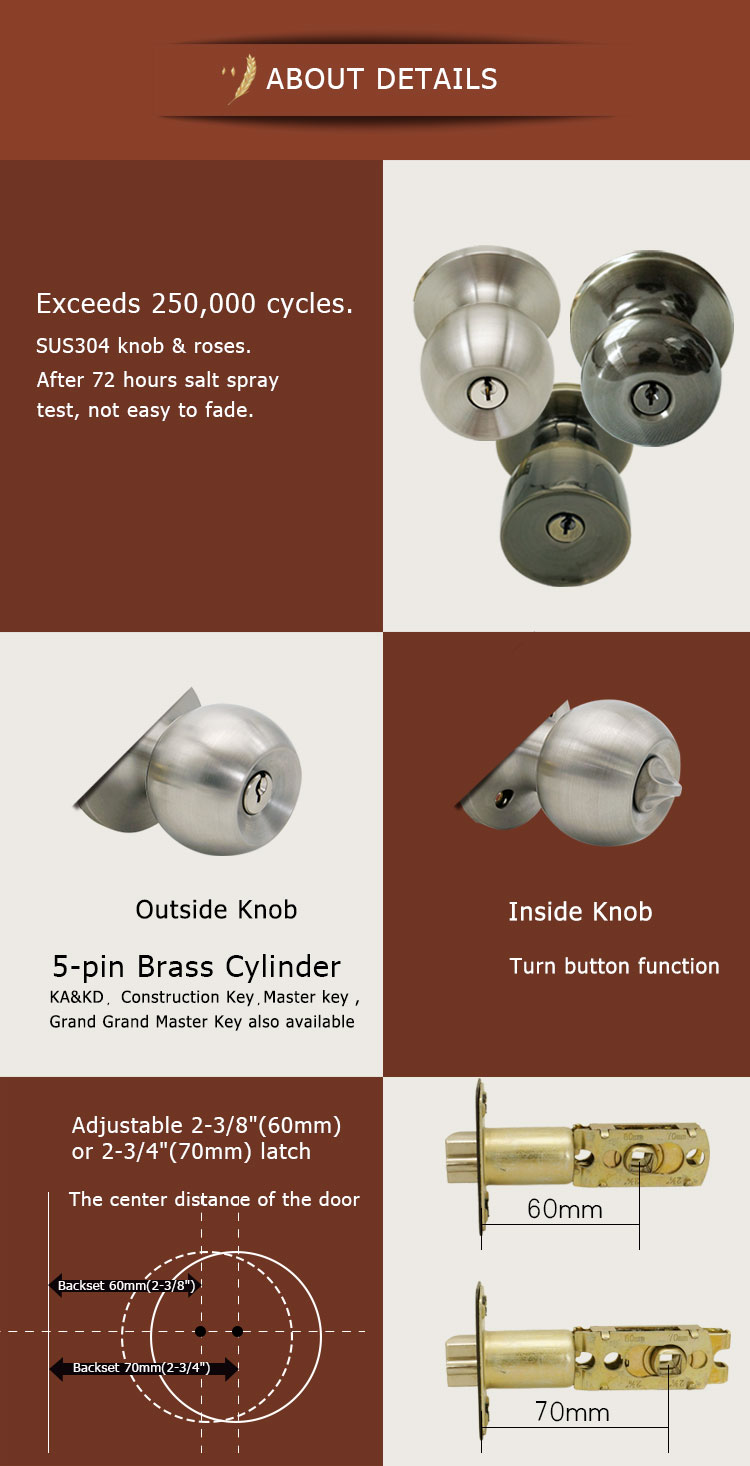

TRUST 6871 SS-ET: ANSI Grade 3 Tubular Knob Lock with Brass cylinder

Square-Drive Spindle

Special design for standard duty

Meets with ANSI A156.2 Grade 3,Exceeds 200,000 cycles

1,Structure: 304 stainless steel or Solid brass construction.

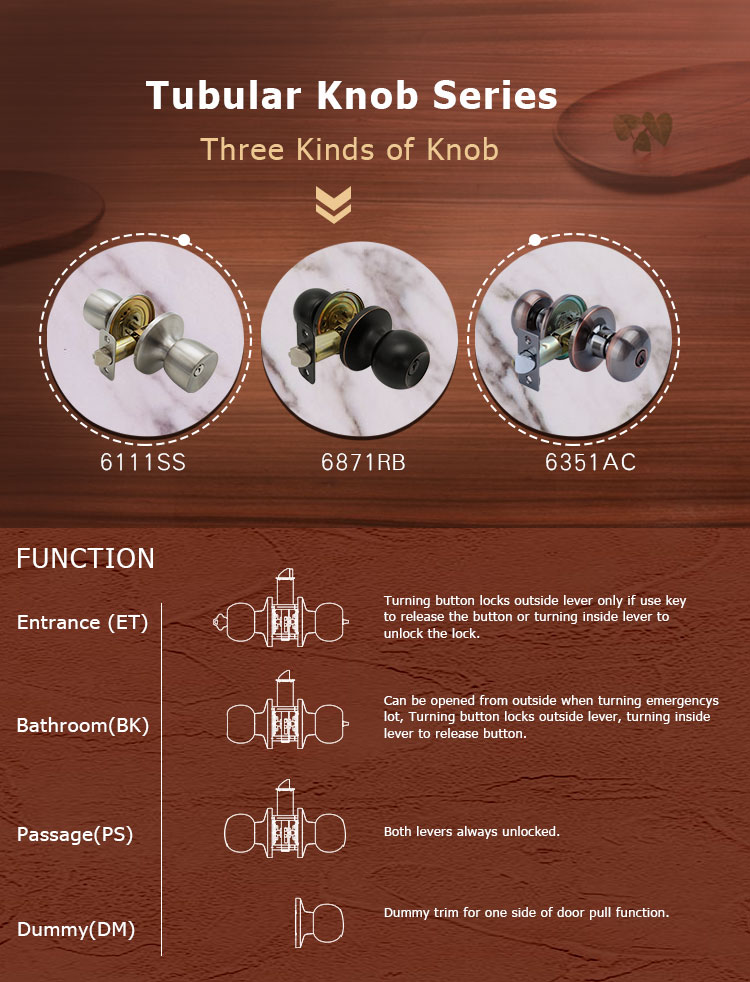

2,Function: 1-Entrance, 2-Privacy, 3-Passage, 4-Storeroom, 5-Classroom, 0-Dummy are available.

3,Knob Style: 6 different knob styles available to meet customer´s need.

4,Finish: SS, PSS, PB, SB, AC, AB, CP, PVD, US15A, or required.

5,Latch bolt: 60mm (2-3 / 8") ~70mm (2-3 / 4") Adjustable latch as standard; Drive-in or 6 Way latch also available as request;

6,Rosette: Small Rose (65mm) as standard, M (70mm) & L (75mm) also available.

7,Keyway: KW1, SC1, Ya, C4 or special required.

8,Keying: KA(Keyed Alike), KD (Keyed Diffrent), MSK (Master Key), CSK(Construction Keying);

9,Door thickness: Fit doors 35mm (1-3 / 8") to 50mm (2") thick, easy to install.

10,Pack: WBX (White Plain Box) ; CBX (Colorful Box) ; or VP (Clam Shell) .

11,Door Prep:Cross bore 2-1/8”(54mm),Edge bore 1”(25mm),latch face 1”x2-1/4”(25x57mm)
