- Function:ET, (BK, PS, DM, ST.CL. CM)
- Finish:SS/US32D, PB/US3, CP/US26, SC/US26D,
- Key:KW1 (SC1, C4, YA)
- Latch:Adjustable 2-3/8"(60mm)or 2-3/4"(70mm)
- Cylinder:5- pin removable core
- Door thickness:Fit DOORS 1-3/8"(35mm) to 2"(50mm) thick
- Application:RH/LH reversible
- Faceplate:Square corner (25x57mm) standard or radius corner
- Spindle:Square Drive Spindle
- Place of Origin:CN;GUA
- Brand Name:TRUST

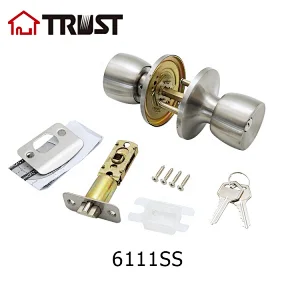

- Model Number:6111-SS
- Certification:ANSI Grade 3

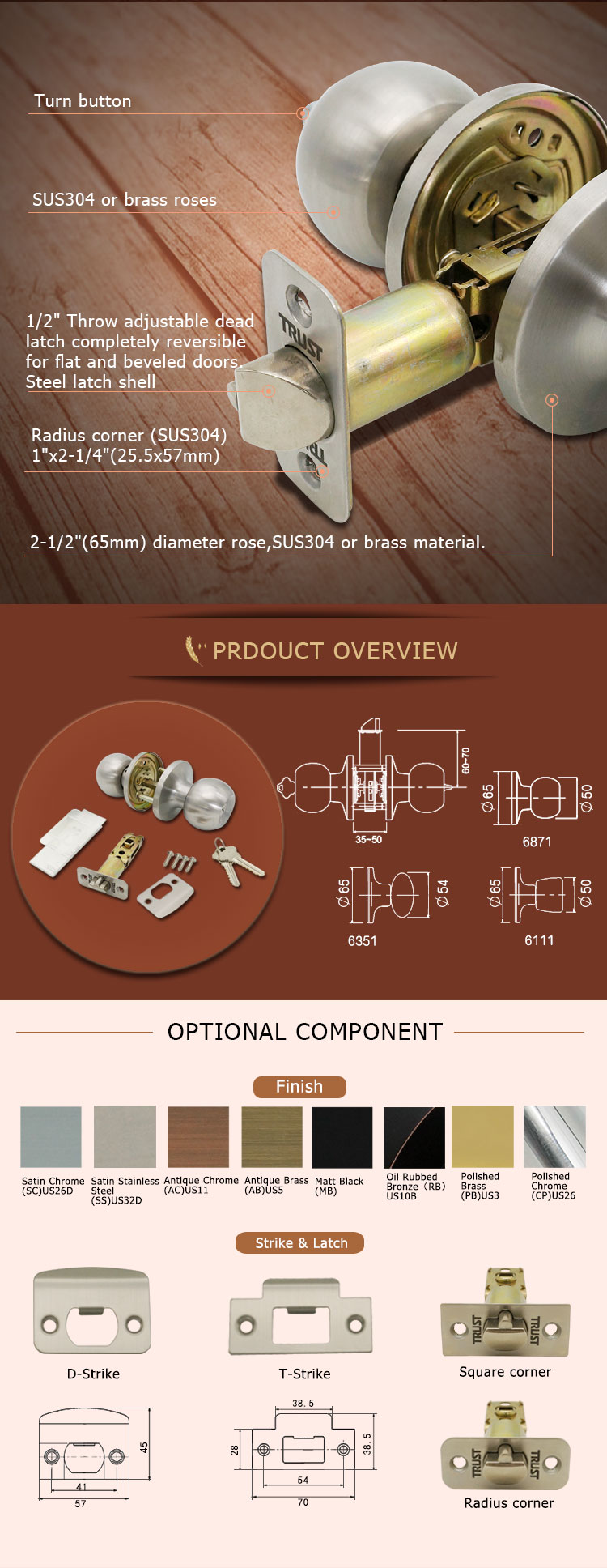

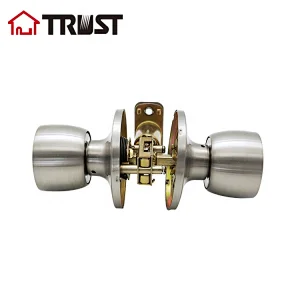

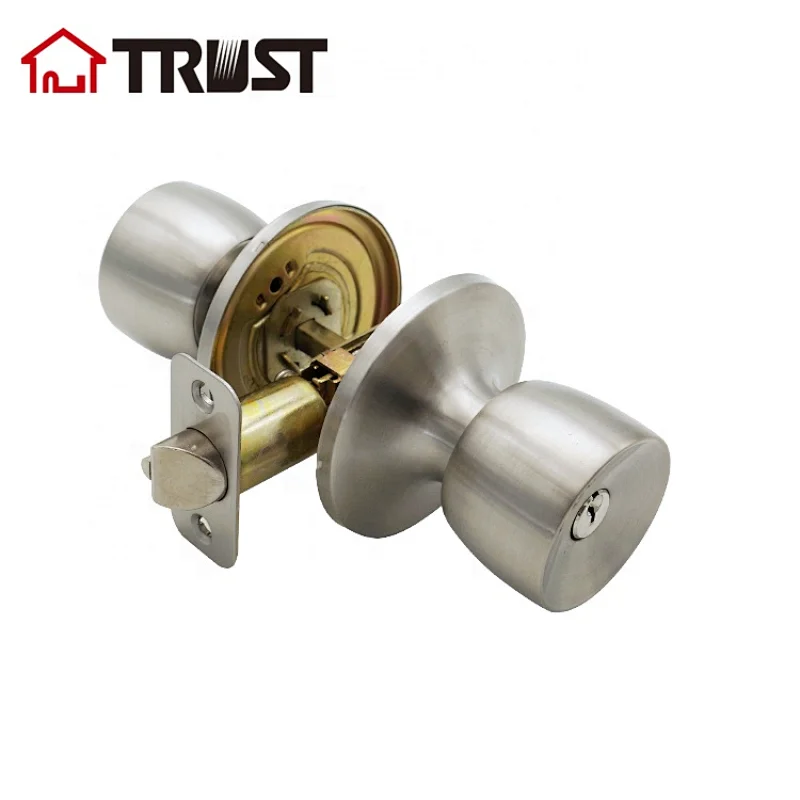

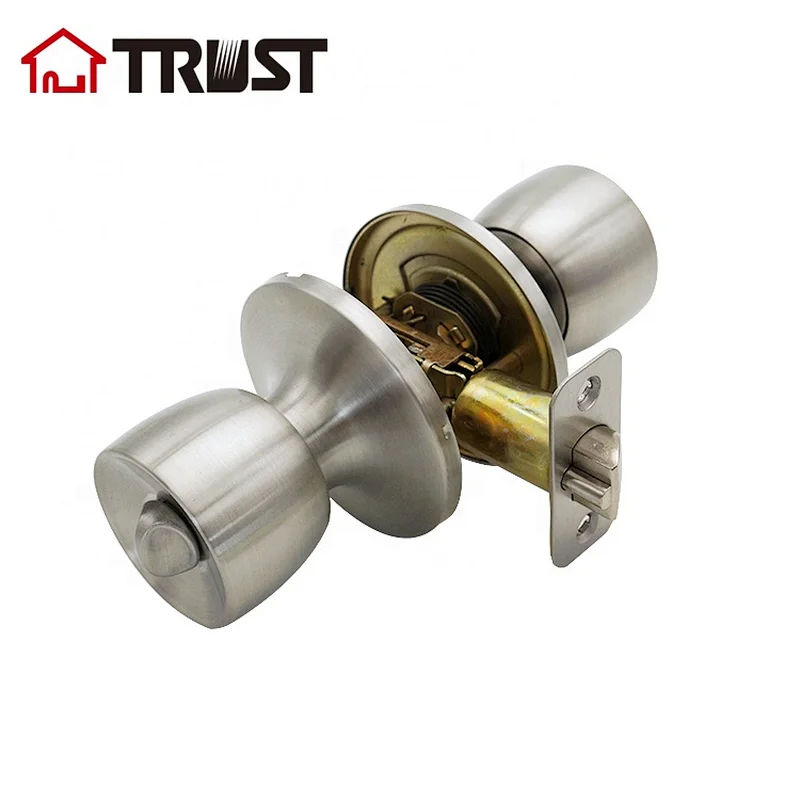

TRUST 6871 SS-ET: ANSI Grade 3 Tubular Knob Lock with Brass cylinder
Special design for standard duty
Meets with ANSI A156.2 Grade 3,Exceeds 200,000 cycles
1,Structure: 304 stainless steel or Solid brass construction.

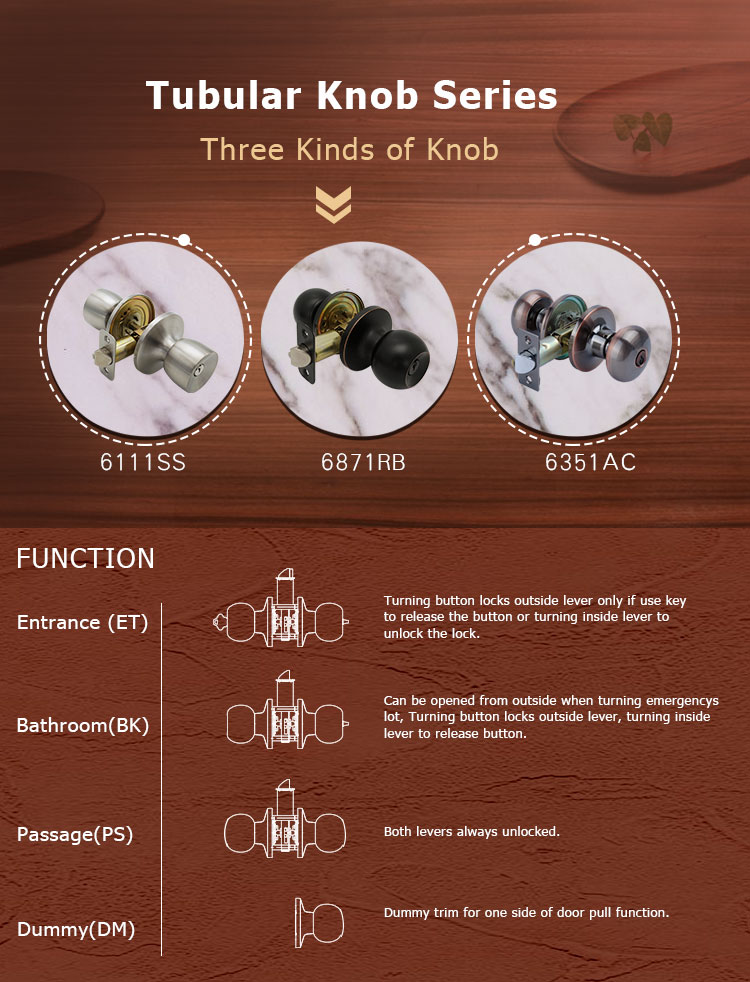

2,Function: 1-Entrance, 2-Privacy, 3-Passage, 4-Storeroom, 5-Classroom, 0-Dummy are available.
3,Knob Style: 6 different knob styles available to meet customer´s need.
4,Finish: SS, PSS, PB, SB, AC, AB, CP, PVD, US15A, or required.

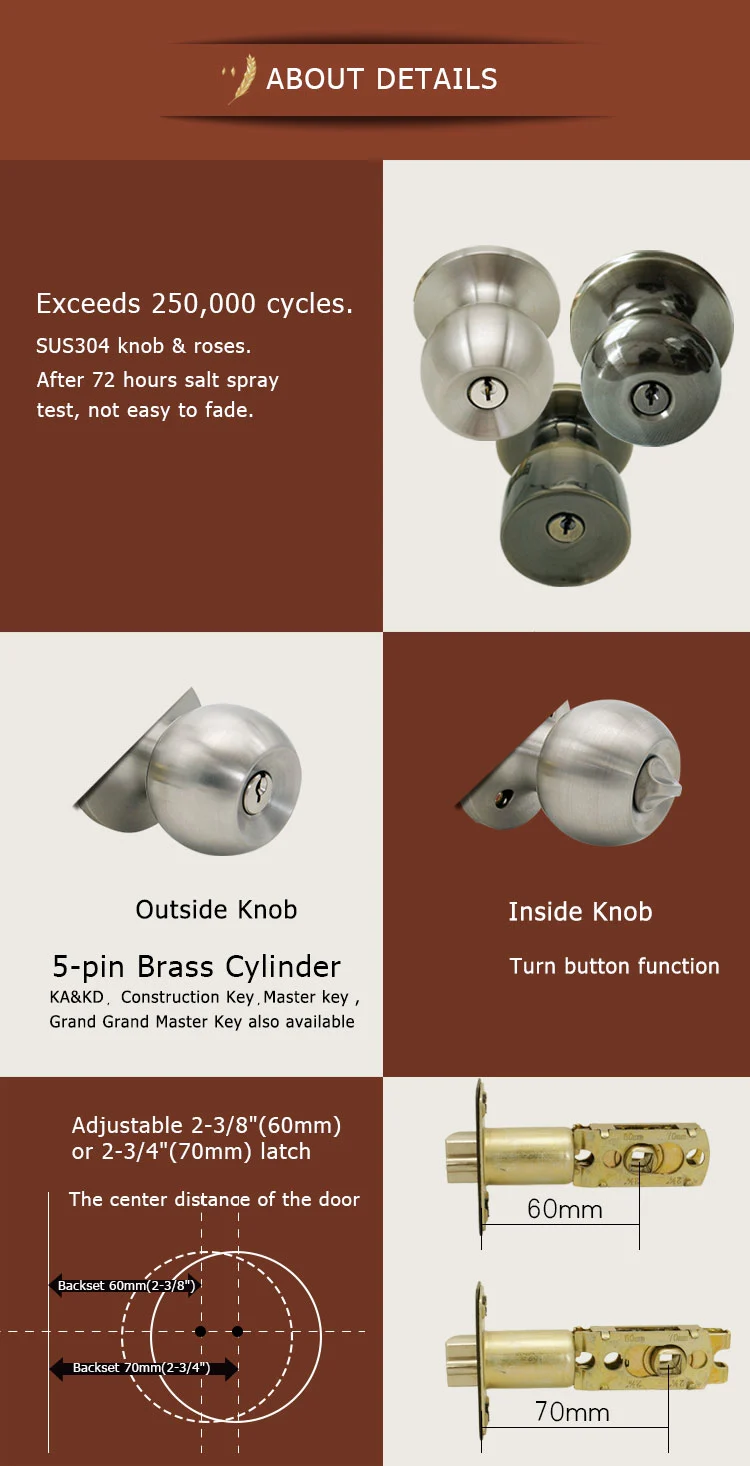

5,Latch bolt: 60mm (2-3 / 8") ~70mm (2-3 / 4") Adjustable latch as standard; Drive-in or 6 Way latch also available as request;
6,Rosette: Small Rose (65mm) as standard, M (70mm) & L (75mm) also available.
7,Keyway: KW1, SC1, Ya, C4 or special required.
8,Keying: KA(Keyed Alike), KD (Keyed Diffrent), MSK (Master Key), CSK(Construction Keying);
9,Door thickness: Fit doors 35mm (1-3 / 8") to 50mm (2") thick, easy to install.
10,Pack: WBX (White Plain Box) ; CBX (Colorful Box) ; or VP (Clam Shell) .
11,Door Prep:Cross bore 2-1/8”(54mm),Edge bore 1”(25mm),latch face 1”x2-1/4”(25x57mm)
