- Material:Zinc Alloy
- Type:Grade 2 Heavy Duty Commercial Door Lock
- Function:ET,BK,PS,ST,CL,HT,DM
- Finish:SN/US15, SC/US26D, AB/US5, AC/US11, CP/US26, PB/US3, RB/US10B,
- Keyway:SC1, KW1,Ya,C4 optional
- Backset:2-3/4"(70mm) standard .2-3/8"(60mm) optional
- Latch:1/2"throw dead latch and spring latch
- Cylinder:6-pin removable core
- Quality:ANSI Grade 2
- Door thickness:Fit DOORS 1-3/8"(35mm) to1-3/4"(45mm) thick
- Place of Origin:CN;GUA
- Brand Name:TRUST
- Model Number:4492-MB
- Certification:ANSI GRADE 2
Product Description

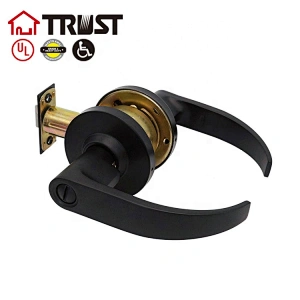

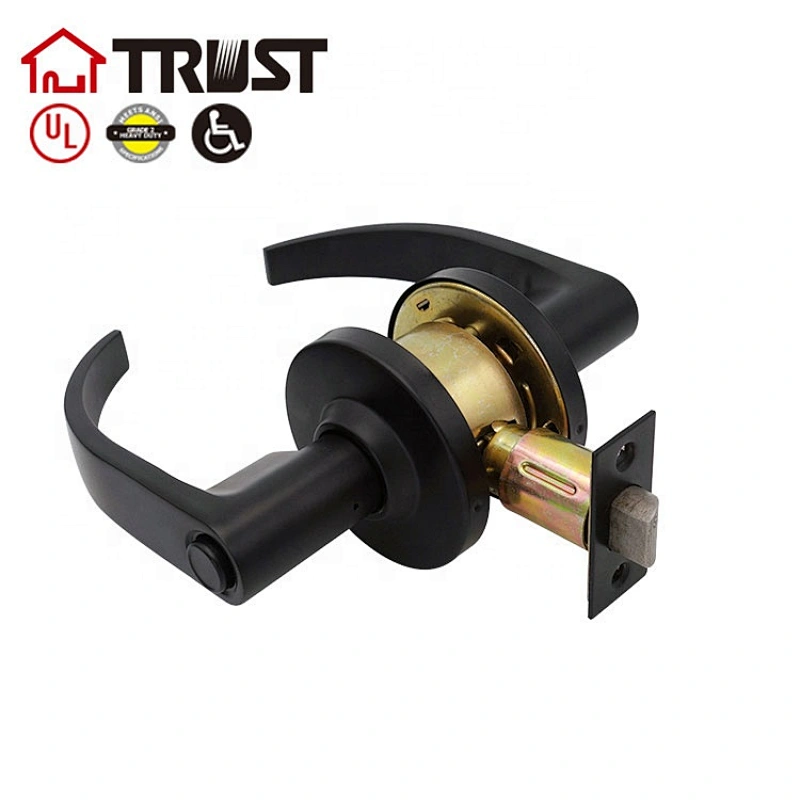

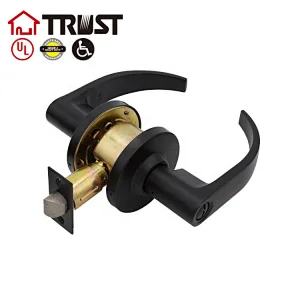

Grade 2 Commercial Building Door Lock

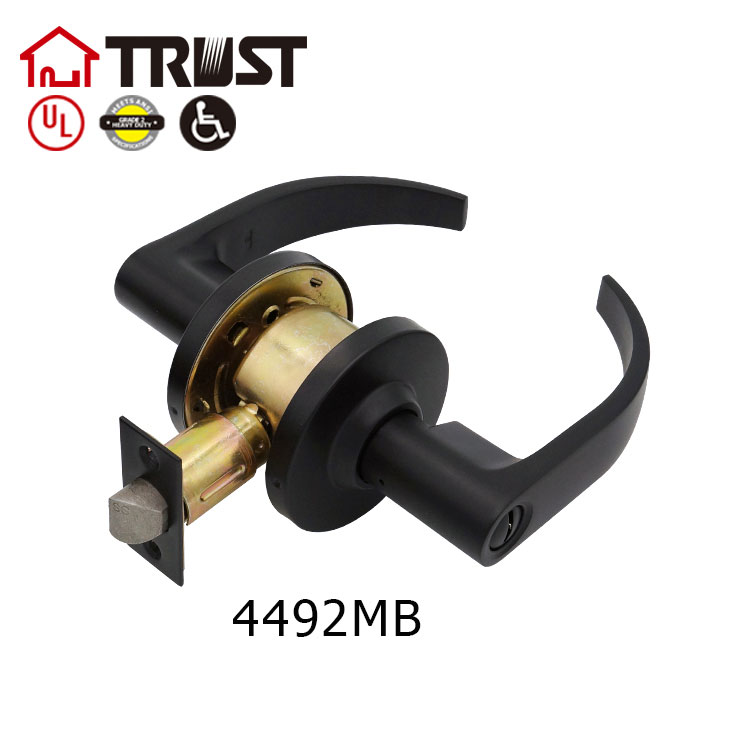

Item:4492 MB-BK

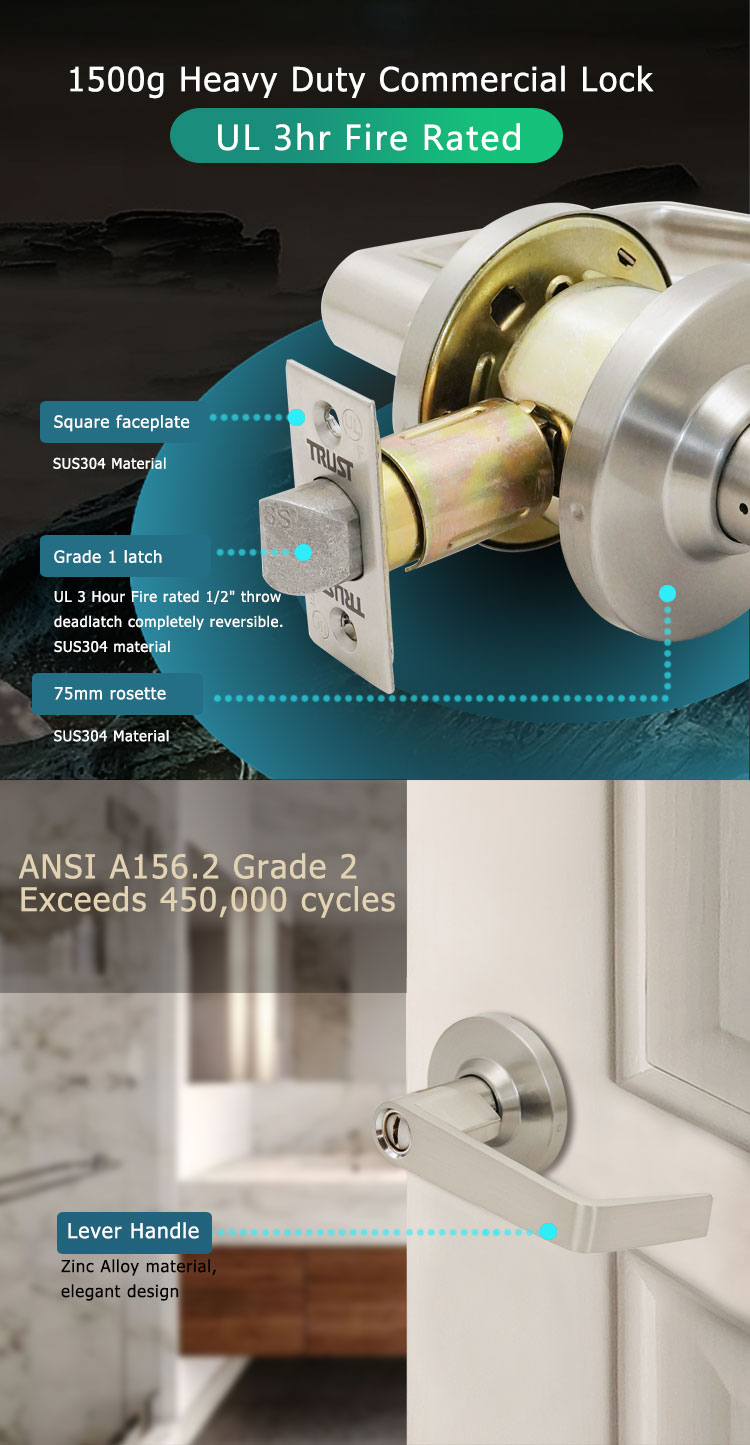

Heavy duty commercial type

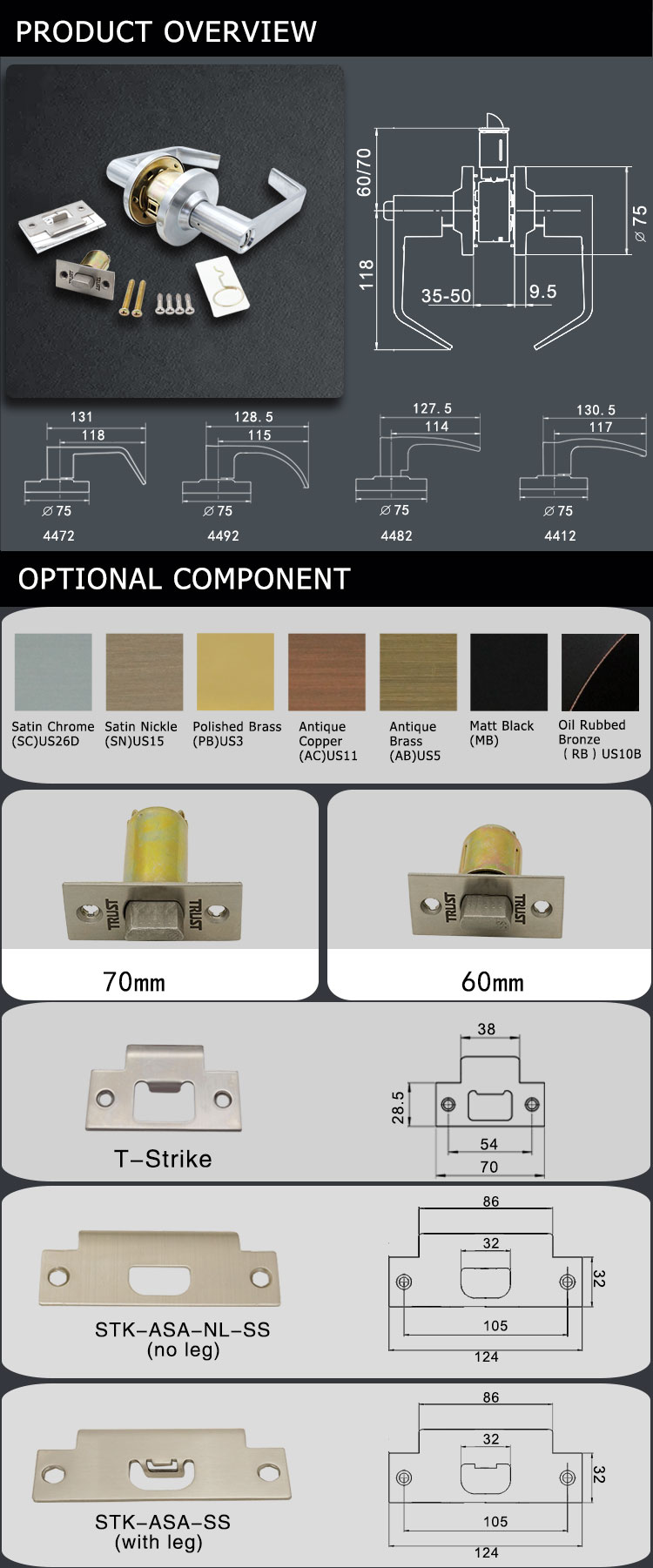

| *Door Prep | Cross bore 2-1/8"(54mm),Edge bore1"(25mm),Latch face 1"x2-1/4"(25x57mm) |
| *Door Thick | 1-3/8"(35mm) to 2"(50mm) thickness doors as standard. |
| *Backset | 2-3/4"(70mm) as standard;2-3/8"(60mm) optional. |

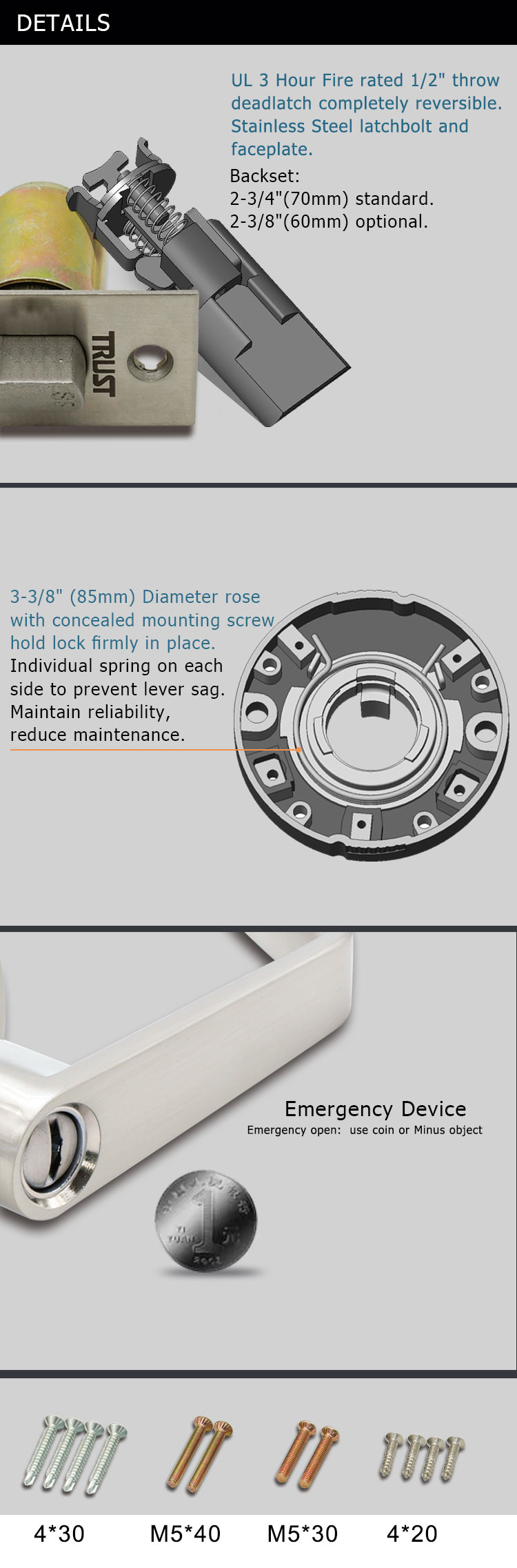

| *Latch | 1/2"throw dead latch and spring latch |
| *Cylinder | 6-pin removable core,SC1 or KW1 or YA or C4 keyway and other optional. |
| *Faceplate | Square corner 1"x2-1/4"(25x57mm) standard. |
| *Strike | T-Shape 1-3/4"x2-3/4"(44x70mm)Square corner standard. |
| *Finishing | SS(US32D),SP(US32),PB(US3),SC(US26D) and other optional. |
| *Function | ET(Entrance),BK(Privacy),PS(Passage),ST(Storeroom),CL(Classroom), HT(Hotel),DM(Dummy) |
| Lock type | Building Door Lock |

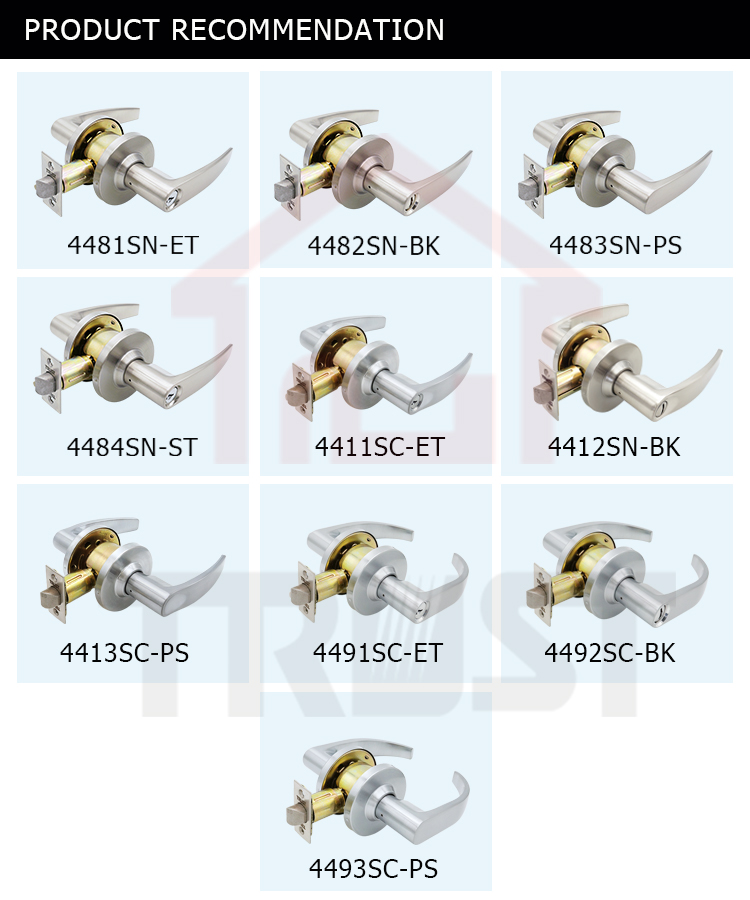

Related Product

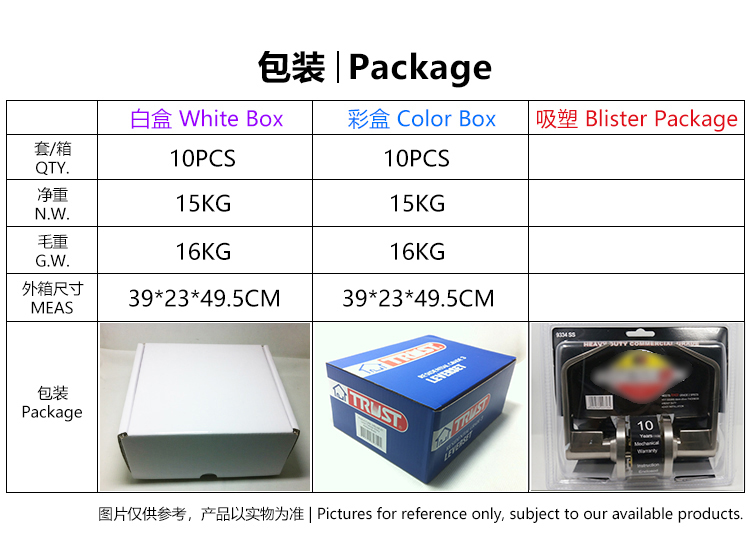

Packaging & Shipping
Certifications

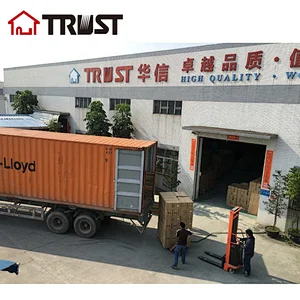

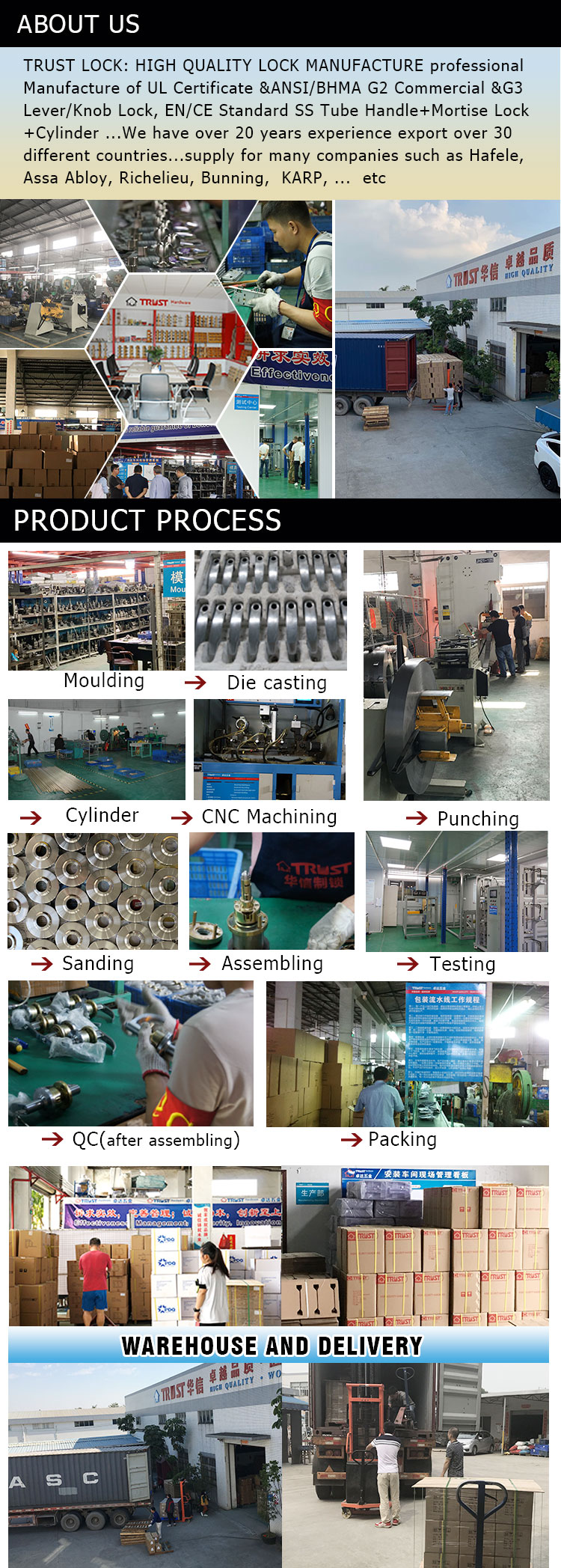

Company Information
FAQ

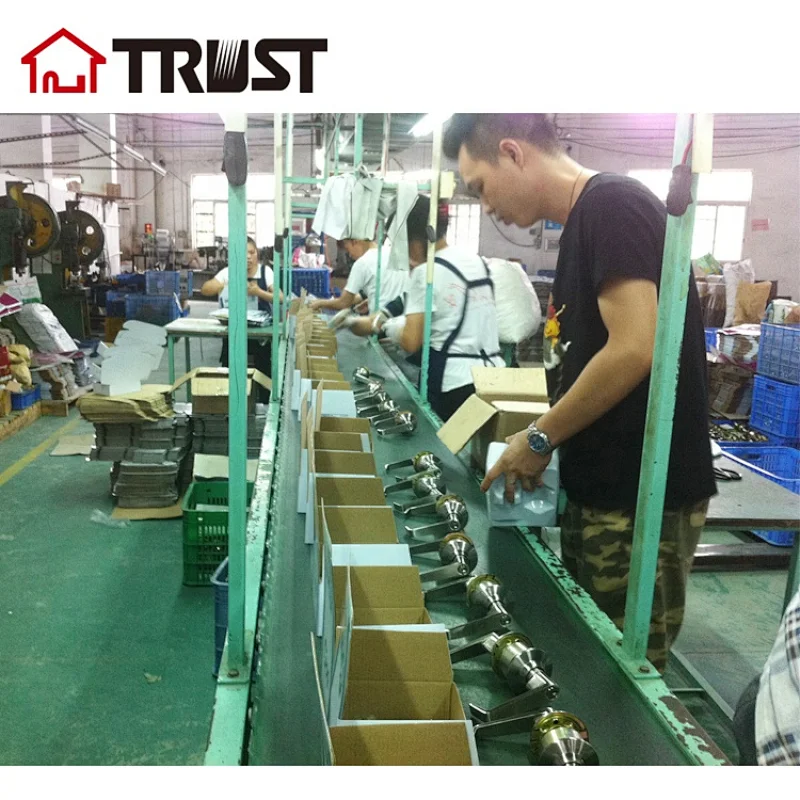

1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Bodyand other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.
4 :Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude for the first time.
