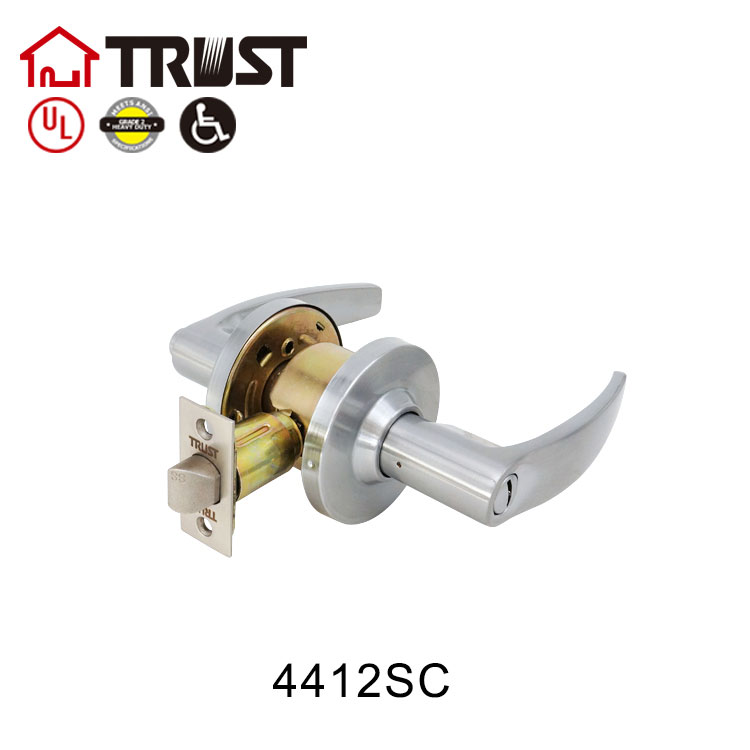

TRUST 4412-SC Heavy Duty Grade 2 Commercial Cylindrical Bathroom Lever in Satin Chrome

US StandardANSI Grade 2 Heavy Duty Commercial Door Lock 4412

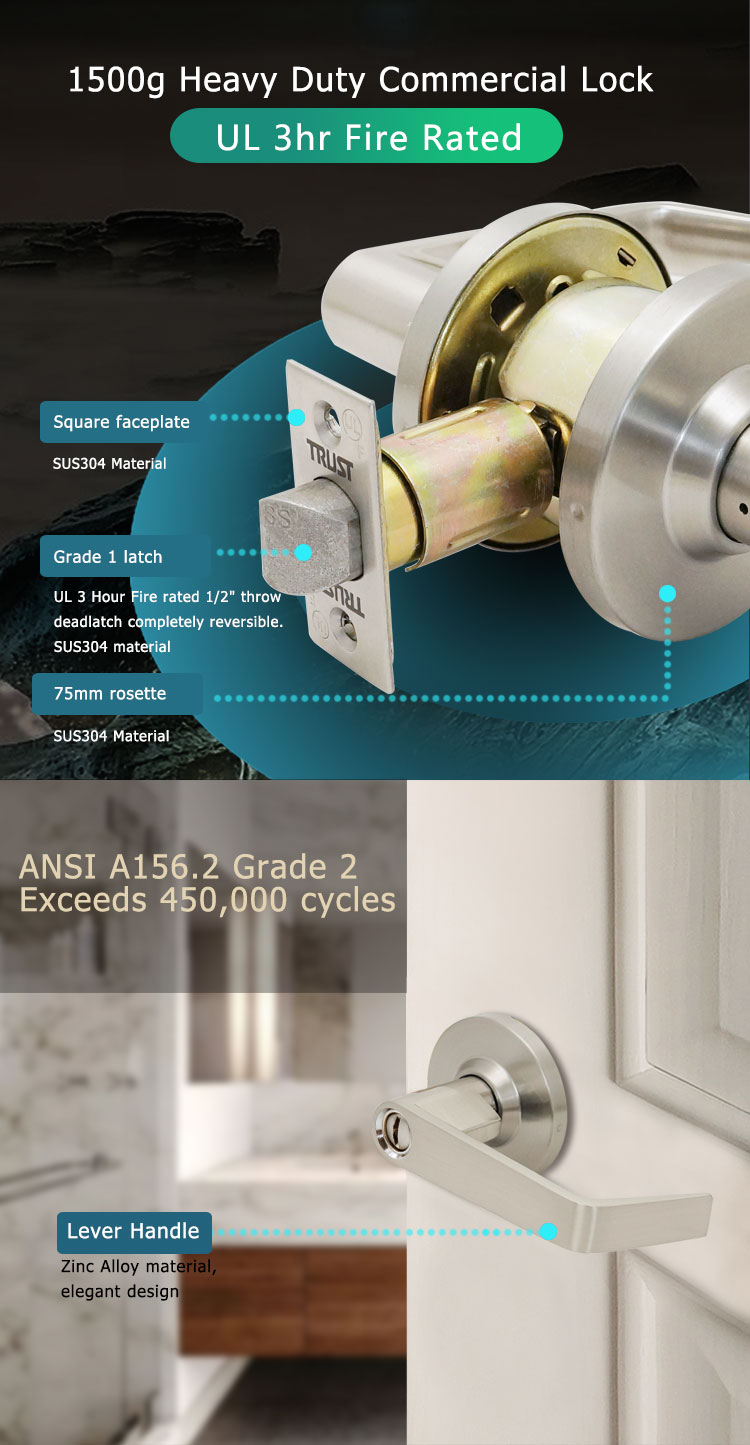

**Heavy duty commercial Lever Lock-Meets with ANSI A156.2 Grade 2 Exceeds 400,000 Cycles.

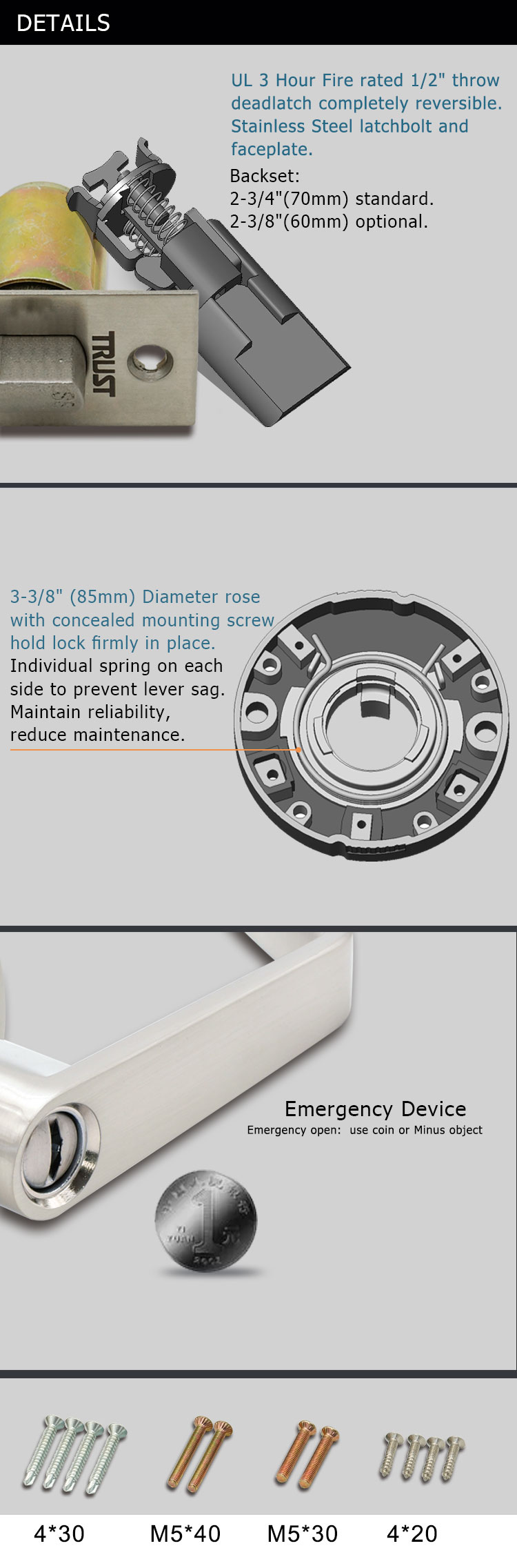

**High Security Level: Thru bolts are provided and recommended for use in high security doors.

1. Cylinder Solid Brass 5 or 6 pin tumbler Removable & rekeyable cylinder

2. Knob/Rosette 304 SS or solid brass , Knob 54mm Diam, Rosette 75mm Diam;

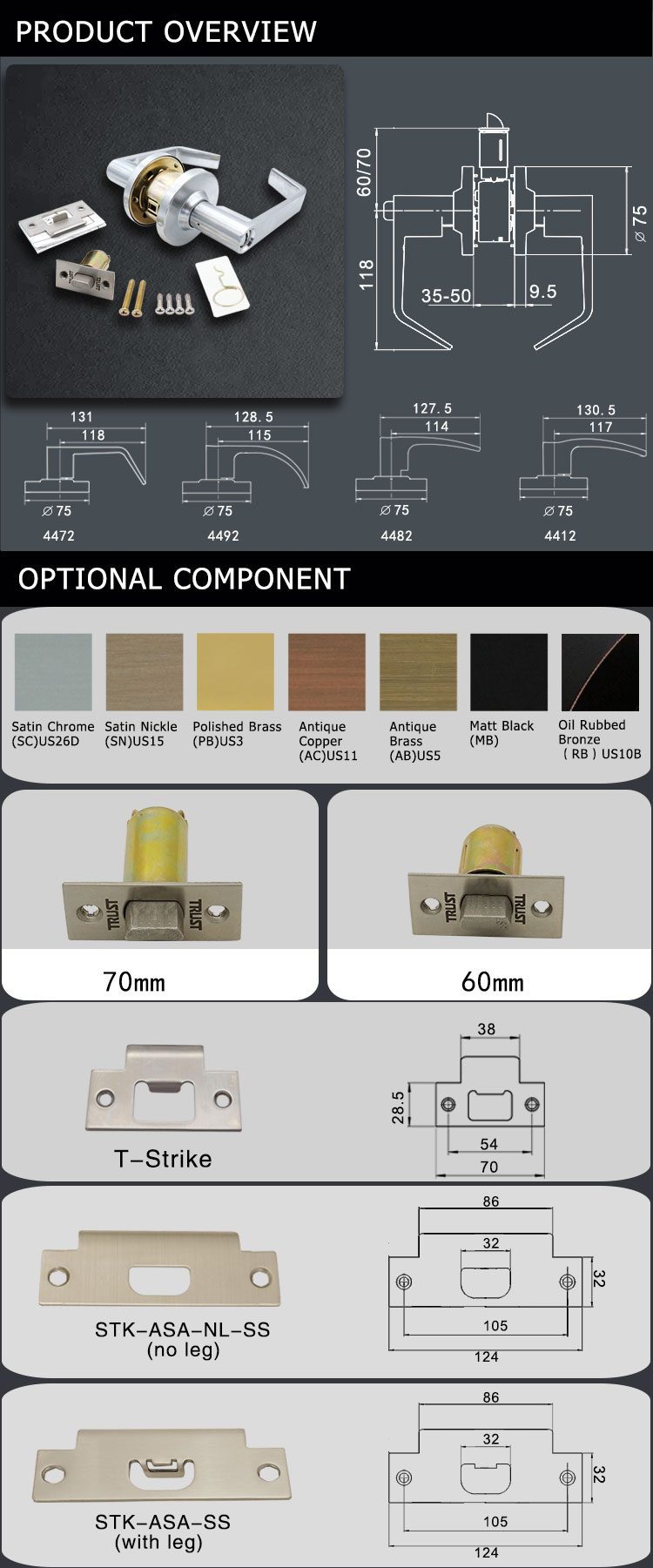

3. Latch: 304SS material tongue & Faceplate; 70mm(2-3/4") as standard; 60mm is optional;
4. Faceplate: Square corner, standard (LxW): 1"X 2-1/4"(25*57*1.5mm), 1-1/8"X 2-1/4"( 28.6*57*1.5mm) as optional.

5. Strike:

• heavy gauge T"Shape strike plate LxW: 70x28mm (standard) 2-3/4"(70mm) x 28mmx1.6mm,304SS material.
• Optional ASA strike 4-7/8"(123.8mm) x 1 1/4"(31.7mm) x2.0mm, #430SS material.

6. Backset: 70mm(2-3/4") as standard; 60mm(2-3/8") also available.

7. Door Thick:Fit wood or metal doors from 1-3/8"(35mm) to 2"(50mm) thick as standard;

8. Finish:SS/32D, SN/15, SC/26D, RB/10B, PB/3, AB/5, CP/26 or optional

9. Keyway: SC1, KW1, Ya or C4 optional.

10. Function: ET(Entrance), BK(Privacy), PS(Passage), ST(Storeroom), CL(Classroom), CM( Communication), DM(Dummy)

11. Door Prep: Cross bore 2-1/8"(54mm),Edge bore1"(25mm),Latch face 1"x2-1/4"(25x57mm).
