- Material:Zinc Alloy & SUS304
- Type:Grade 2 Heavy Duty Commercial Door Lock
- DIA of Rose:75mm
- Function:ST (ET, BK, PS, CL, CM, HT, DM)
- Keyway:SC1 (KW1,Ya or C4 optional)
- Finish:SS/32D, SN/15, SC/26D, PB/3, RB/10B...
- Backset:2-3/4"(70mm) standard, 2-3/8"(60mm) optional
- Cylinder:6-pin removable core
- Quality:ANSI Grade 2
- Door Thickness:1-3/8"(35mm) to 2"(50mm)
- Place of Origin:CN;GUA
- Brand Name:TRUST
- Model Number:4484-SN
- Certification:ANSI GRADE 2

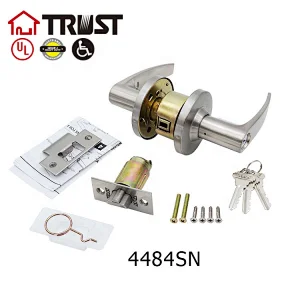

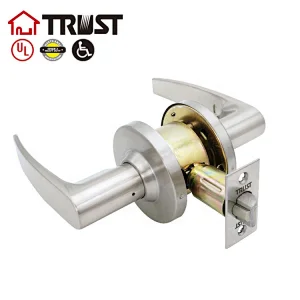

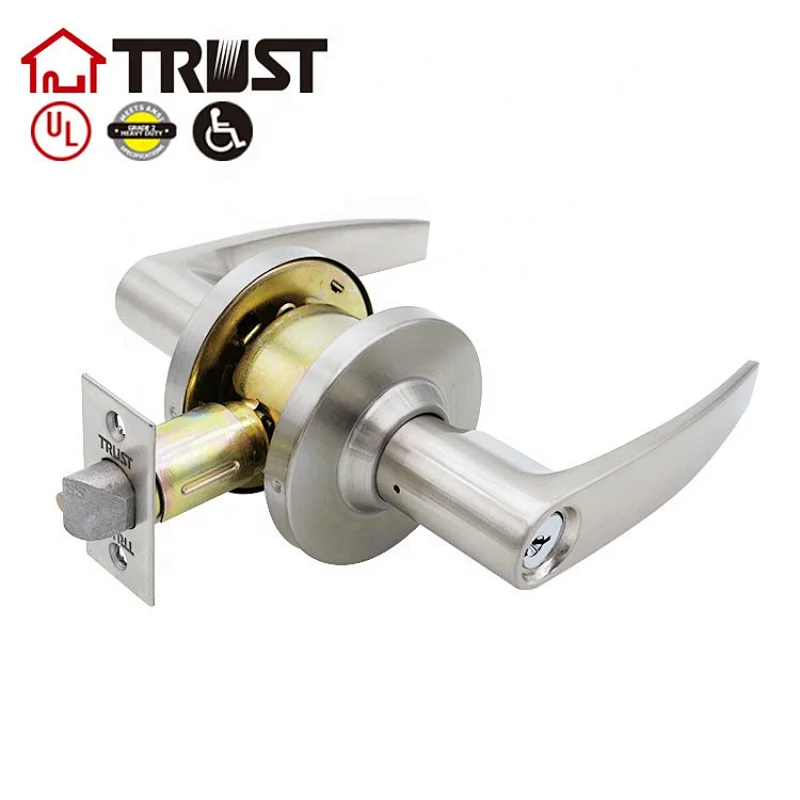

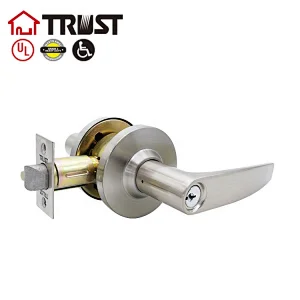

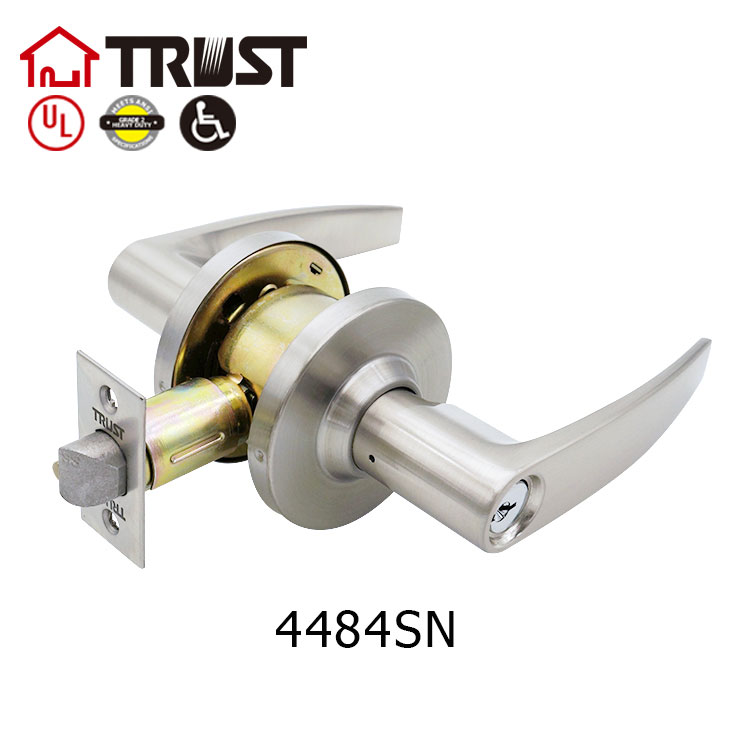

ANSI Grade 2 Heavy Duty Commercial Door Lock 4484SN

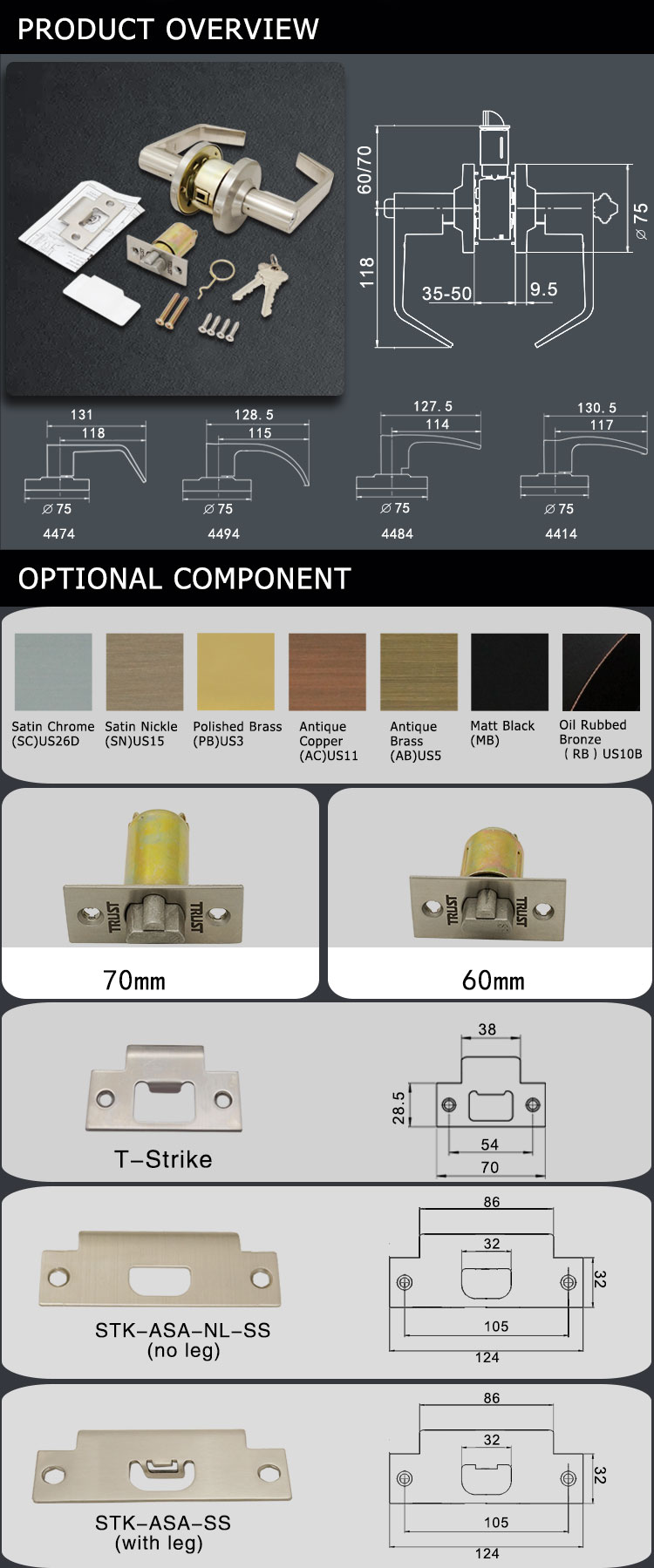

ASA STRIKE:4-7/8"X 1-1/4"( 123.8 X 31.7 X 2MM)
1,Cylinder Solid Brass 6 pin tumbler Removable & rekeyable cylinder
2,Knob/Rosette 304 SS or solid brass , Knob 54mm Diam, Rosette 75mm Diam;
3,Latch:304SS material tongue & Faceplate; 70mm(2-3/4") as standard; 60mm is optional;
4,Faceplate: Square corner, standard (LxW): 1"X 2-1/4"(25*57*1.5mm), 1-1/8"X 2-1/4"( 28.6*57*1.5mm) as optional.
5,Strike:
- heavy gauge T"Shape strike plate LxW: 70x28mm (standard) 2-3/4"(70mm) x 28mmx1.6mm,304SS material.
- Optional ASA strike 4-7/8"(123.8mm) x 1 1/4"(31.7mm) x2.0mm, #430SS material.
6,Backset: 70mm(2-3/4") as standard; 60mm(2-3/8") also available.
7,Door Thick:Fit wood or metal doors from 1-3/8"(35mm) to 2"(50mm) thick as standard;
8,Finish: SS/32D, SN/15, PB/3, AB/5, CP/26, SC/26D , RB/10B, PVD or required
9,Keyway:SC1, KW1, C4
10,Function: ET(Entrance), BK(Privacy), PS(Passage), ST(Storeroom), CL(Classroom), DM(Dummy)
| *Door Prep | Cross bore 2-1/8"(54mm),Edge bore1"(25mm),Latch face 1"x2-1/4"(25x57mm) |
| *Door Thick | 1-3/8"(35mm) to 2"(50mm) thickness doors as standard. |

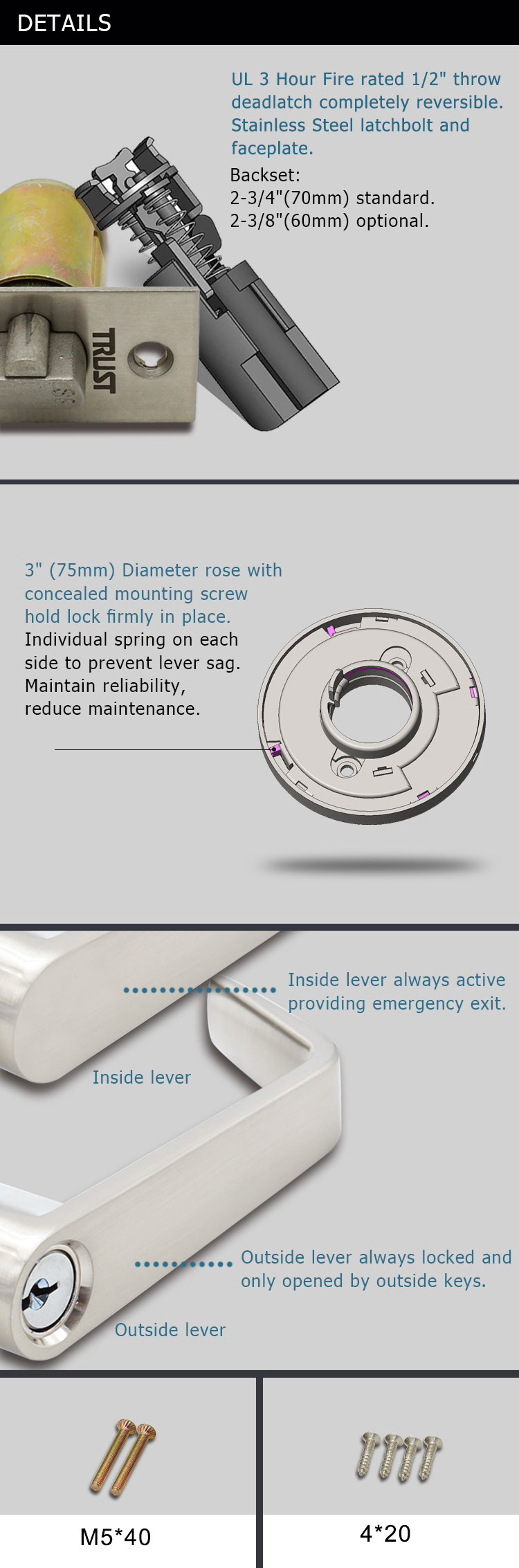

| *Backset | 2-3/4"(70mm) as standard;2-3/8"(60mm) optional. |

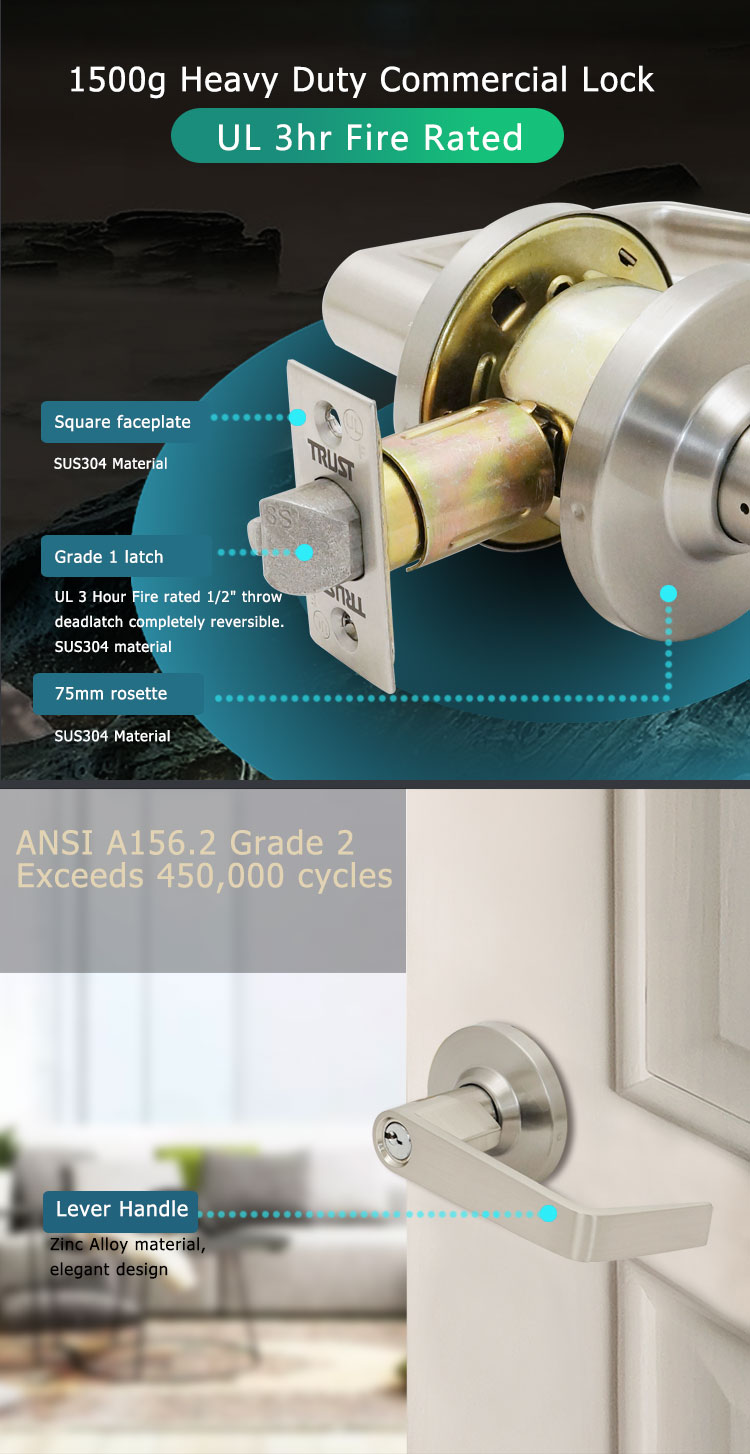

| *Latch | 1/2"throw dead latch and spring latch. |
| *Cylinder | 6-pin removable core,SC1 or KW1 or YA or C4 keyway and other optional. |
| *Faceplate | Square corner 1"x2-1/4"(25x57mm) standard. |
| *Strike | T-Shape 1-3/4"x2-3/4"(44x70mm)Square corner standard. |
| *Finishing | polished chrome Door Lock |
| *Function | ET(Entrance),BK(Privacy),PS(Passage),ST(Storeroom),CL(Classroom),HT(Hotel),DM(Dummy) |
