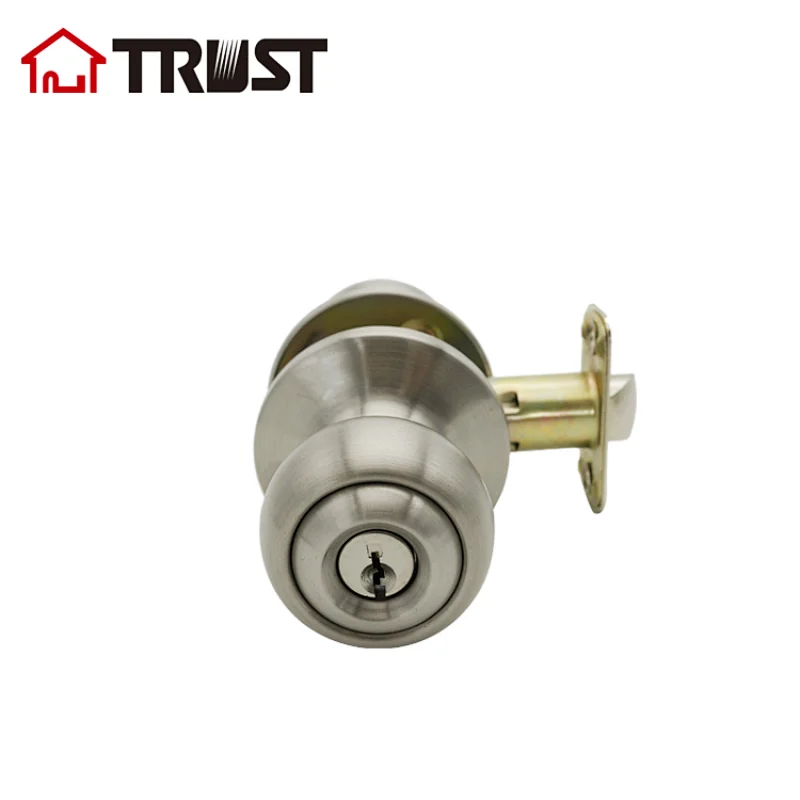

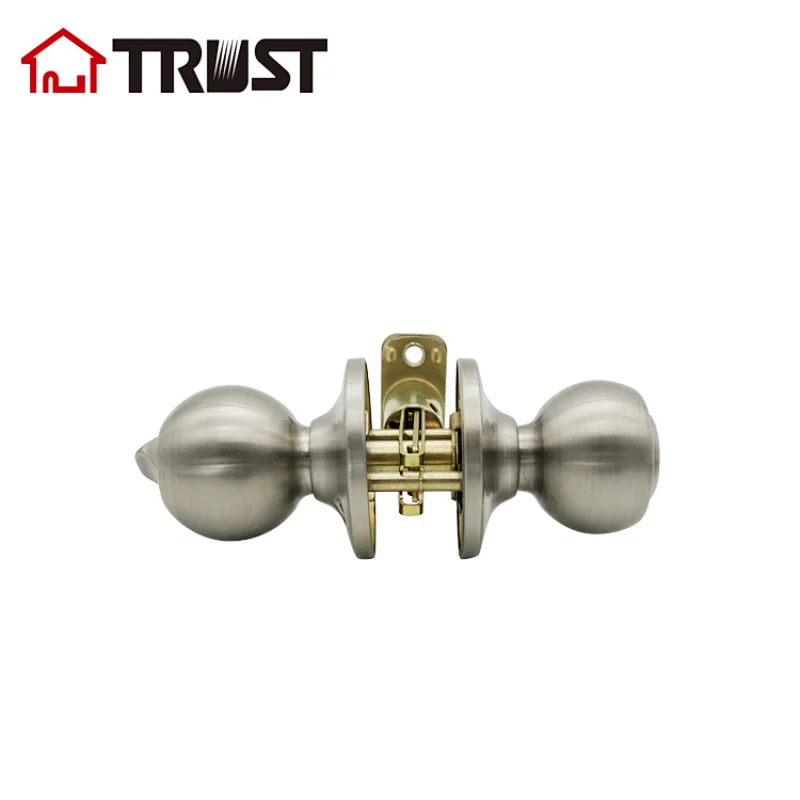

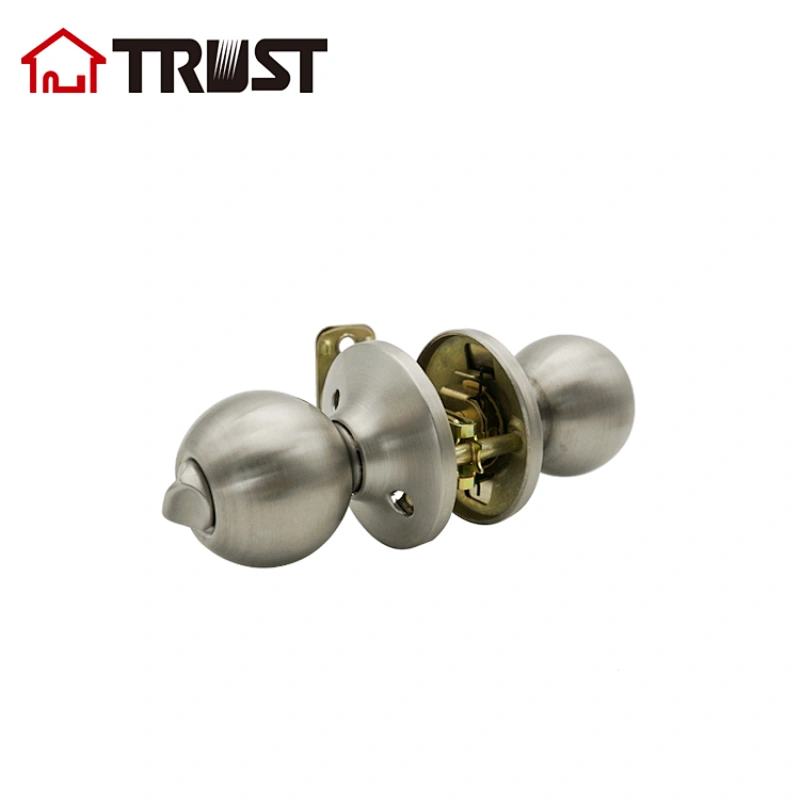

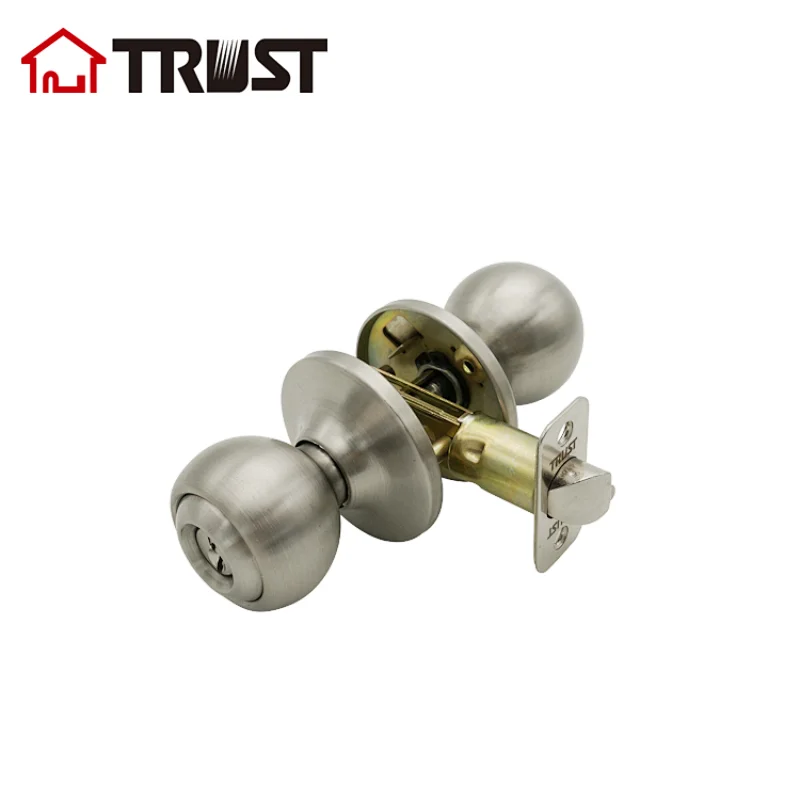

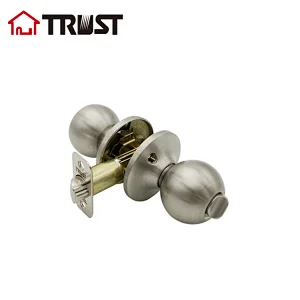

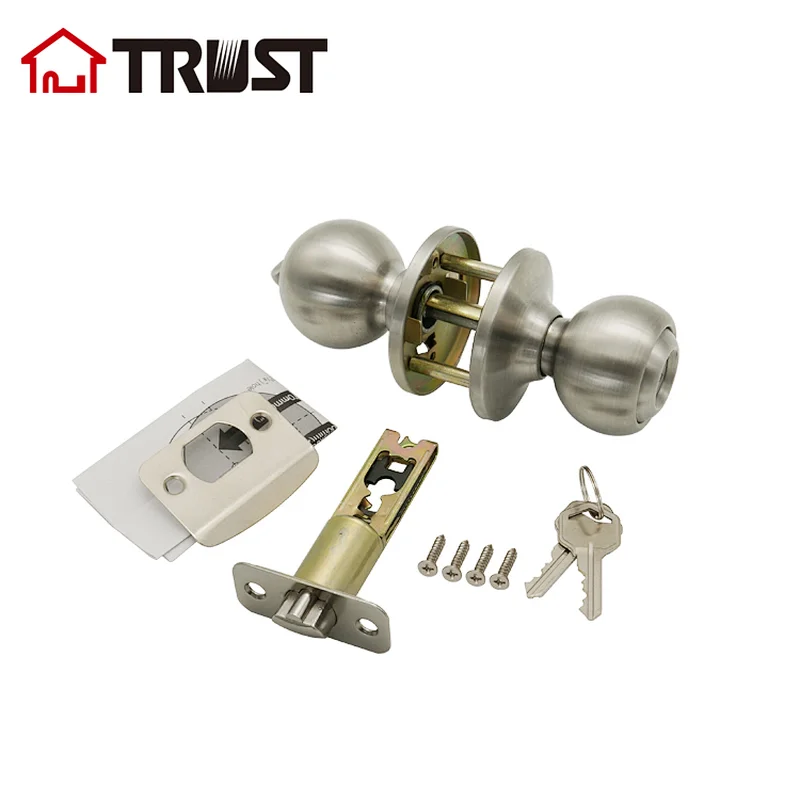

TRUST 5681SN ANSI Grade 3 Tubular Knob Door Lock Radius Drive Spindle Round Ball Lock

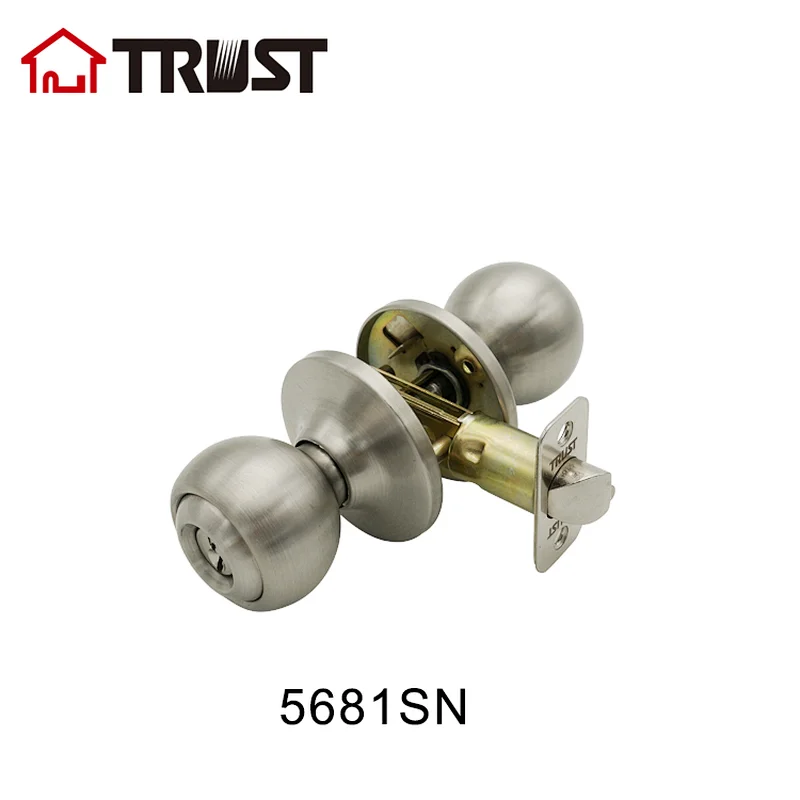

5681-SN
1000 sets
5000sets / Month
China
Quantity:


Radius-Drive Spindle

Special design for standard duty

Meets with ANSI A156.2 Grade 3,Exceeds 200,000 cycles

1,Structure: 304 stainless steel or Solid brass construction.

2,Function: 1-Entrance, 2-Privacy, 3-Passage, 4-Storeroom, 5-Classroom, 0-Dummy are available.

3,Knob Style: 6 different knob styles available to meet customer´s need.

4,Finish: SS, PSS, PB, SB, AC, AB, CP, PVD, US15A, or required.

5,Latch bolt: 60mm (2-3 / 8") ~70mm (2-3 / 4") Adjustable latch as standard; Drive-in or 6 Way latch also available as request;

6,Rosette: Small Rose (65mm) as standard

7,Keyway: KW1, SC1, Ya, C4 or special required.

8,Keying:  KA(Keyed Alike), KD (Keyed Diffrent), MSK (Master Key), CSK(Construction Keying);

9,Door thickness: Fit doors 35mm (1-3 / 8") to 50mm (2") thick, easy to install.

10,Pack: WBX (White Plain Box) ; CBX (Colorful Box) ; or VP (Clam Shell) .

11,Door Prep:Cross bore 2-1/8”(54mm),Edge bore 1”(25mm),latch face 1”x2-1/4”(25x57mm)

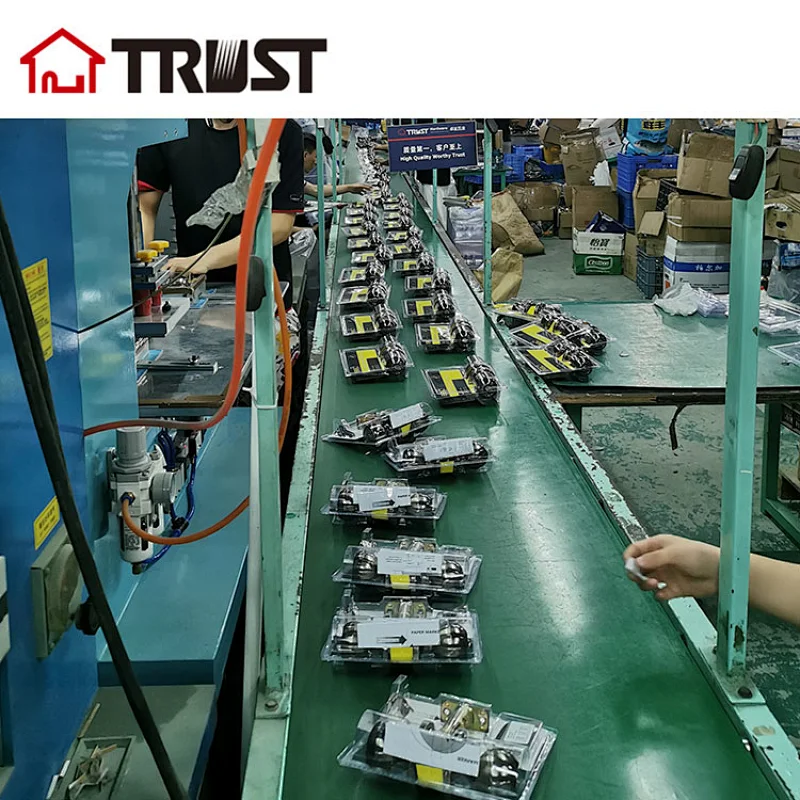

Packaging & Shipping
