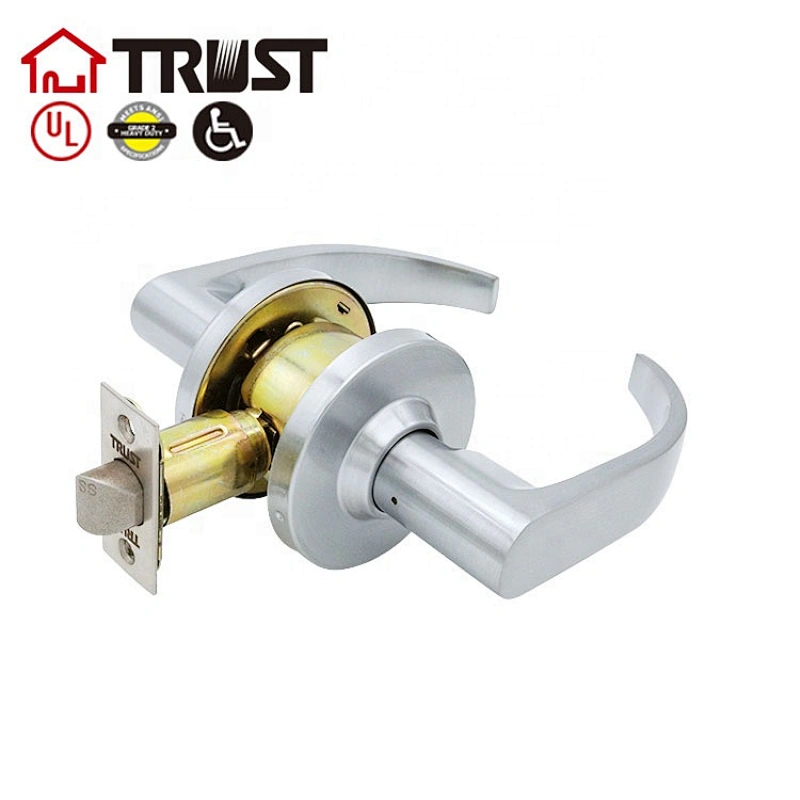

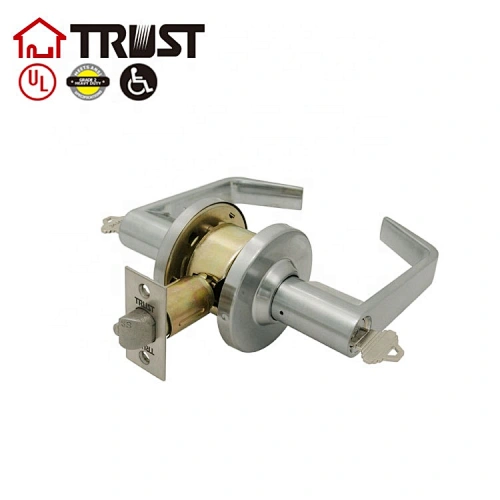

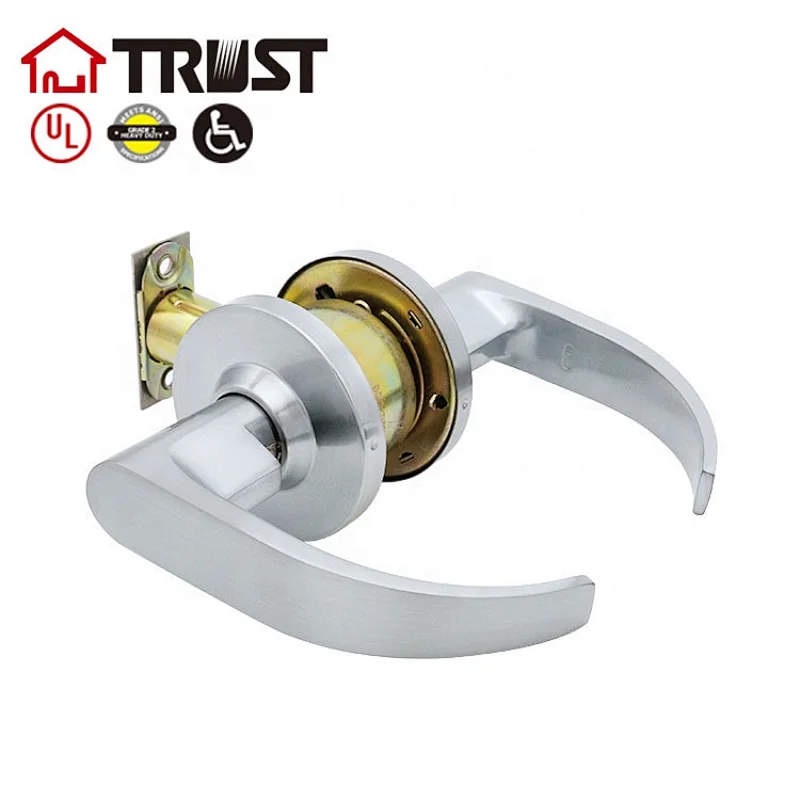

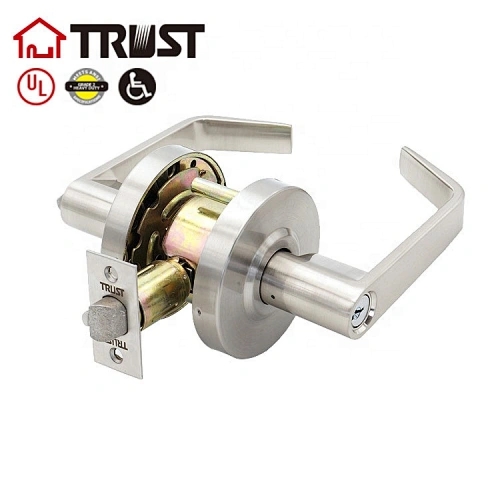

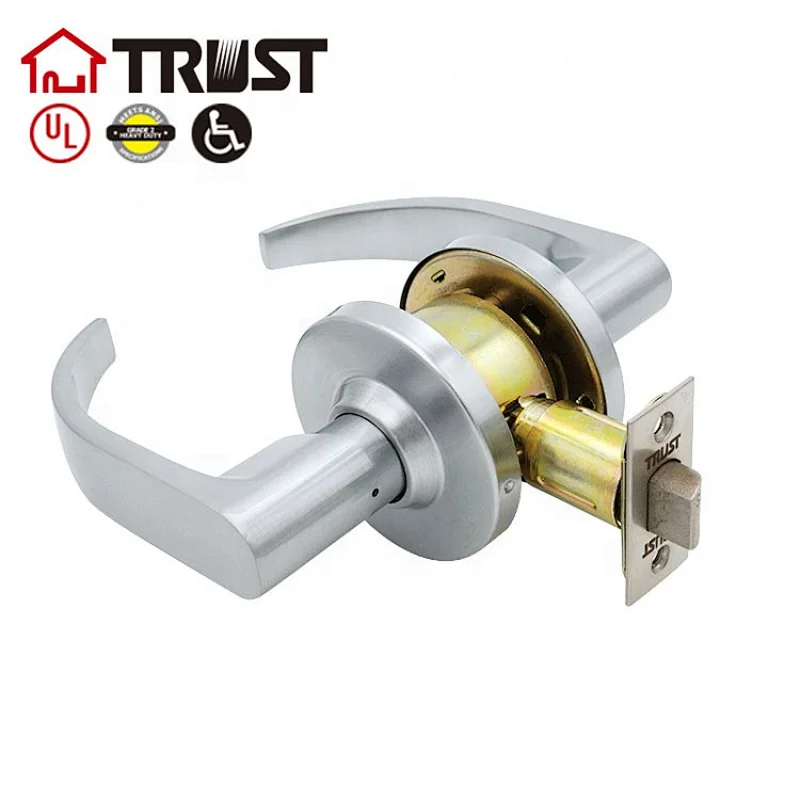

TRUST 4493-SC Commercial Heavy Duty Lever Handle Lock Key Alike Door Lever Handle Lock For Home Safe
449 3-SC-PS
FOB
Quantity:
  • Material:Zinc Alloy
  • Type:Grade 2 Heavy Duty Commercial Door Lock
  • Function:ET,BK,PS,ST,CL,HT,DM
  • Keyway:SC1, KW1,Ya,C4 optional
  • Finish:SN/US15, SC/US26D, AB/US5, AC/US11, CP/US26, PB/US3, RB/US10B,
  • Backset:2-3/4"(70mm) standard .2-3/8"(60mm) optional
  • Latch:1/2"throw dead latch and spring latch
  • Cylinder:6-pin removable core
  • Quality:ANSI Grade 2
  • Door Thickness:Fit DOORS 1-3/8"(35mm) to2"(50mm) thick
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:449 3-SC-PS
Product Description

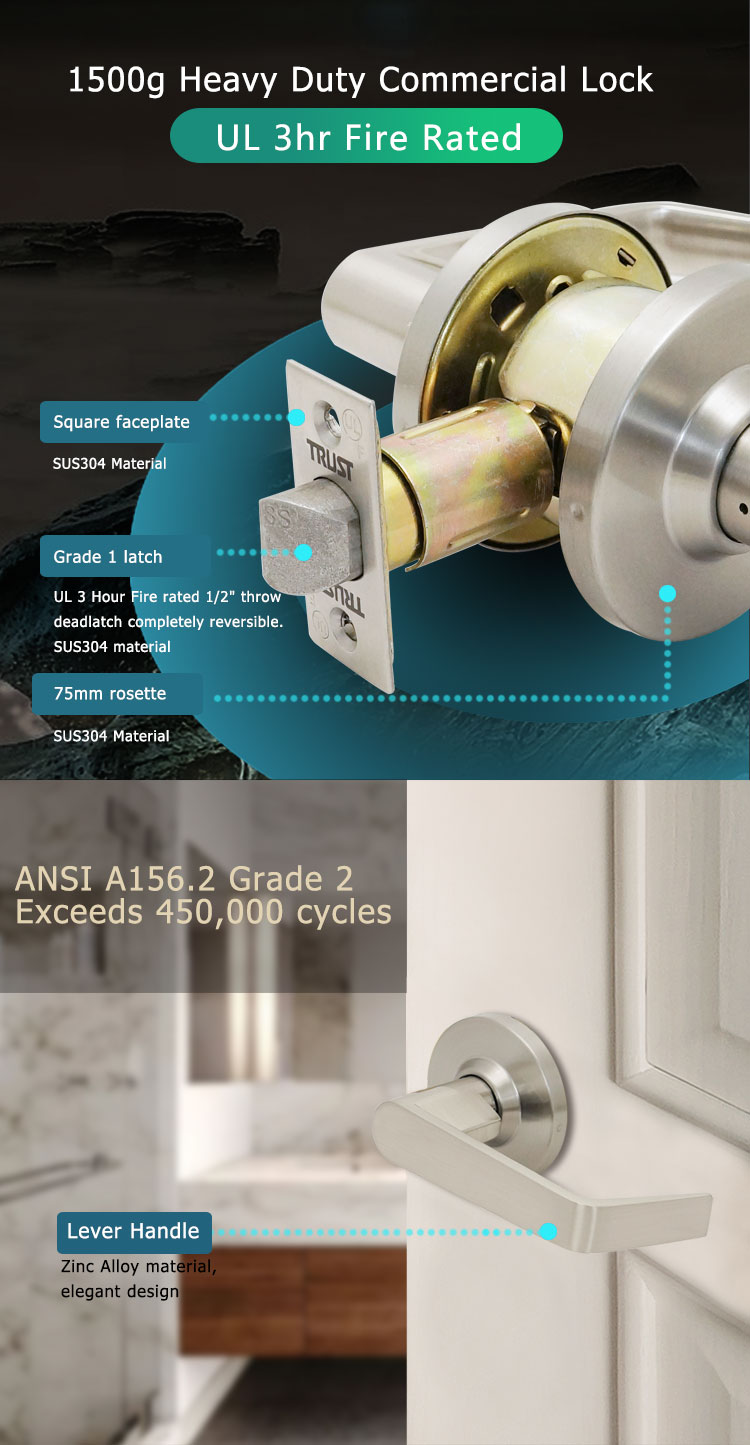

Commercial Grade 2 Door Lever lock

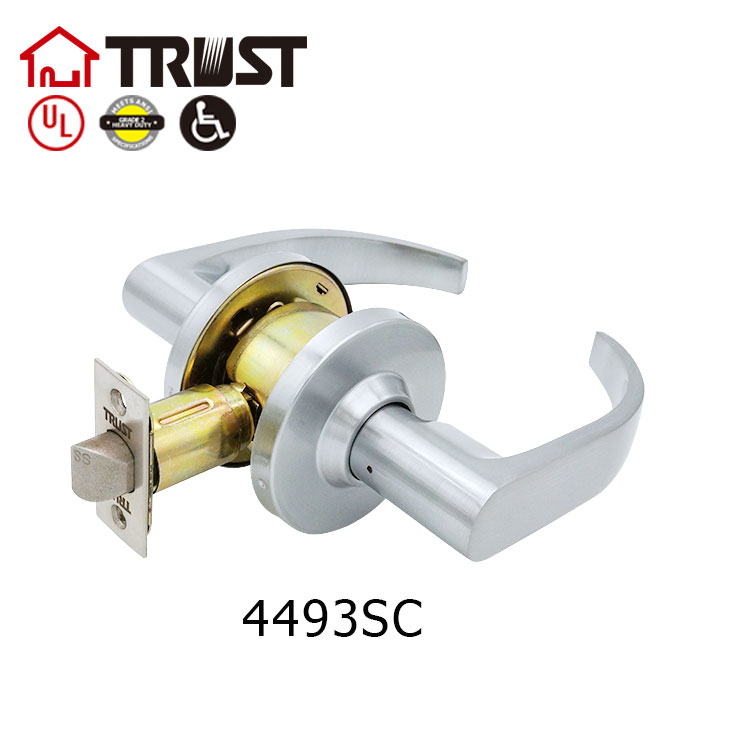

ITEM No:4493 SC-PS
-Meet with ANSI Grade 2 Exceeds 400,000 Cycles.
-High Security and Popular in America market.

-Meets ADA requirement.

-FW Free wheeling cluth design function available.

CylinderSolid Brass 6 pin tumbler Removable & rekeyable cylinder

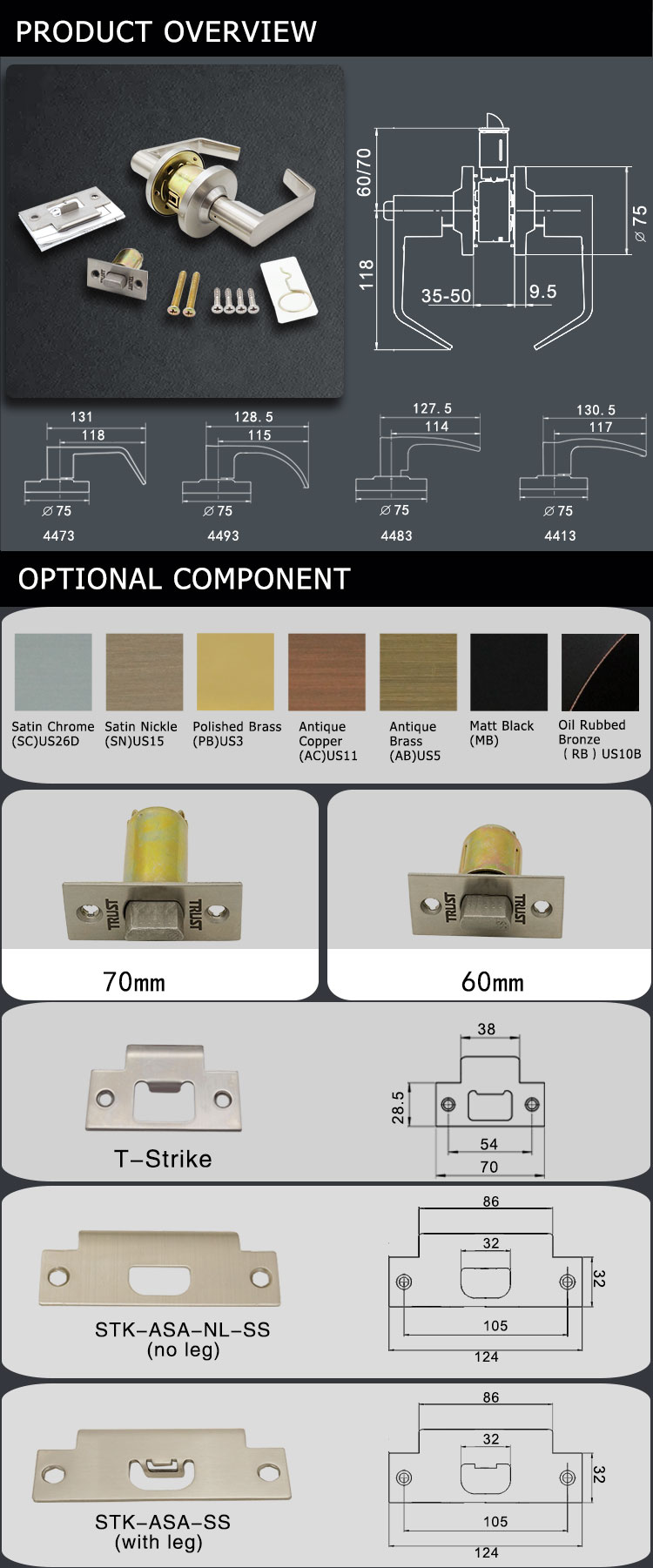

Rosette:75mm Diam as standard; 304 SS or brass material
Lever:Zinc alloy die casing material;

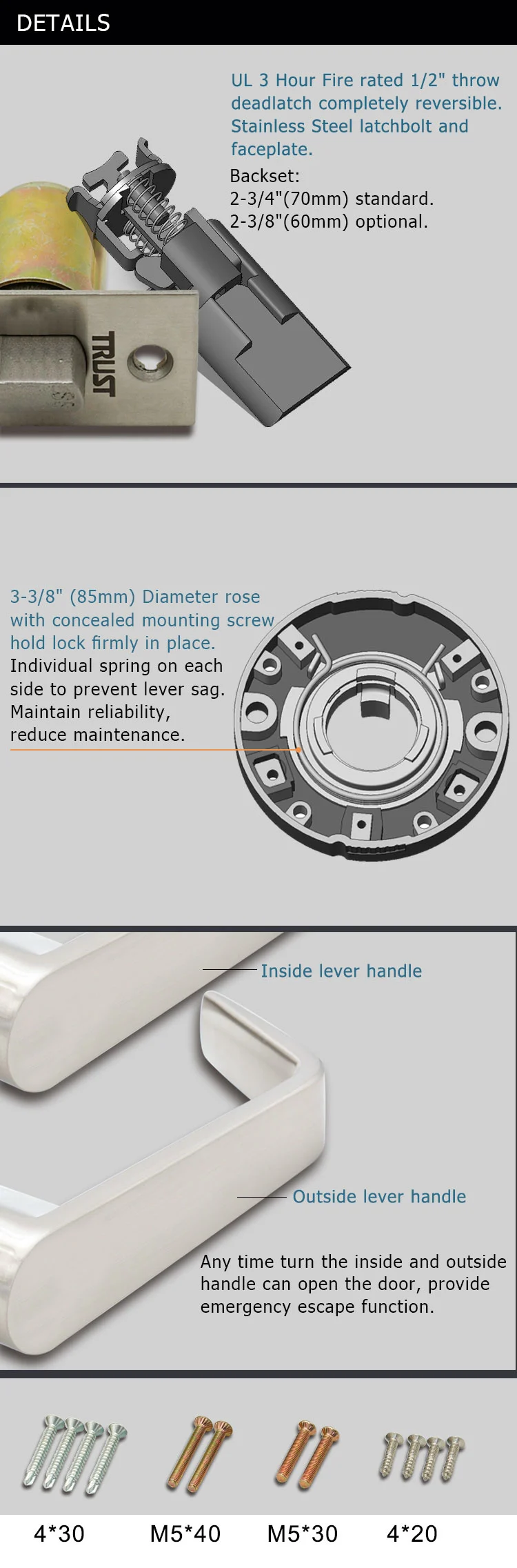

Latch:304SS material tongue & Faceplate; 70mm(2-3/4") as standard; 60mm(2-3/8") is optional;
Faceplate:Square corner, standard (LxW): 1"X 2-1/4"(25*57*1.5mm),1-1/8"X 2-1/4"( 28.6*57*1.5mm) as optional.
Strike:
  • heavy gauge T"Shape strike plate LxW: 70x28mm (standard) 2 3/4"(70mm) x 28mmx1.6mm,304SS material.
  • Optional ASA strike 4-7/8"X 1-1/4"( 123.8 X 31.7 X 2MM) , #304SS material.
Backset:70mm(2-3/4") as standard; 60mm(2-3/8") also available
Door Thick:Fit wood or metal doors from 1-3/8"(35mm) to 2"(50mm) thick as standard;
Finish:SS/32D, SN/15, PB/3, AB/5, CP/26, SC/26D , RB/10B, PVD or required
Keyway:SC1, KW1, C4
Keying:KA(Keyed Alike), KD (Keyed Diffrent), MSK (Master Key), CSK(Construction Keying);
Function:ET(Entrance), BK(Privacy), PS(Passage), ST(Storeroom), CL(Classroom), DM(Dummy)

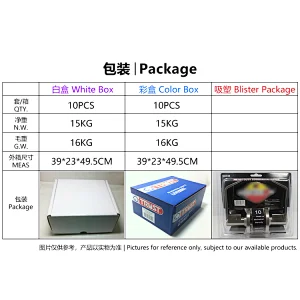

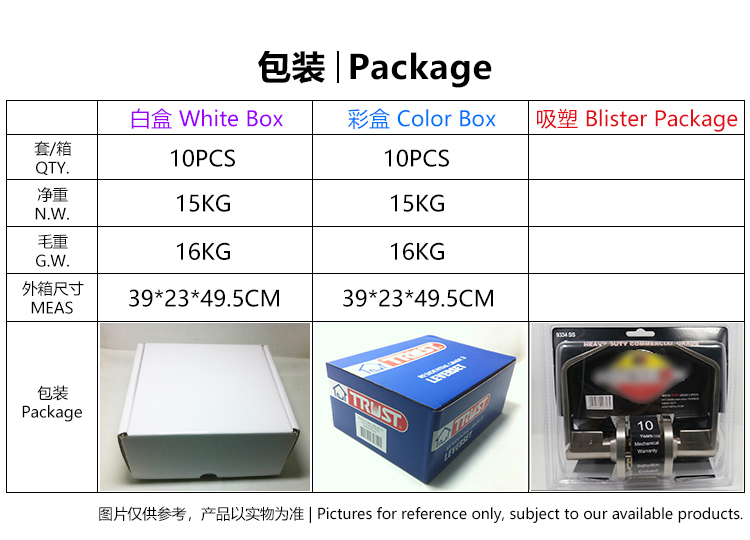

Pack:Box pack ,blister pack

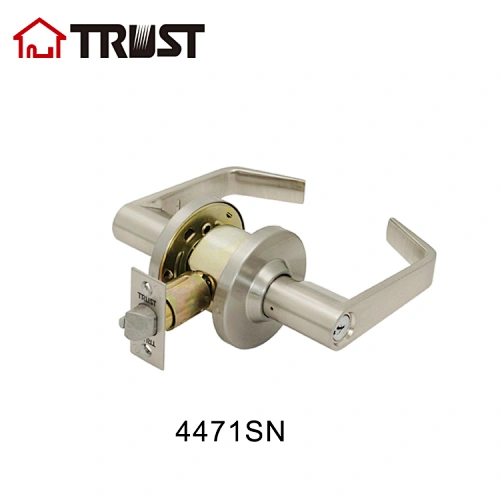

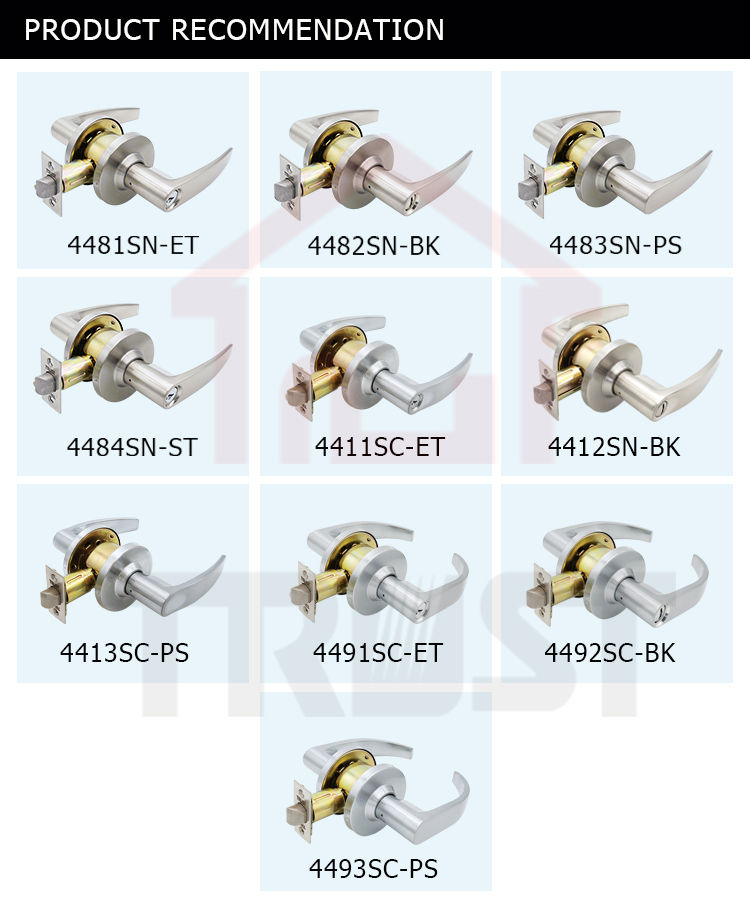

Related Product

Packaging & Shipping


Certifications

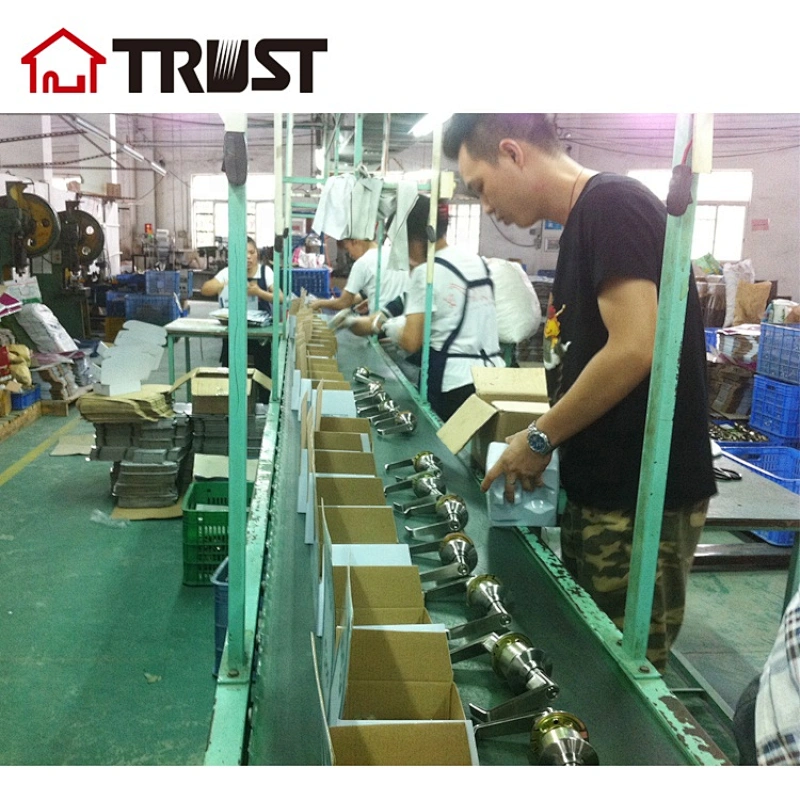

Company Information

.jpg

FAQ

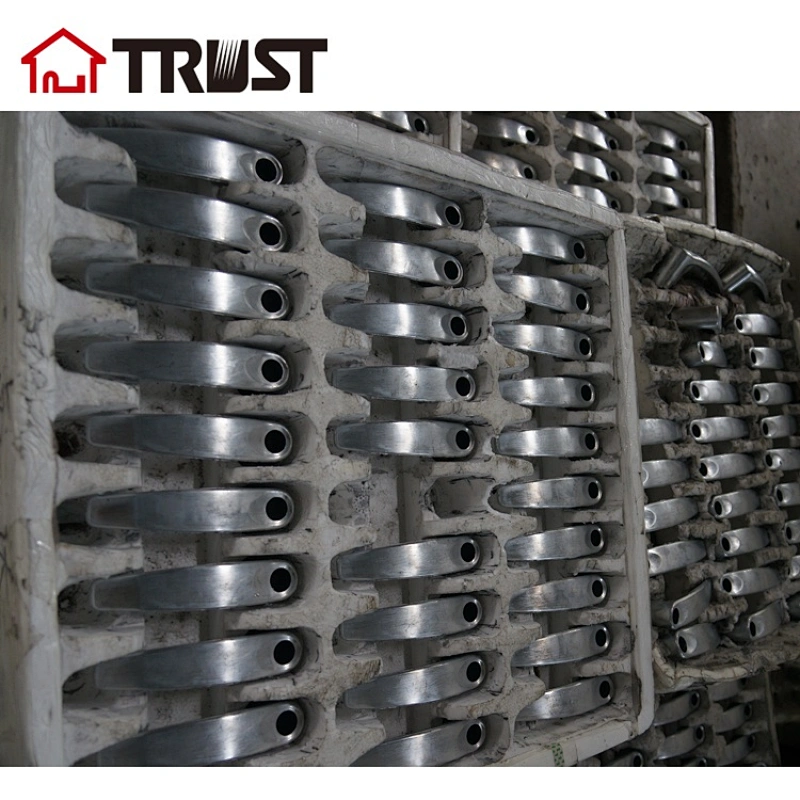

1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Bodyand other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
