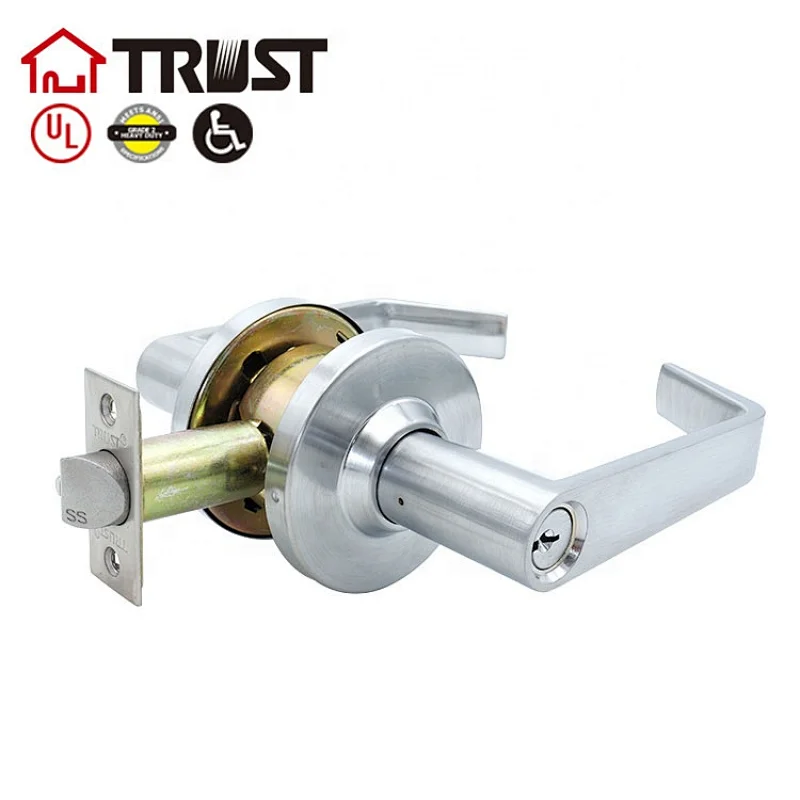

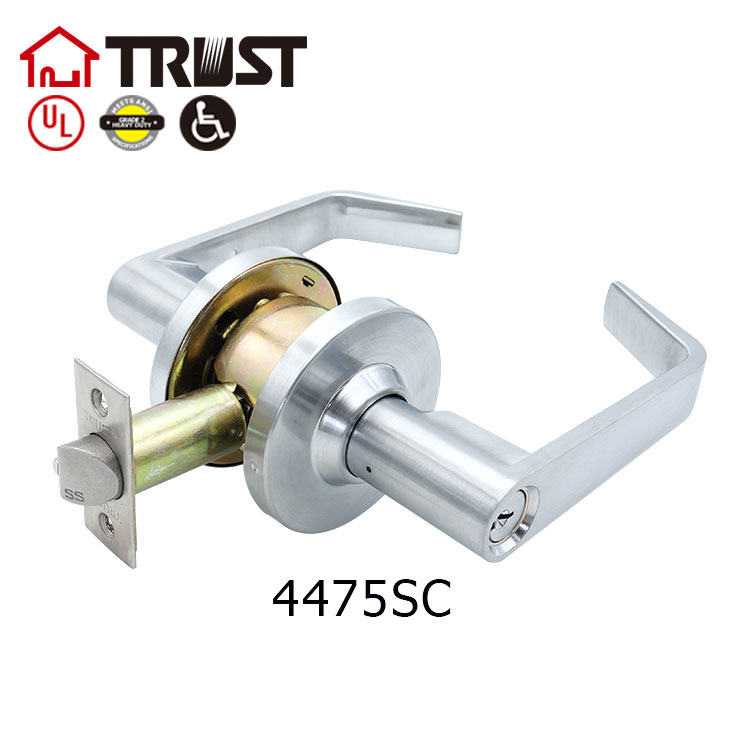

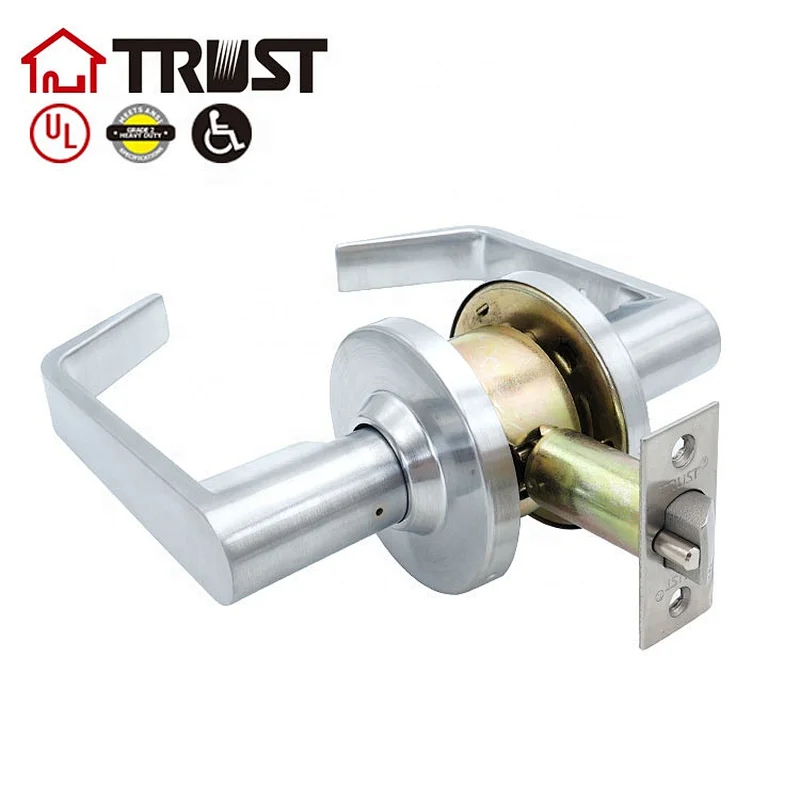

TRUST 4475-SC Dynasty Hardware Grade 2 Commercial Duty Classroom Function Keyed Lever Lockset, Satin Chrome Finish
4475-SC
FOB
Quantity:
  • Material:Zinc Alloy & SUS304
  • Type:Grade 2 Heavy Duty Commercial Door Lock
  • DIA of Rose:75mm
  • Function:CL(ET, BK, PS, ST, CM, HT, DM)
  • Keyway:SC1 (KW1,Ya or C4 optional)
  • Finish:SS/32D, SN/15, SC/26D, PB/3, RB/10B...
  • Backset:70mm(2-3/4") standard, 60mm(2-3/8") optional
  • Cylinder:6-pin removable core
  • Quality:ANSI Grade 2 Exceeds 400,000 Cycles
  • Door Thickness:1-3/8"(35mm) to 2"(50mm)
  • Place of Origin:CN
  • Brand Name:TRUST
  • Model Number:4475-SC
  • Certification:ANSI GRADE 2

TRUST 4475-SC Commercial Cylindrical Lever Heavy Duty Non-Handed Grade 2 Door Handle

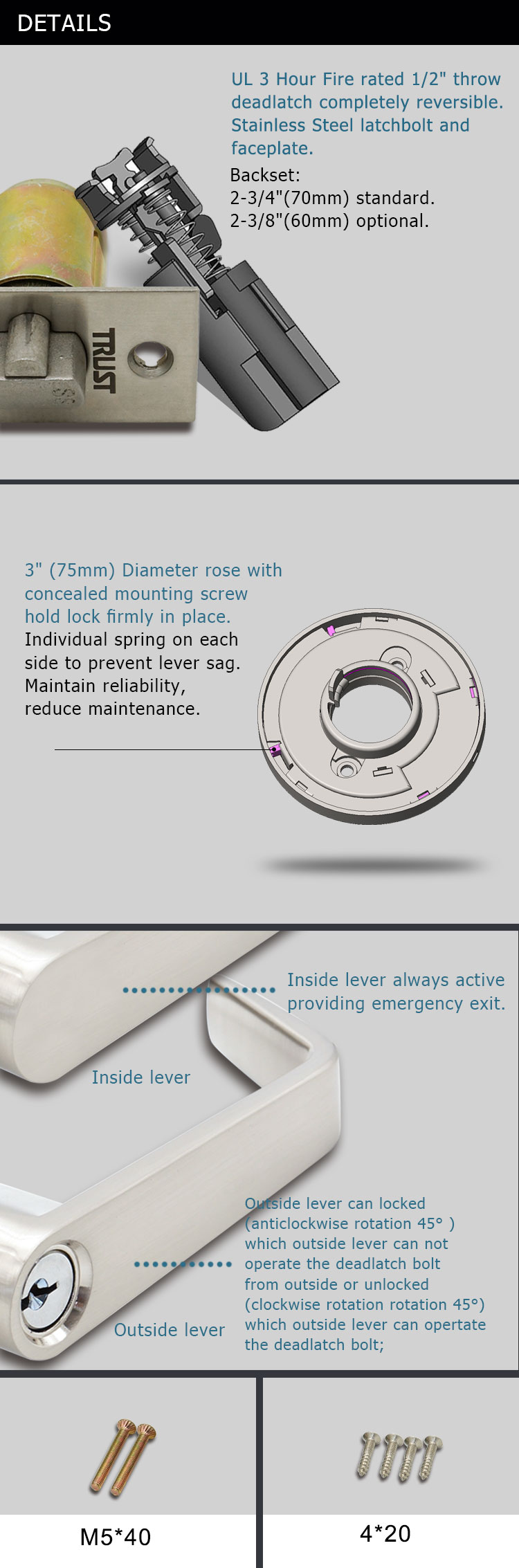

Product Description

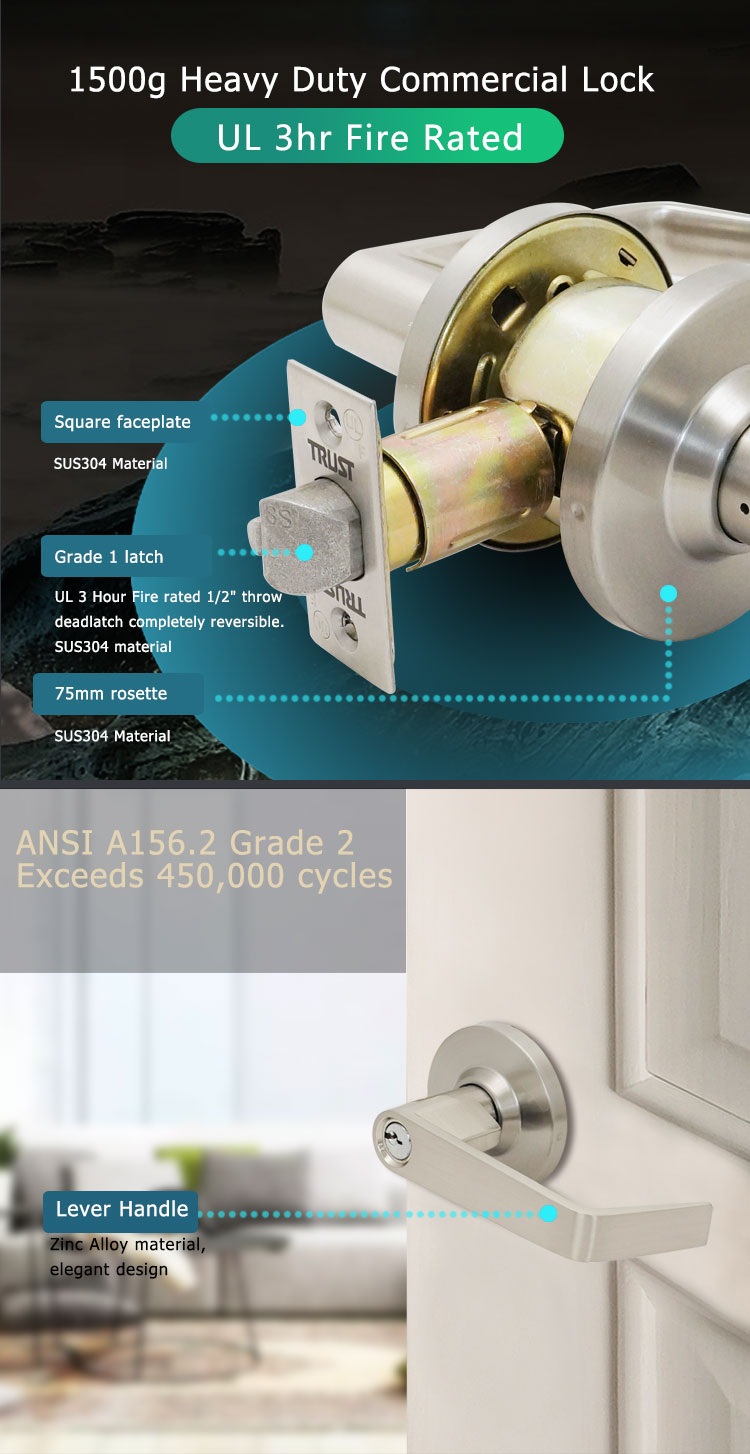

Commercial Lever Lock

US StandardANSI Grade 2 Heavy Duty Commercial Door Lock 4475

**Heavy duty commercial Lever Lock-Meets with ANSI A156.2 Grade 2 Exceeds 400,000 Cycles.

**High Security Level: Thru bolts are provided and recommended for use in high security doors.

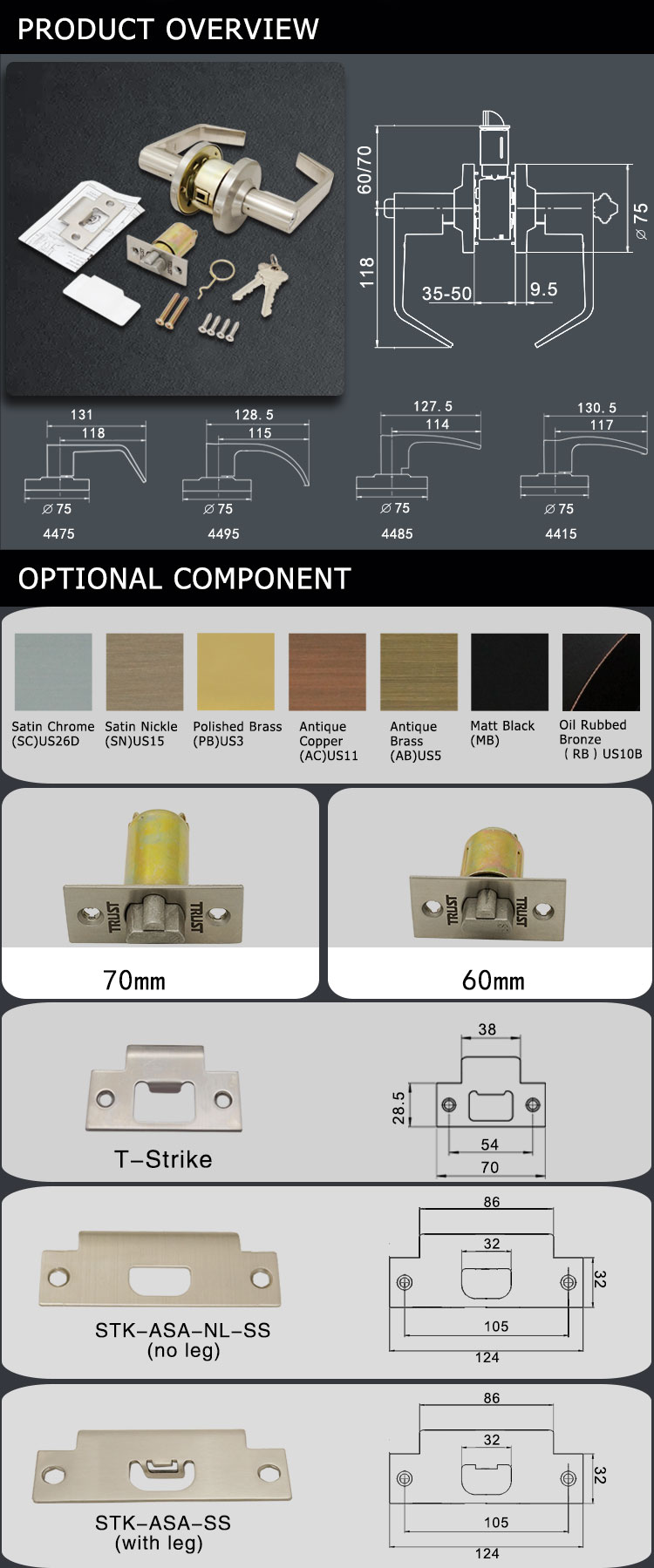

1. Cylinder Solid Brass 5 or 6 pin tumbler Removable & rekeyable cylinder

2. Knob/Rosette 304 SS or solid brass , Knob 54mm Diam, Rosette 75mm Diam;

3. Latch: 304SS material tongue & Faceplate; 70mm(2-3/4") as standard; 60mm is optional;
4. Faceplate: Square corner, standard (LxW): 1"X 2-1/4"(25*57*1.5mm), 1-1/8"X 2-1/4"( 28.6*57*1.5mm) as optional.

5. Strike:

  • heavy gauge T"Shape strike plate LxW: 70x28mm (standard) 2-3/4"(70mm) x 28mmx1.6mm,304SS material.
  • Optional ASA strike 4-7/8"(123.8mm) x 1 1/4"(31.7mm) x2.0mm, #430SS material.

6. Backset: 70mm(2-3/4") as standard; 60mm(2-3/8") also available.

7. Door Thick:Fit wood or metal doors from 1-3/8"(35mm) to 2"(50mm) thick as standard;

8. Finish:SS/32D, SN/15, SC/26D, RB/10B, PB/3, AB/5, CP/26 or optional

9. Keyway: SC1, KW1, Ya or C4 optional.

10. Function: ET(Entrance), BK(Privacy), PS(Passage), ST(Storeroom), CL(Classroom), CM( Communication), DM(Dummy)

11. Door Prep: Cross bore 2-1/8"(54mm),Edge bore1"(25mm),Latch face 1"x2-1/4"(25x57mm).

Commercial Lever LockCommercial Lever LockCommercial Lever Lock

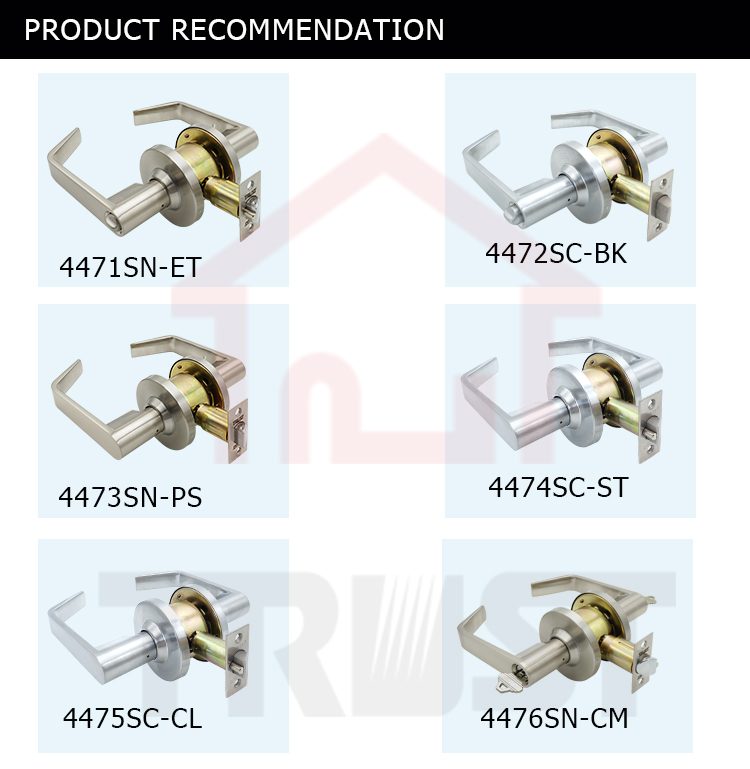

Related Products

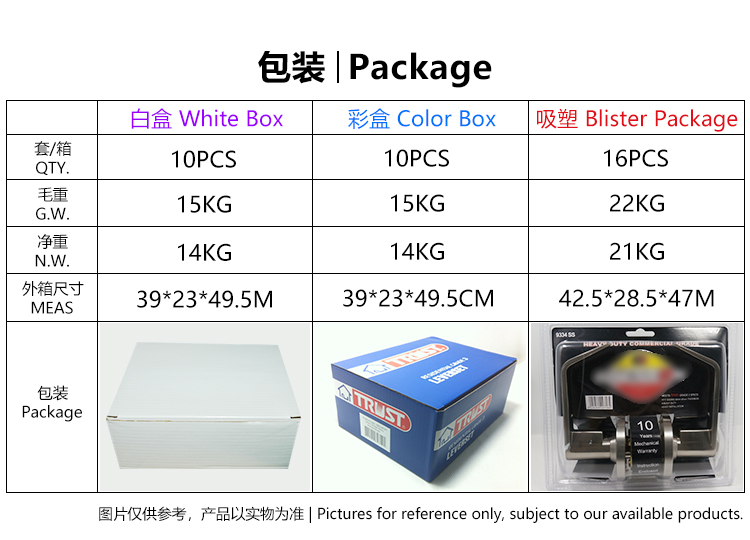

Packaging & Shipping

Commercial Lever Lock

Certifications

Commercial Lever Lock

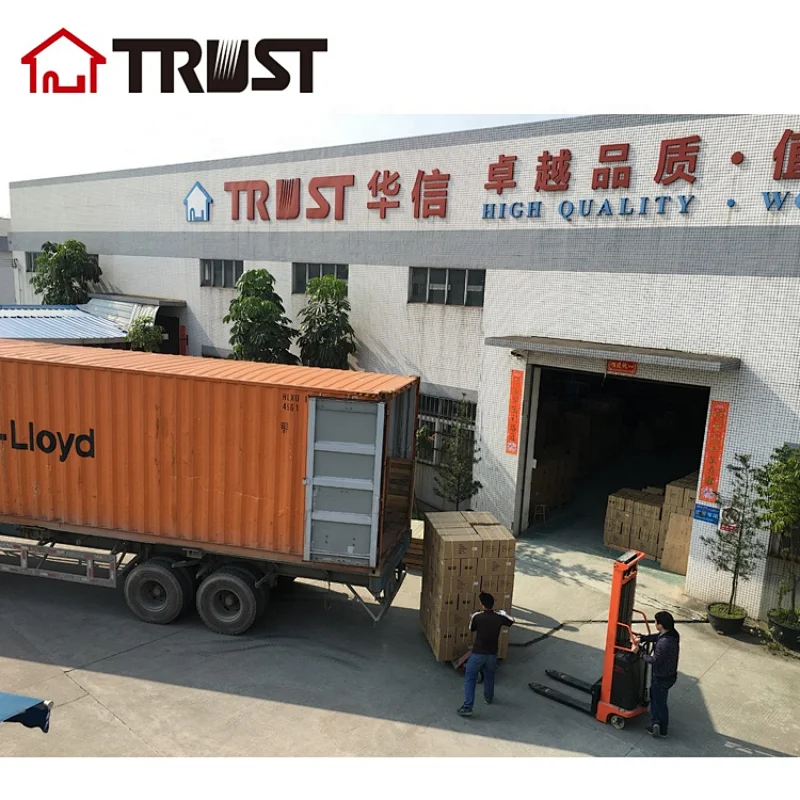

Company Information
