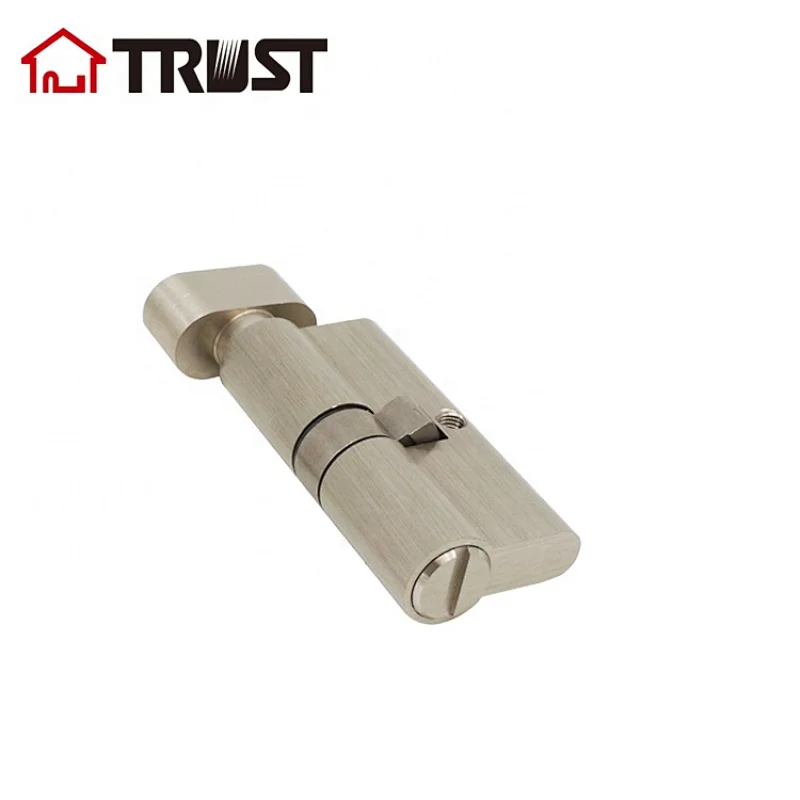

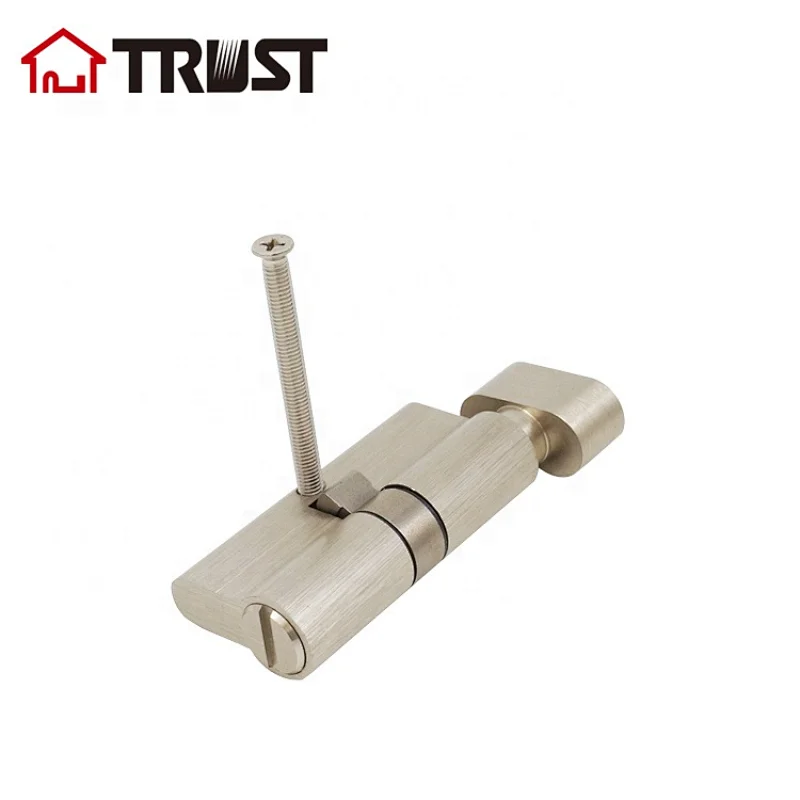

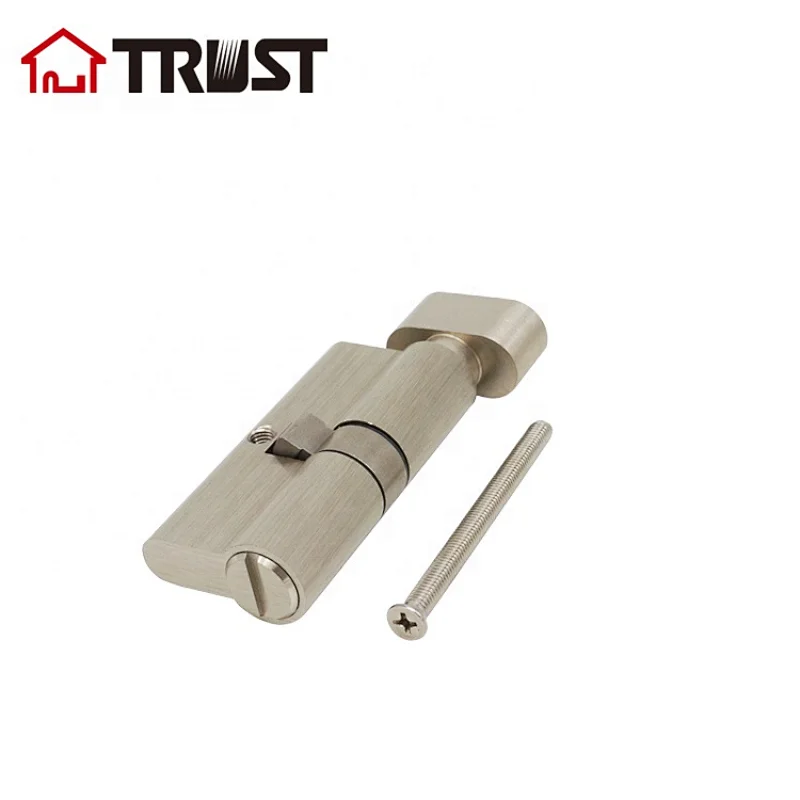

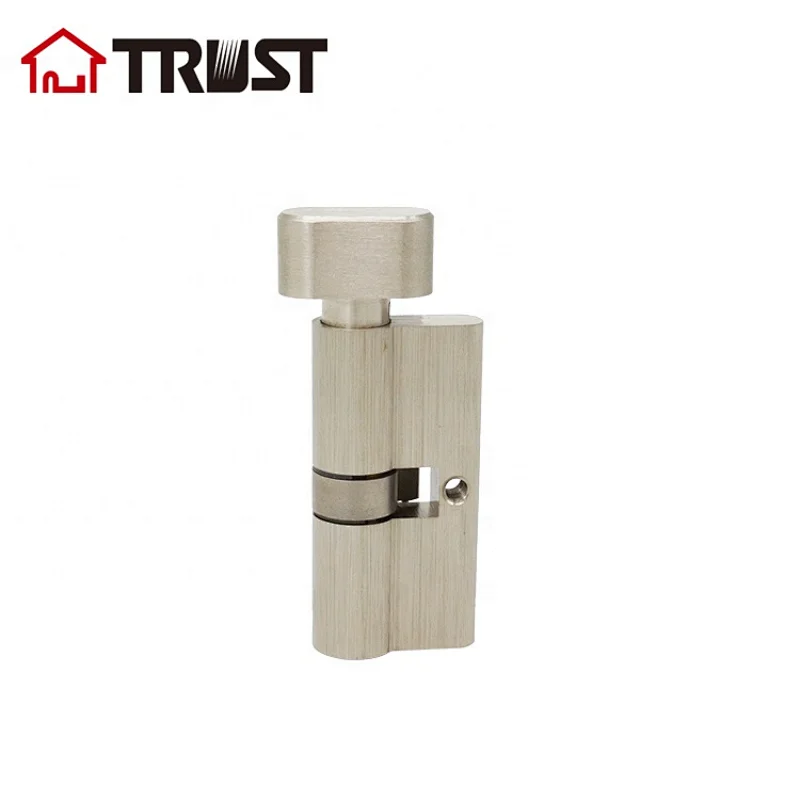

TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob
TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob

TRUST BK70-SN-T01 Euro Profile Toliet Cylinder Bathroom Lock Cylinder with knob

Model NO.
BK70-SN-T01
Delivery
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:BK70-SN-T01
  • Finish:SC(26D), SN(US15), PB(US3),AB(US5)
  • Material:BRASS
  • Type:Euro Profile Cylinder
  • Length:60,65,70,75,80,85,90mm

TRUST BK70SN-T01 Bathroom Cylinder Single Open With Knob

Product Description

5 pin cylinder lock

70mm T01 turn knob mortise lock cylinder

Item:BK70SN-T01

"A"mean Standard key ;"B"mean Computer key

"70"mean Length

"SN"mean Finish

"T01"mean Type of Turn Knob

Product Overviews


5 pin cylinder lock

Single Cylinder With Turn Knob

Dimesion

CODE

A

B

C

Standard Key

Dimple Key

60

30

30

A60SN-T01

B60SN-T01

65

32.5

32.5

A65SN-T01

B65SN-T01

71

35.5

35.5

A71SN-T01

B71SN-T01

75

37.5

37.5

A75SN-T01

B75SN-T01

80

40

40

A80SN-T01

B80SN-T01

85

42.5

42.5

A85SN-T01

B85SN-T01

90

45

45

A90SN-T01

B90SN-T01

The name classification of the lock cylinder

In accordance with DIN 18 252/09-1999 and EN 1303 standard,continental cylinders are divied into three quality grades:

By the number of pins Grade I & II: 5 pins ; Grade III:6 pins

Key differ rate

Grade I & II: 1/30000 Grade III: 1/100000

European standard cylinder with multiple device for the maximum security purpose,in addition to the above number and combinnation of differentpins,there are also some more methods as follows:Anti-drilling protection protection against demolition Increase the security pin.

Note:the above structure is common functon,if customer need special enhanced security performance requirements or other special needs,please specify when ordering.

Determination of the cylinder length

1,The total length of cylinder = door thickness + thickness of the fitting on the outside + thickness of the fitting on the inside

2,Cylinder is equal sides cylinder if it is fitted in the middle of door.

3,Cylinder in unequal sides cylinder if it is notin the middle of the door,

4,The cylinder must protrude only max 2-3mm from the fitting on the outside and inside.

Related Products

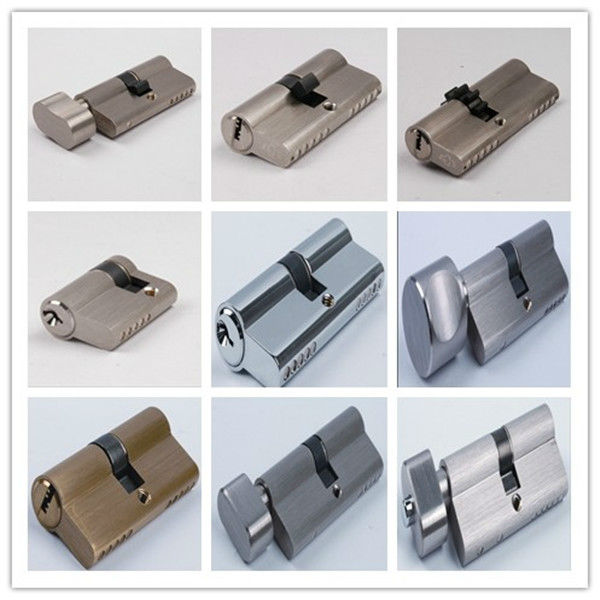

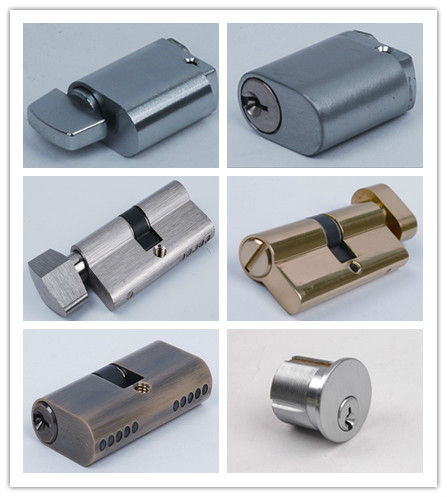

Other kinds of our HOT SELLING brass Mortise Cylinder;

5 pin cylinder lock5 pin cylinder lock

FAQ

1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Body and other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.
4:Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude forever.
Certifications

5 pin cylinder lock5 pin cylinder lock

If you are interested in any of our products,pls feel free to contact me,E-catalog and favourable price will be ready for you!!!

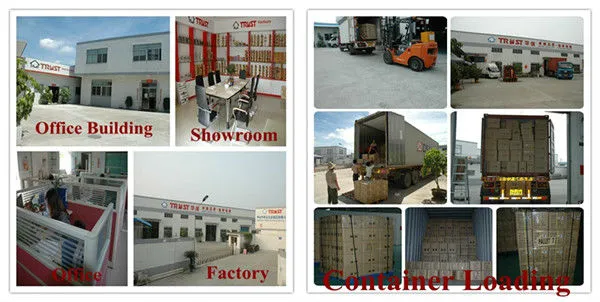

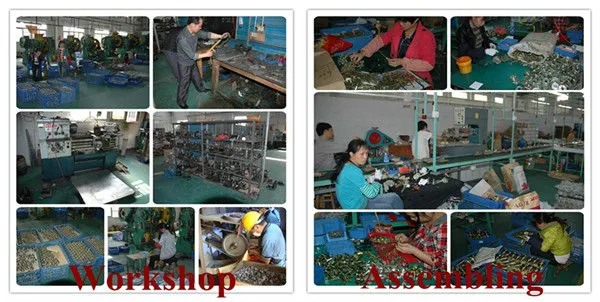

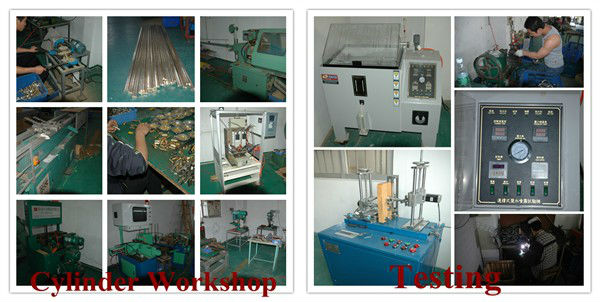

Factory Overview5 pin cylinder lock

5 pin cylinder lock

5 pin cylinder lock
