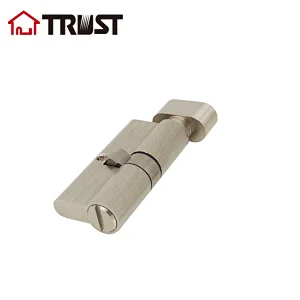

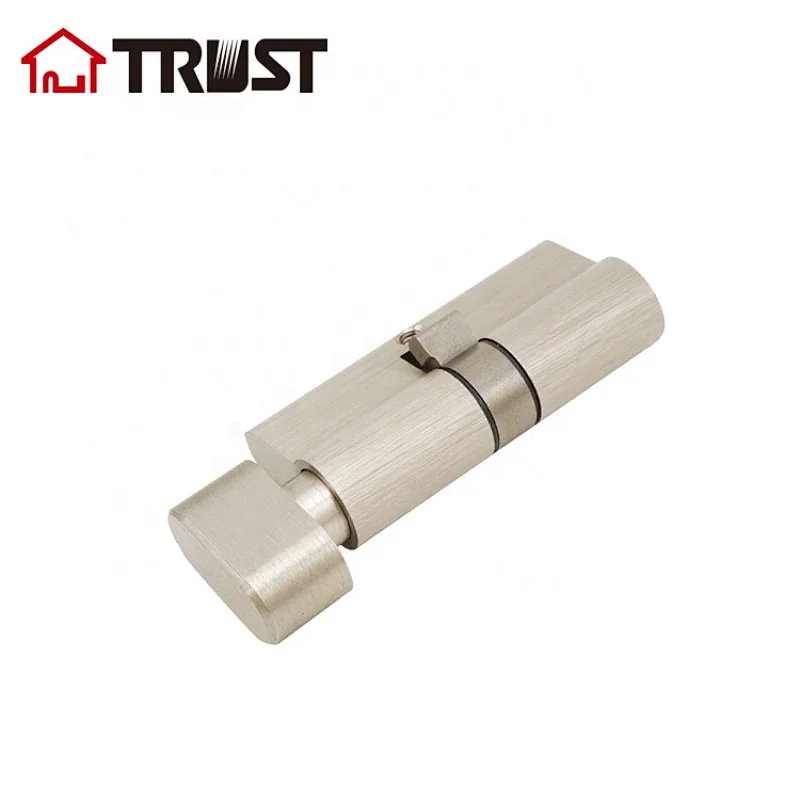

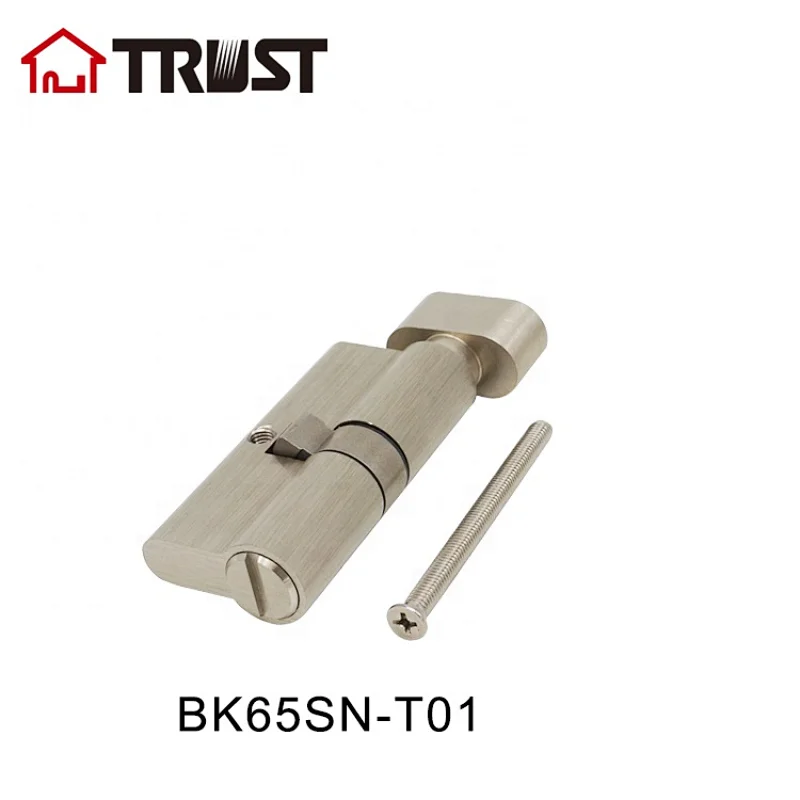

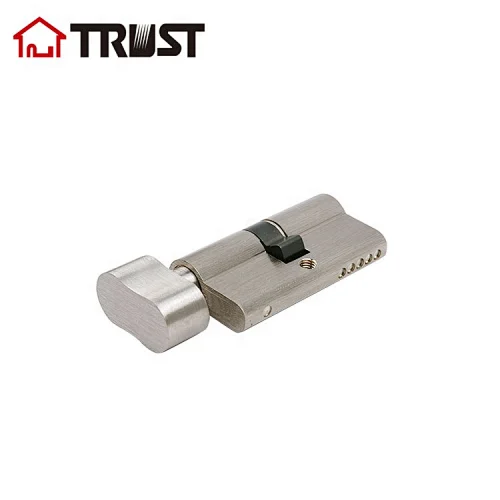

TRUST BK65-SN-T01 Bathroom 5 Pin Cylinder Brass Euro Profile Thumb Turn
BK65-SN-T01
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:BK65-SN-T01
  • Finish:SN,CP,SB ect
  • Material:Brass
  • Cylinder Quality:Euro Profile Cylinder
  • Key:Standard key or Computer key
  • Length:60,65,70,75,80,85,90mm
  • Lock cylinder type:5pin lock cylinder
  • Lock cylinder pin:5 pin
  • Lock cylinder cam:Brass cylinder


Mortise Single Cylinder With Turn Knob

Size Picture

A65SN-B01-draft

A*SN-L01

Dimesion

CODE

A

B

C

Standard Key

Dimple Key

60

30

30

A60SN-L01

B60SN-L01

65

32.5

32.5

A65SN-L01

B65SN-L01

71

35.5

35.5

A71SN-L01

B71SN-L01

75

37.5

37.5

A75SN-L01

B75SN-L01

80

40

40

A80SN-L01

B80SN-L01

85

42.5

42.5

A85SN-L01

B85SN-L01

90

45

45

A90SN-L01

B90SN-L01

Determination of the cylinder length

1,The total length of cylinder = door thickness + thickness of the fitting on the outside + thickness of the fitting on the inside

2,Cylinder is equal sides cylinder if it is fitted in the middle of door.

3,Cylinder in unequal sides cylinder if it is notin the middle of the door,

4,The cylinder must protrude only max 2-3mm from the fitting on the outside and inside.

The name classification of the lock cylinder.

In accordance with DIN 18 252/09-1999 and EN 1303 standard,continental cylinders are divied into three quality grades:

By the number of pins Grade I & II: 5 pins ; Grade III:6 pins

Key differ rate

Grade I & II: 1/30000 Grade III: 1/100000

European standard cylinder with multiple device for the maximum security purpose,in addition to the above number and combinnation of different pins,there are also some more methods as follows:Anti-drilling protection protection against demolition Increase the security pin.

Note:the above structure is common functon,if customer need special enhanced security performance requirements or other special needs,please specify when ordering.

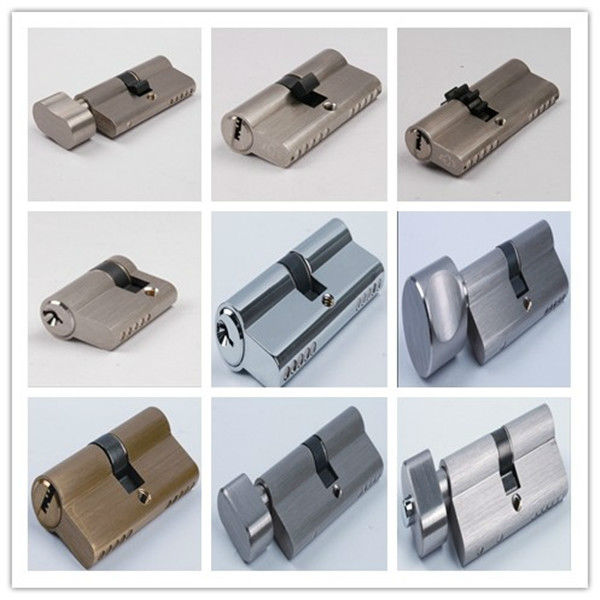

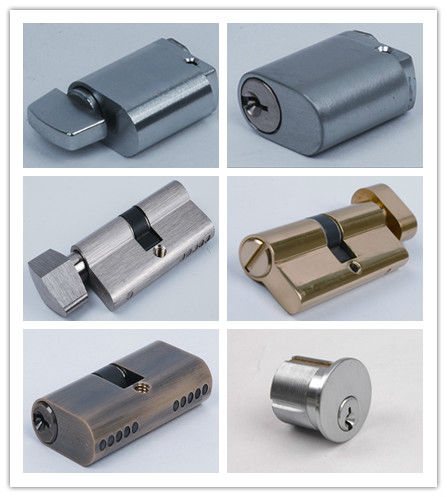

Other kinds of our HOT SELLING brass Mortise Cylinder;

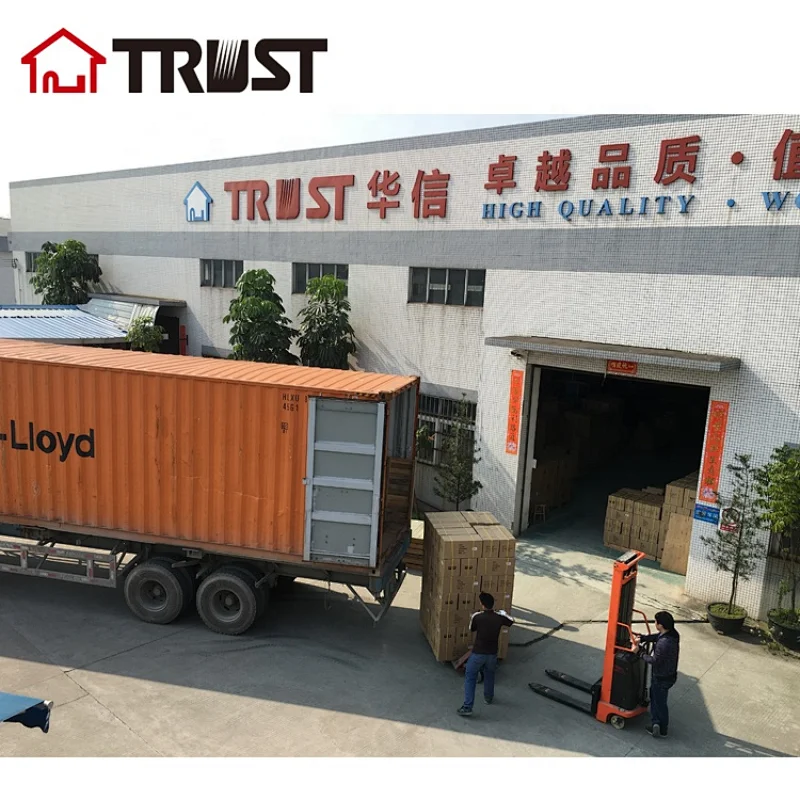

1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Body and other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.Just like our 5pin lock cylinder.
4:Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude forever.
