euro profile brass lock cylinder
euro profile brass lock cylinder
euro profile brass lock cylinder

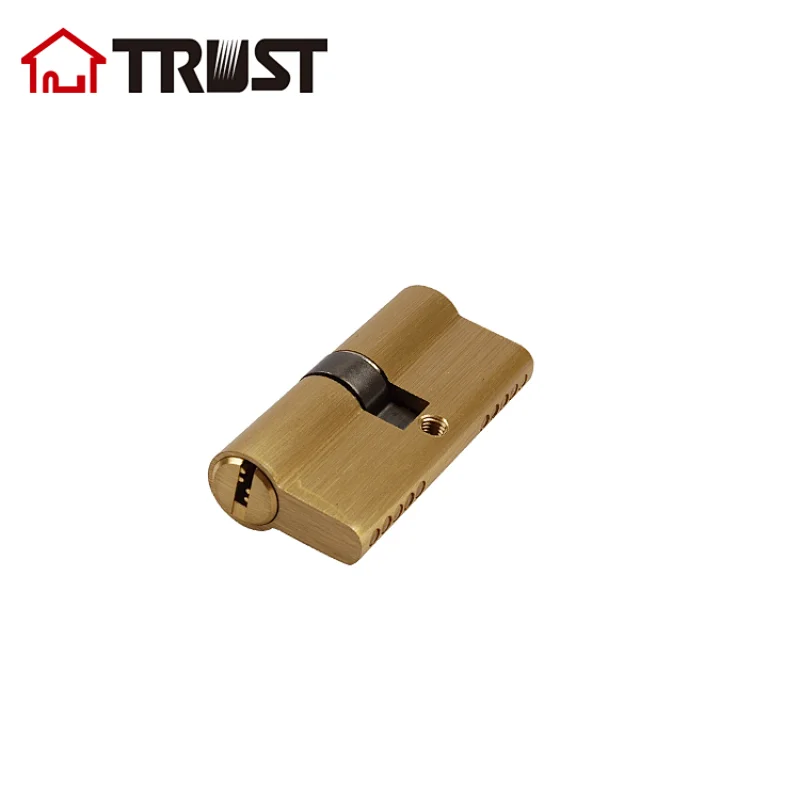

Trust B70-SB China Euro Profile double side cylinder Brass 70mm Computer Key Lock Cylinder

B70SB
Delivery:
FOB
minimum order:
100 sets
Supply Ability:
100000.0sets / Month
Country of Origin:
Zhongshan,GD
Quantity:
Contact Now
add to cart
  • Finish:SN, CP, SB,PB,AB...
  • Quality:Euro Profile Cylinder
  • Material:Brass
  • Key:Standard key or Computer key
  • Length:60,65,70,75,80,85,90 mm
  • Lock cylinder Pin:5 pin
  • Place of Origin:CN;GUA
  • Brand Name:TRUST(hot selling lock cylinder)
  • Model Number:B70SB


A70CP

60mm Euro Profile Double Mortise Cylinder
Different size optional.

Dimension

CODE

A

B

C

Standard Key

Dimple Key

60

30

30

A60SB

B60SB

65

32.5

32.5

A65SB

B65SB

71

35.5

35.5

A71SB

B71SB

75

37.5

37.5

A75SB

B75SB

80

40

40

A80SB

B80SB

85

42.5

42.5

A85SB

B85SB

90

45

45

A90SB

B9SB

The name classification of the lock cylinder

In accordance with DIN 18 252/09-1999 and EN 1303 standard,continental cylinders are divied into three quality grades:

By the number of pins Grade I & II: 5 pins ; Grade III:6 pins

Key differ rate

Grade I & II: 1/30000 Grade III: 1/100000

European standard cylinder with multiple device for the maximum security purpose,in addition to the above number and combinnation of differentpins,there are also some more methods as follows:Anti-drilling protection protection against demolition Increase the security pin.

Note:the above structure is common functon,if customer need special enhanced security performance requirements or other special needs,please specify when ordering.

Determination of the cylinder length

1,The total length of cylinder = door thickness + thickness of the fitting on the outside + thickness of the fitting on the inside

2,Cylinder is equal sides cylinder if it is fitted in the middle of door.

3,Cylinder in unequal sides cylinder if it is notin the middle of the door,

4,The cylinder must protrude only max 2-3mm from the fitting on the outside and inside.

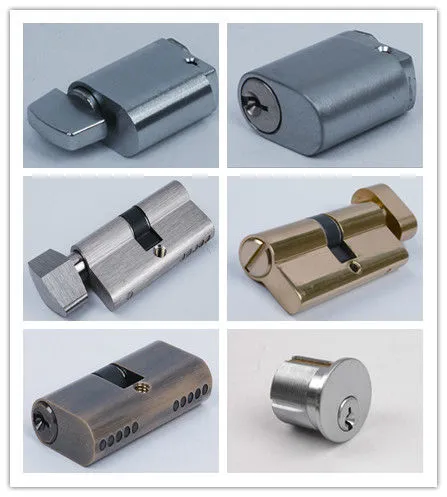

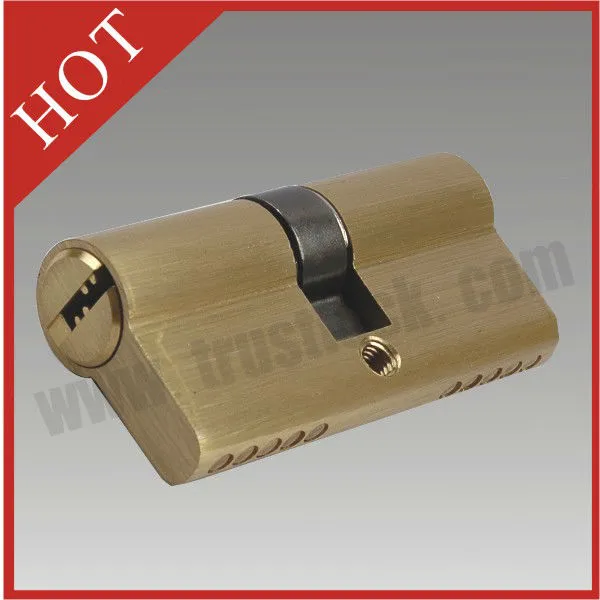

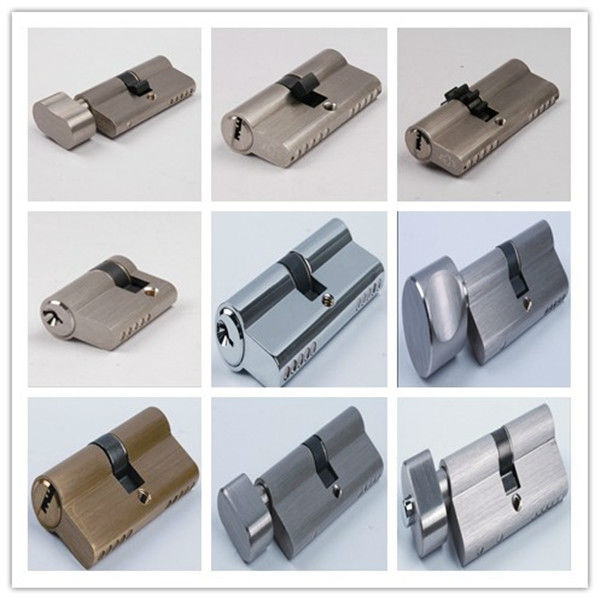

Other kinds of our HOT SELLING brass Mortise Cylinder;


1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Body and other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.Just Like our hot selling lock cylinder.
4:Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude for the first time.
