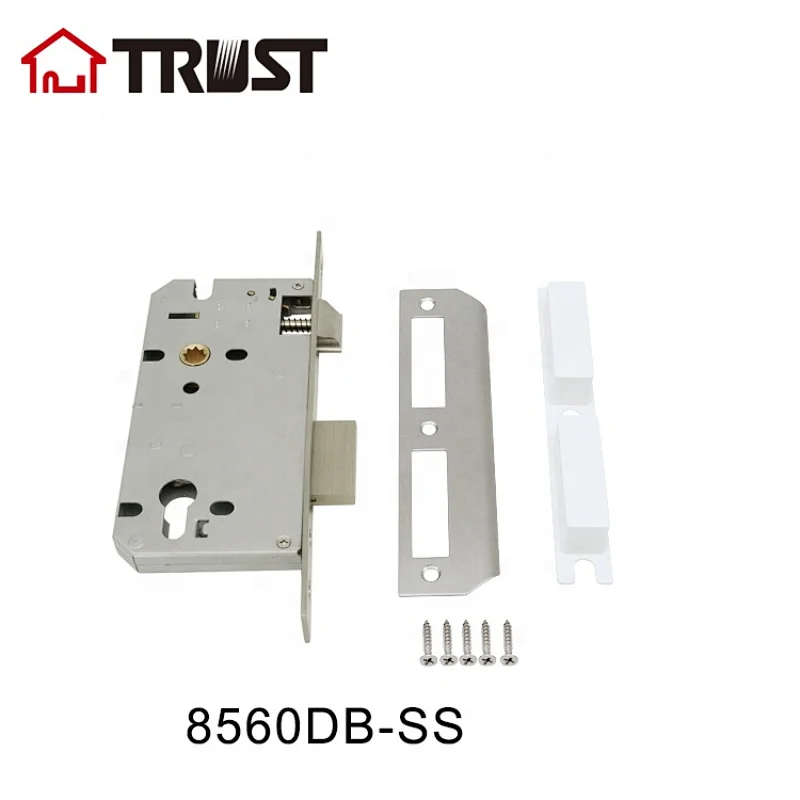

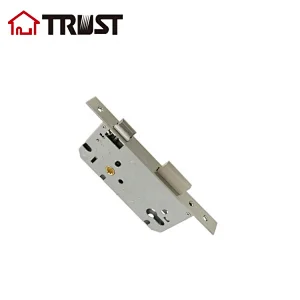

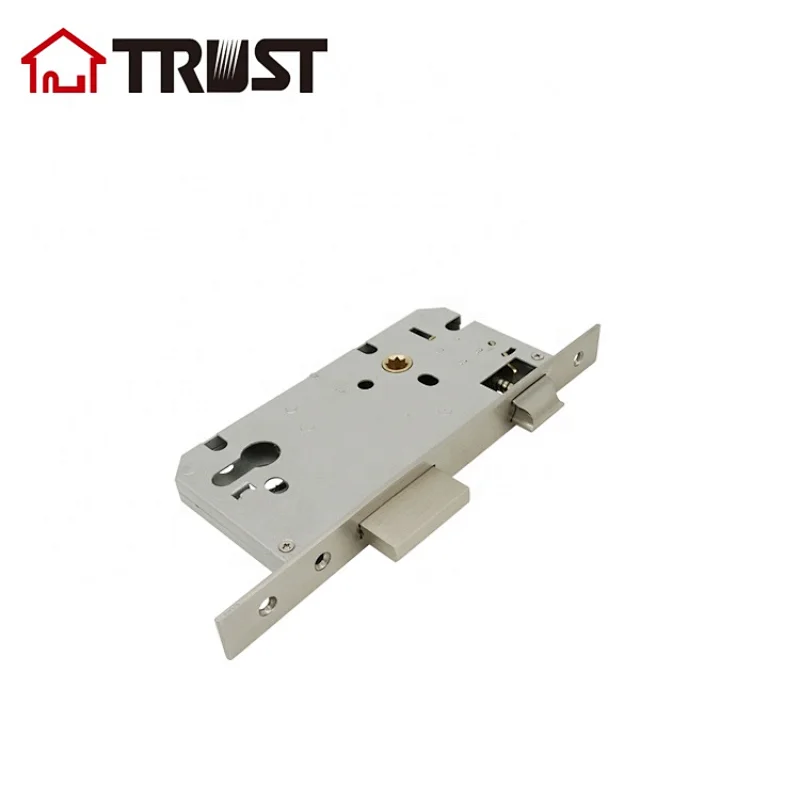

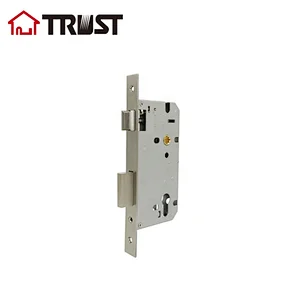

TRUST 8560-DB SS CE European Anti-Theft Security Mortise Door Lock Body

• Function:Entry(ET), Toilet(BK),

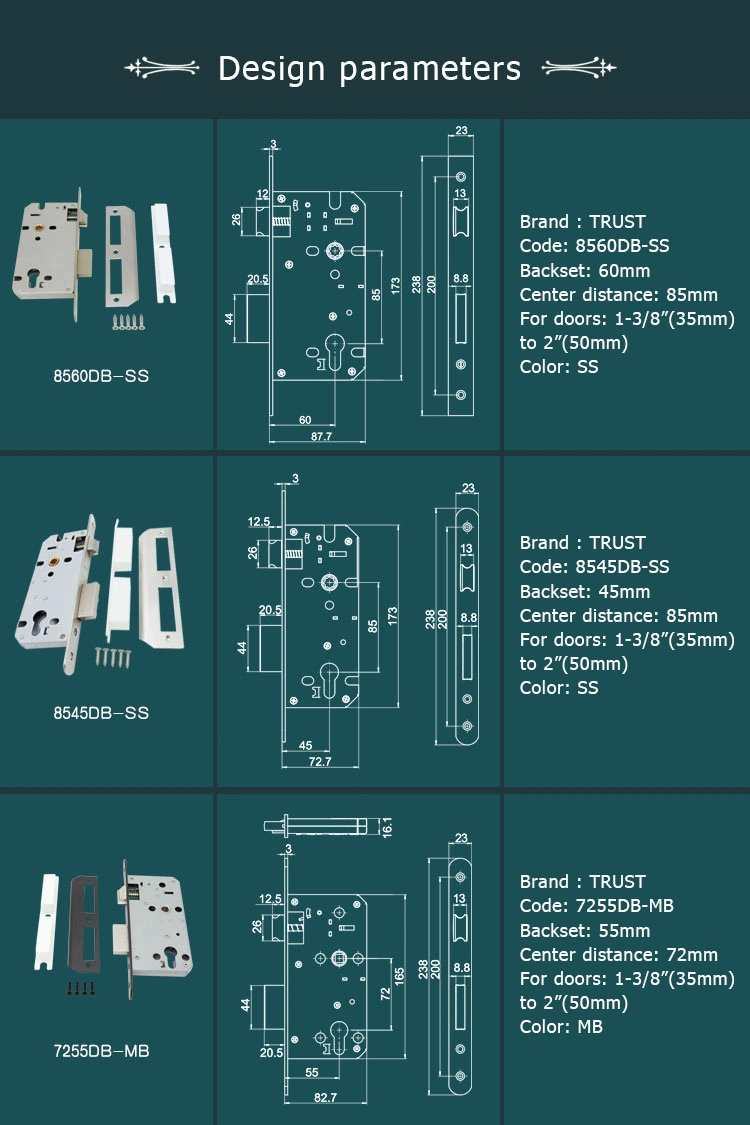

• Backset:60mm
• Front & Strike Material:SUS304SS, Solid Brass or Iron
• Door thickness:35-60MM
• Latch:SINGLE Deadbolt as standard
• Quality:Exceeds 300,0000 cycles
• lockcase:Black Color
• Certification:EN12209:2016 /DIN 18.251 class 3
• Place of Origin:CN;GUA
• Brand Name:TRUST
• Model Number:8560-DB SS
• Certification:ANSI grade 3

1,Function: ET ( Entrance), BK (Bathroom, Privacy), PS( Passage ),, BD( Bedroom with 2 pcs Skeleton keys)

2,Fit Doors: Fit doors 1-3/8"( 35mm )to 2"(50mm) thick

3,Backset: Available in 40,45,50,60mm

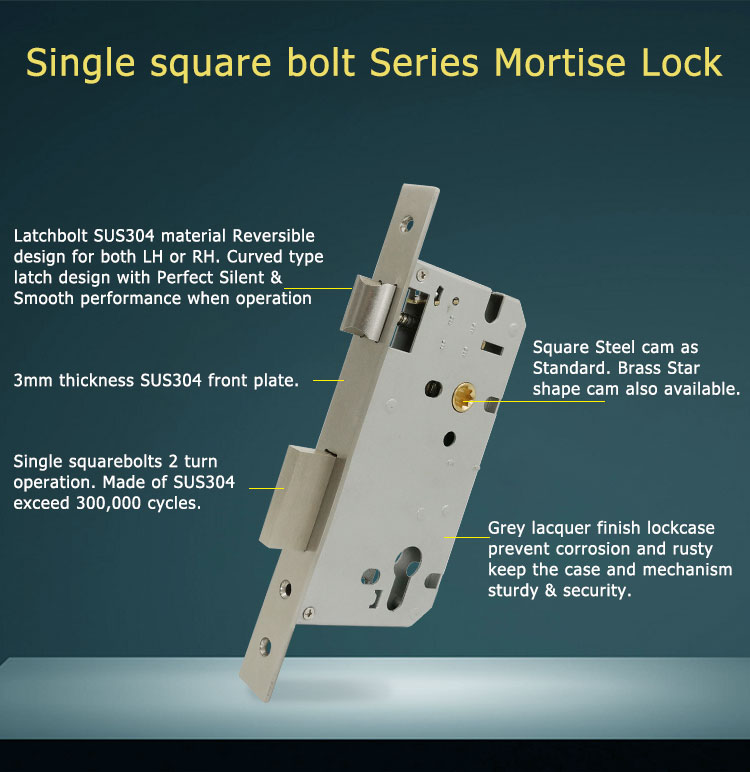

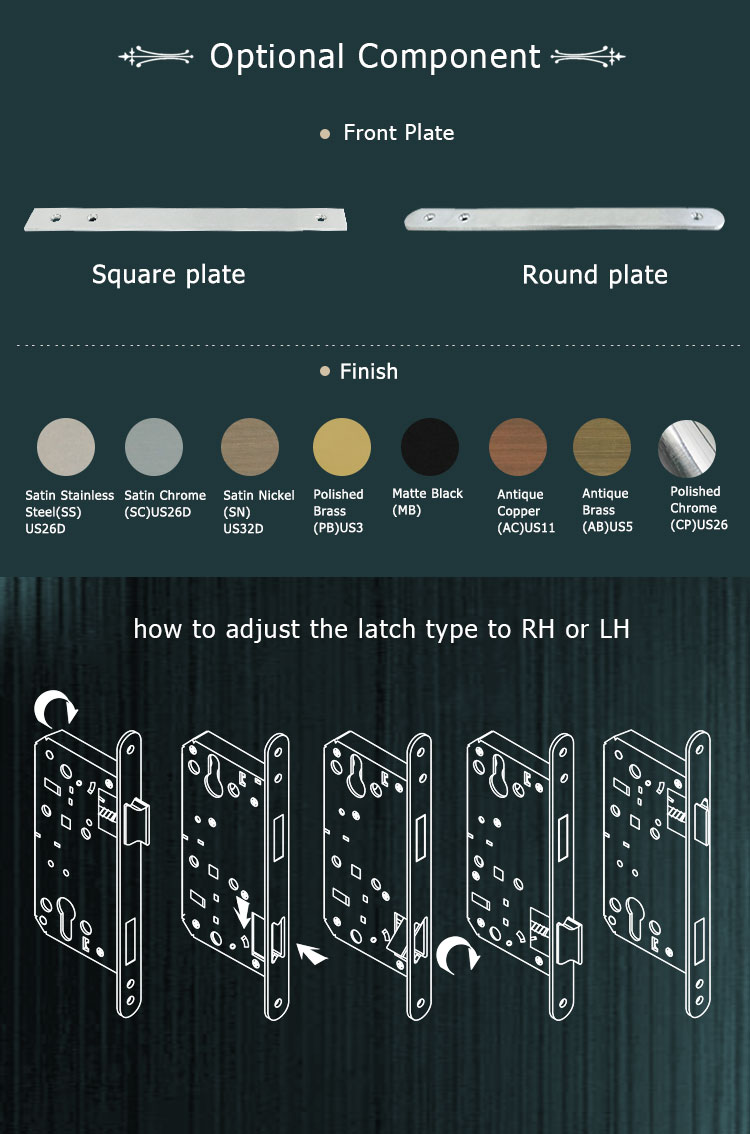

4,Front & Strike: Front 3MM Thick, Strike 1.2mm both SQUARE corner as standard; RADIUS corner as optional. Made of SUS304SS, Solid Brass or Iron.

5,Cylinder: Equiped with 5 or 6 pin Euro Profile Cylinder with YA or KW or C4 keyway.

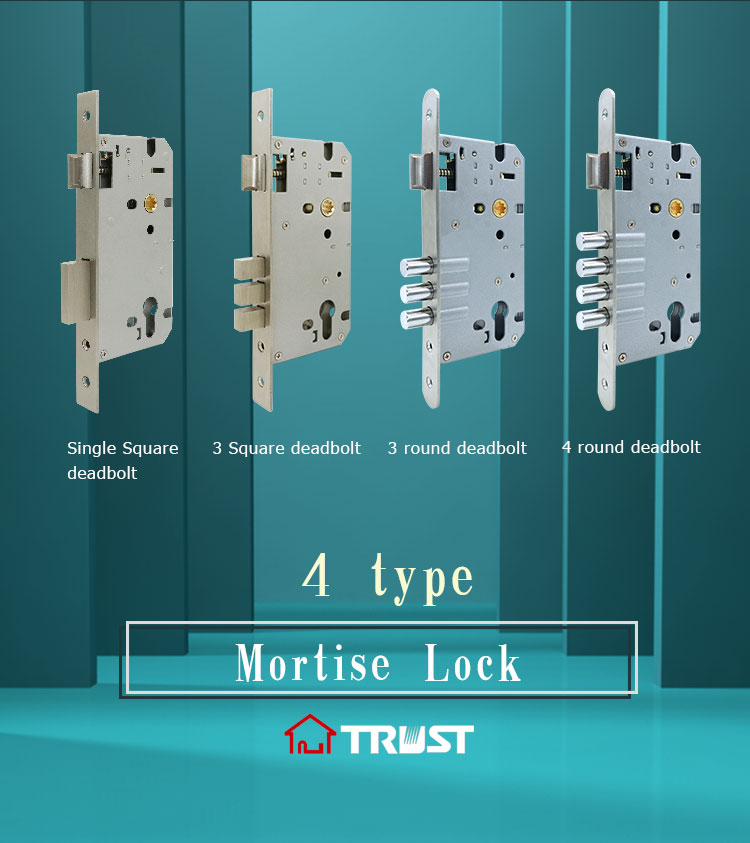

6,Latch:

BRASS Latch &SINGLE Deadbolt as standard;
BRASS Latch &3 Deadbolt type;
SOLID SS LATCH &SINGLE Deadbolt;
SOLID SS LATCH &3 Deadbolt type

also available as optional;
