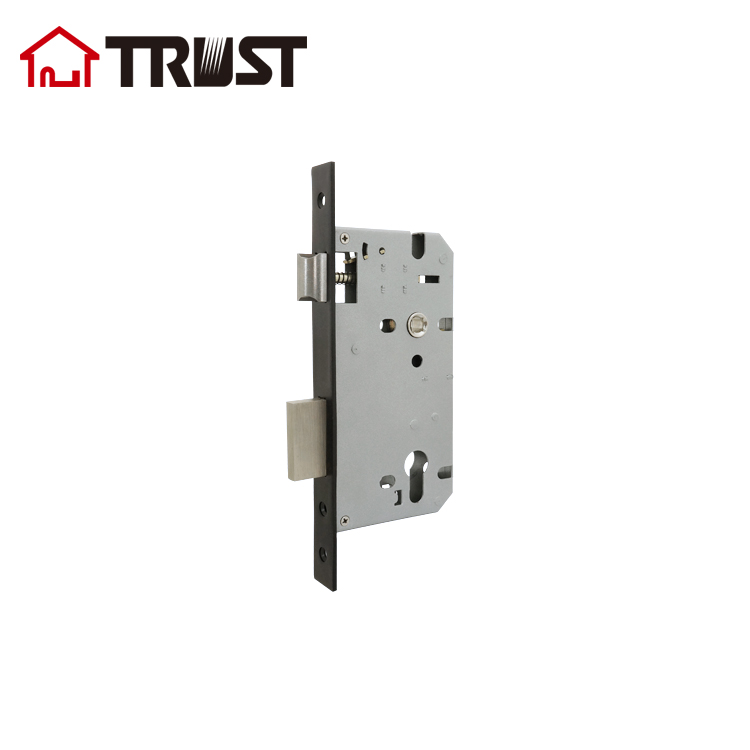

TRUST 8560-DB MB Finish High Security European Standard 60MM Backset Mortise Lock
TRUST 8560-DB MB Finish High Security European Standard 60MM Backset Mortise Lock

TRUST 8560-DB MB Finish High Security European Standard 60MM Backset Mortise Lock

Model NO.
8560-DB MB
Delivery
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:8560-DB MB
  • Function:Entry(ET), Toilet(BK),
  • Door Thickness:35-60MM
  • Backset:Available in 40,45,50,60mm
  • Front & Strike Material:SUS304SS, Solid Brass or Iron
  • Latch:SINGLE Deadbolt as standard
  • Quality:Exceeds 300,0000 cycles
  • Cylinder hole:Euro lock cylinder
  • Lock type:Mortise lock body
  • Certification:EN12209:2016 /DIN 18.251 class 3


85X60mm Motise Lock

with 1 square bolt &1 latch bolt
Special Design for Exterior & Interior Doors & All Fire Rated Doors

1,Function: ET ( Entrance), BK (Bathroom, Privacy), PS( Passage ),, BD( Bedroom with 2 pcs Skeleton keys)

2,Fit Doors: Fit doors 1-3/8"( 35mm )to 2"(50mm) thick

3,Backset: Available in 40,45,50,60mm

4,Front & Strike: Front 3MM Thick, Strike 1.2mm both SQUARE corner as standard; RADIUS corner as optional. Made of SUS304SS, Solid Brass or Iron.

5,Cylinder: Equiped with 5 or 6 pin Euro Profile Cylinder with YA or KW or C4 keyway.

6,Latch:

BRASS Latch &SINGLE Deadbolt as standard;
BRASS Latch &3 Deadbolt type;
SOLID SS LATCH &SINGLE Deadbolt;

SOLID SS LATCH &3 Deadbolt type

also available as optional;

8560CP(SIZE PICTURE)

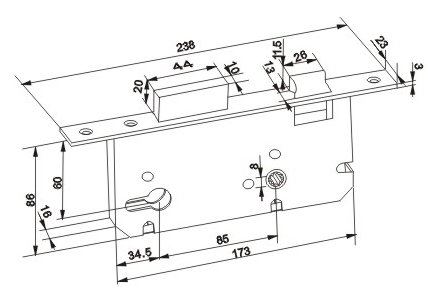

8560CP-Draft

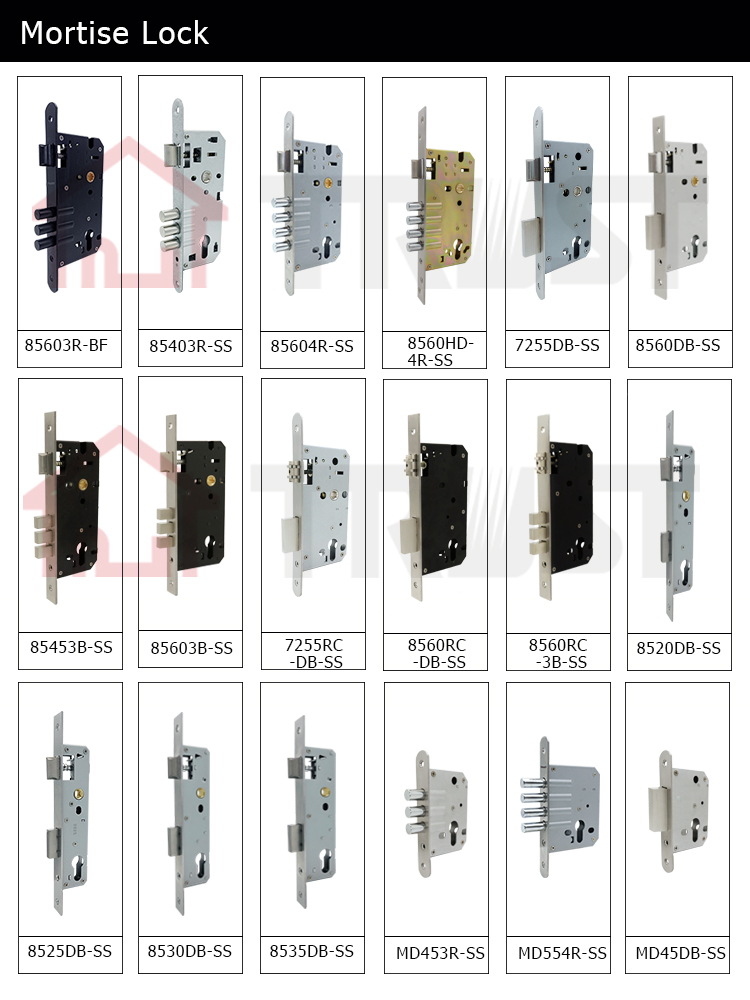

Related Products

Certifications

.jpg

Company Information

.jpg

1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Body and other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.
4:Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude for the first time.
