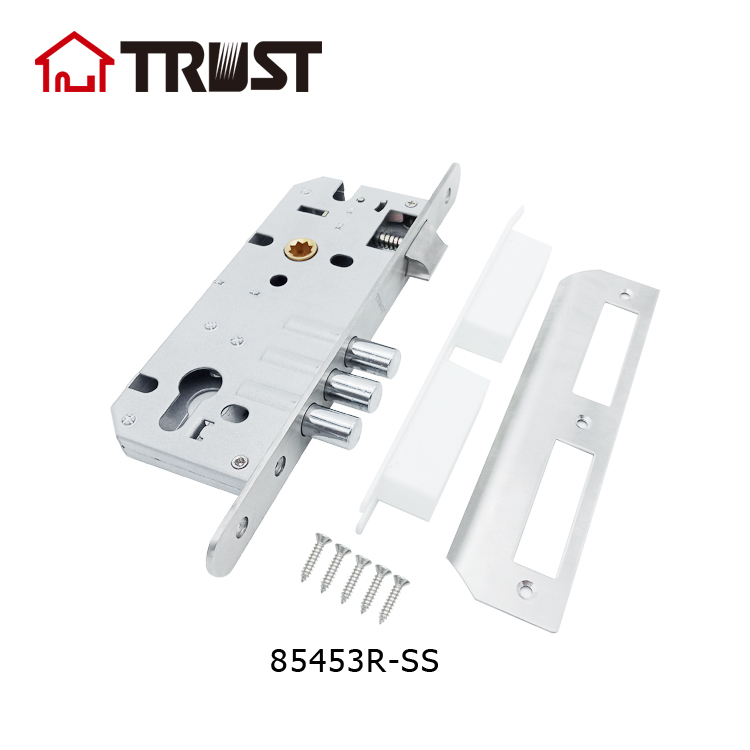

TRUST 8545-3R-SS Steel Bolt Euro Mortise Lock Cylinder Lock
8545-3R-RF-SS
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:8545-SS-3R
  • Function:ET,BK,PS
  • Cylinder:5 or 6 pin Euro Profile Cylinder
  • Quality:Exceeds 300,000 cycles
  • Front & strike material:Stainless Steel, Solid Brass or Iron.
  • Latch:Full 1"(25mm) throw, 3 round bolts with 2 turn operation
  • Certification:EN12209:2016 /DIN 18.251 class 3
  • Cylinder hole:Euro lock cylinder
  • Lock type:Mortise lock body
Product Description

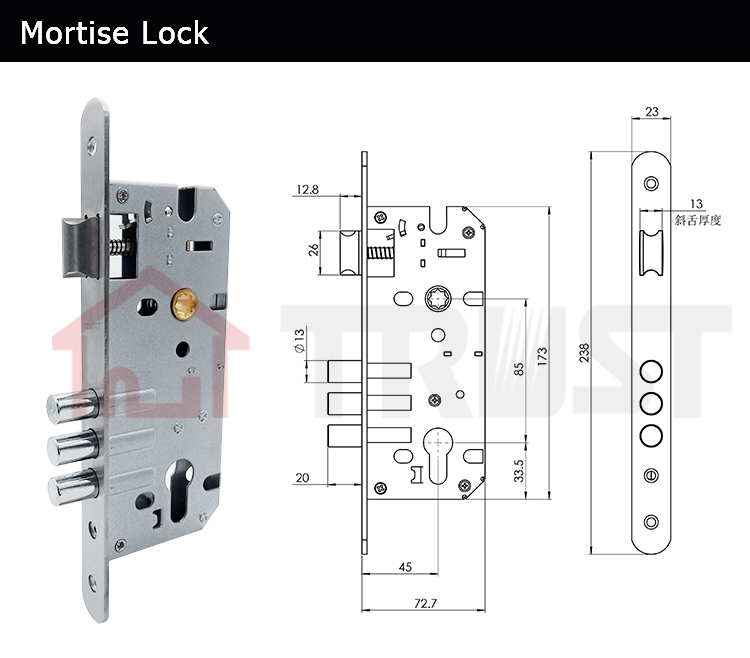

85X45mm 3B steel bolt euro mortise lock

Special Design for Exterior & Interior Doors & All Fire Rated Doors.

1,Function: ET ( Entrance), BK (Bathroom, Privacy), PS( Passage )

2,Fit Doors: Fit doors 35mm to 60MM thick

3,Backset: Available in 50mm

4,Latch: Full 1"(25mm) throw, 3 round bolts with 2 turn operation.

5,Front: Square 3mm ThickxLength 270mm, made of Stainless steel, Solid Brass or Iron.

6,Strike: Square 2.5mm thick x 270mm length as standard, 3mm thick as optional. Made of Stainless Steel, Solid Brass or Iron.

7,Cylinder: Equiped with 5 or 6 pin Euro Profile Cylinder with YA or KW or C4 keyway

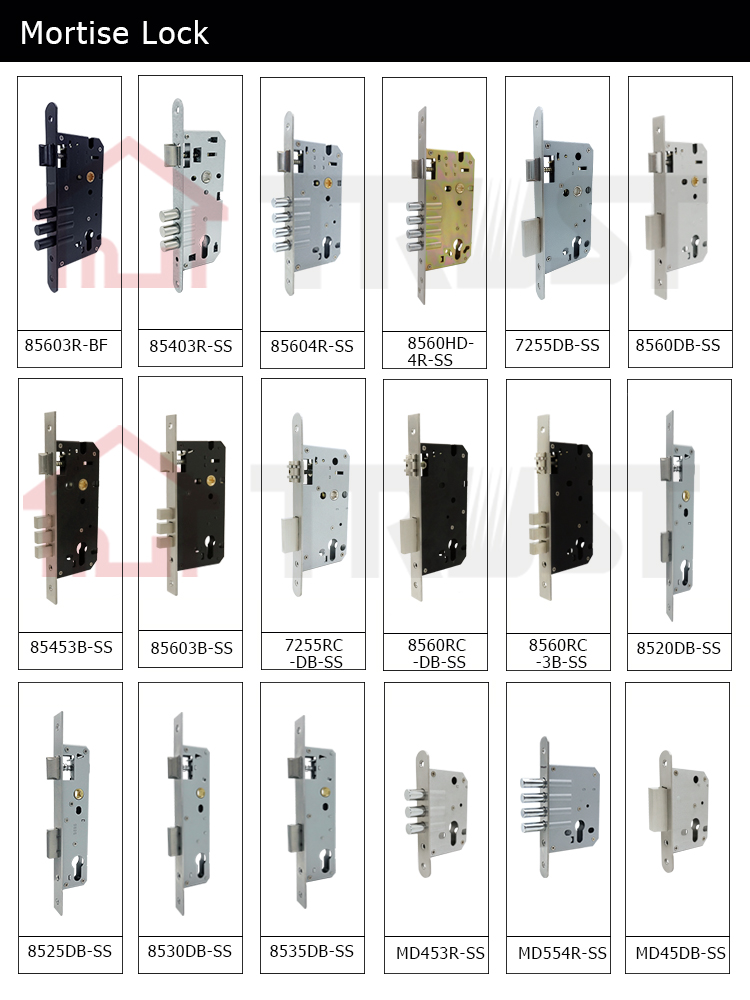

Related Products

Certifications

.jpg

Company Information

.jpg

FAQ
1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Bodyand other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.
4 :Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude for the first time.
