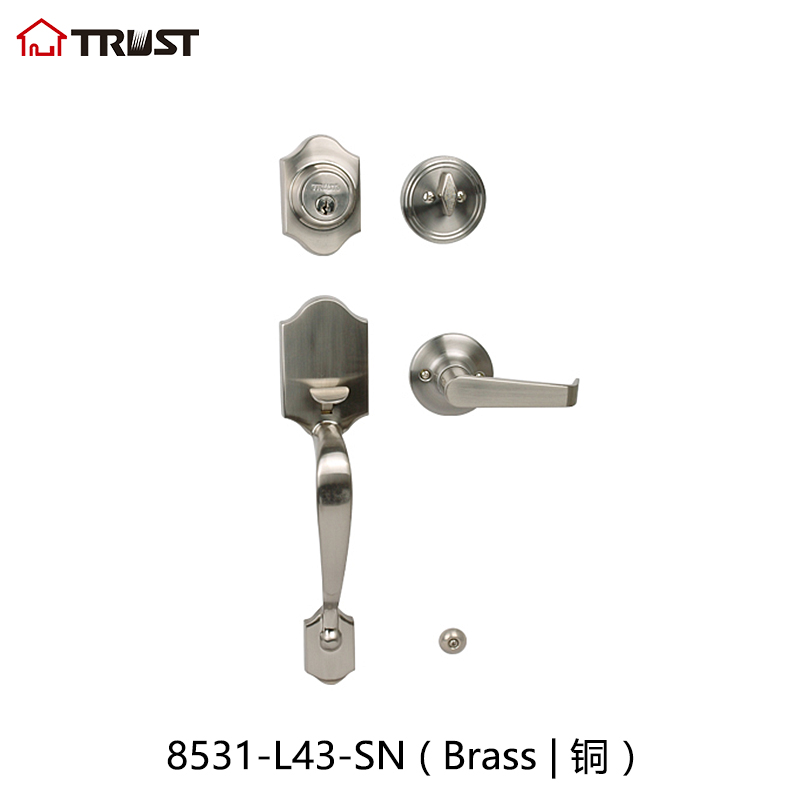

Trust 8531-L43-SN Entry Handle Lockset Single Lever Grip Handle
8531-L43-SN
FOB
Quantity:
  • Material:ZAMAK
  • Finish:SN,AB,AC...
  • Cylinder:5 pin removable core
  • Function:Single or Double Cylinder
  • Door Thicknes:35mm-45mm
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:8531Z-L43-SN
  • Certification:Ansi Grade 3

Product Description

Key Specifications/Special Features:

  • 50 (Chelsea) handle , Round knob (interior)
  • Function: single cylinder
  • Finish: Different Finish
  • Complies with ANSI A156.2 Grade 3 standard
  • Bore: dia. 51mm(2") (upper hole), dia. 54mm(2 1/8")(down hole), dia. 10mm(3/8")(screw hole) for cross bore
  • Door thickness: 35mm-45mm thick
  • Backset: adjustable latch (60mm to 70mm--2 3/8"or 2 3/4")
  • Grip handle: solid forged brass
  • Rosette: solid forged brass
  • Thumb piece: solid forged brass
  • Inside knob(lever): knob: brass; Lever: zinc diecast plated to match finishes indicated
  • Inside rose: wrought brass
  • Cylinder: brass, 5-pin tumbler rekeyable SC keyway, 6-pin keying available
  • Keys: three or five nickel plated brass keys, CMK, MK systems available
  • Latch bolt: 25mm(1")(upper) and 12.5mm(1/2")(lower) throw, brass
  • Front: brass or stainless steel
  • Strike: brass or stainless steel
  • Hand:non-handed
Product Overviews


Packaging & Shipping


Certifications

Handle lockset

Company Information

Handle lockset

FAQ
1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Bodyand other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.
4 :Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude for the first time.
