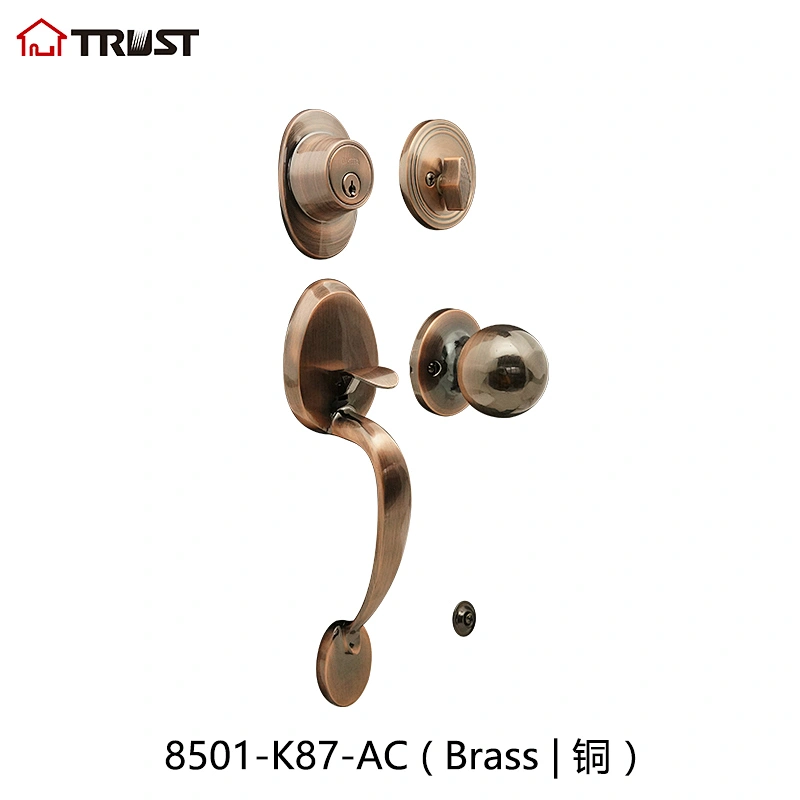

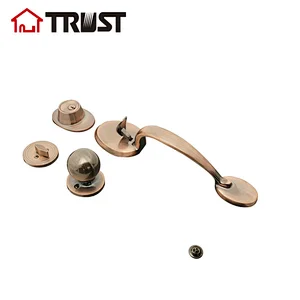

TRUST 8501-K87-AC ANSI Grade 3 Single Cylinder Deadbolt Grip Handle
  • Material:Brass
  • Function:Single or Double Cylinder
  • Backset:60 or 70 mm
  • Key way:SC.KW,YA,C4
  • Cylinder:5 pin removable core
  • Door thickness:35-45 mm
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:8501 C-K87-AC
  • Certification:Ansi Grade 3
Product Description

Key Specifications/Special Features:

  • 1,50 (Chelsea)handle, Round knob (interior)
  • 2,Function: single cylinder

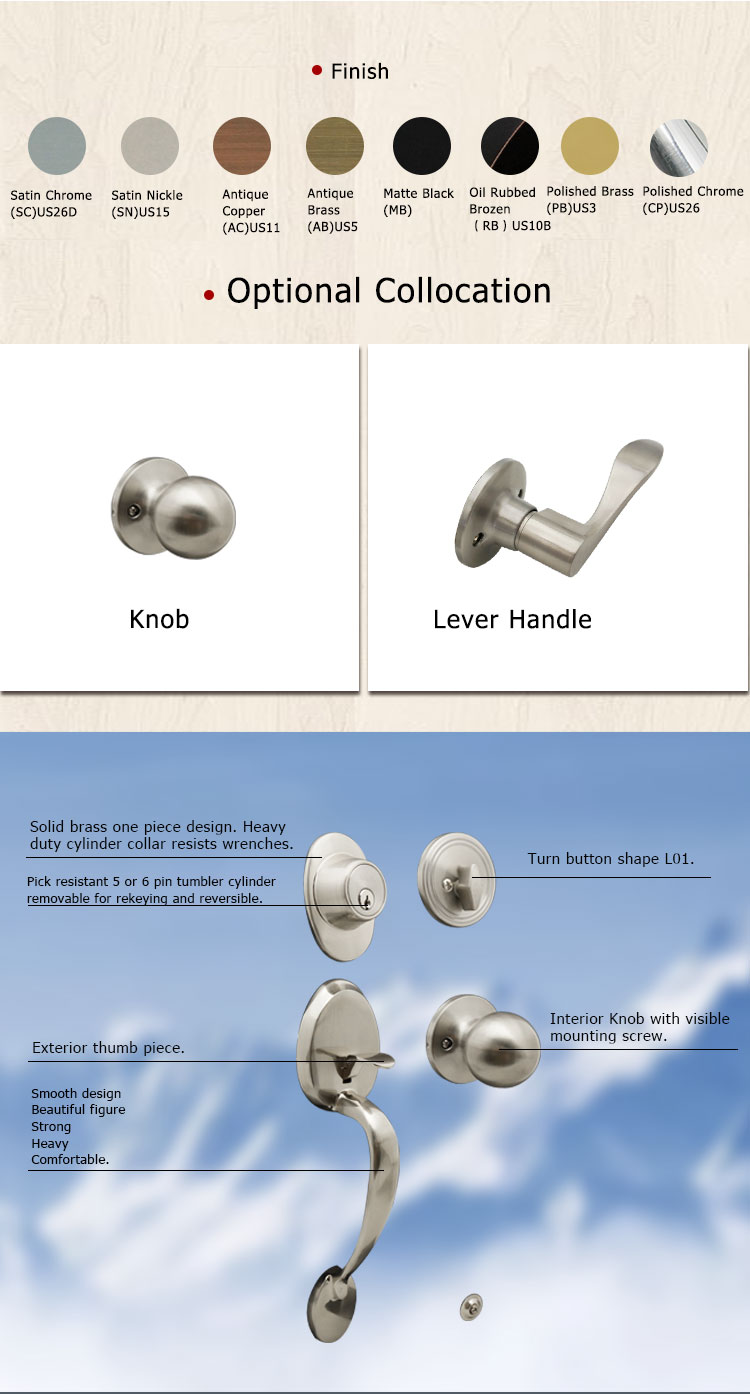

  • 3,Finish: satin nickel,ANTIQUE Brass, Polished Brass
  • 4,Complies with ANSI A156.2 Grade 3 standard.
  • 5,Bore: dia. 51mm(2") (upper hole), dia. 54mm(2 1/8")(down hole), dia. 10mm(3/8")(screw hole) for cross bore
  • 6,Door thickness: 35mm-45mm
  • 7,Backset: adjustable latch (60mm to 70mm--2 3/8"or 2 3/4")
  • 8,Grip handle: zamak
  • 9,Rosette: zamak
  • 10,Thumb piece: zamak
  • 11,Inside knob(lever): knob: zamak; Lever: zinc diecast plated to match finishes indicated12,
  • 12,Inside rose: zamak
  • 13,Cylinder: brass, 5-pin tumbler rekeyable SC keyway, 6-pin keying available
  • 14,Keys: three or five nickel plated brass keys, CMK, MK systems available
  • 15,Latch bolt: 25mm(1")(upper) and 12.5mm(1/2")(lower) throw, brass
  • 16,Front: brass or stainless steel
  • 17,Strike: brass or stainless steel
  • 18,Hand: non-handed

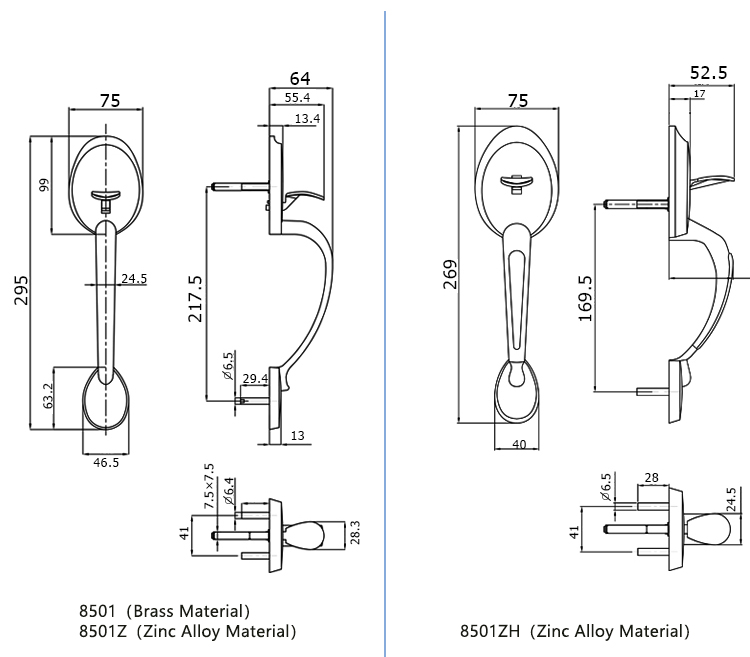

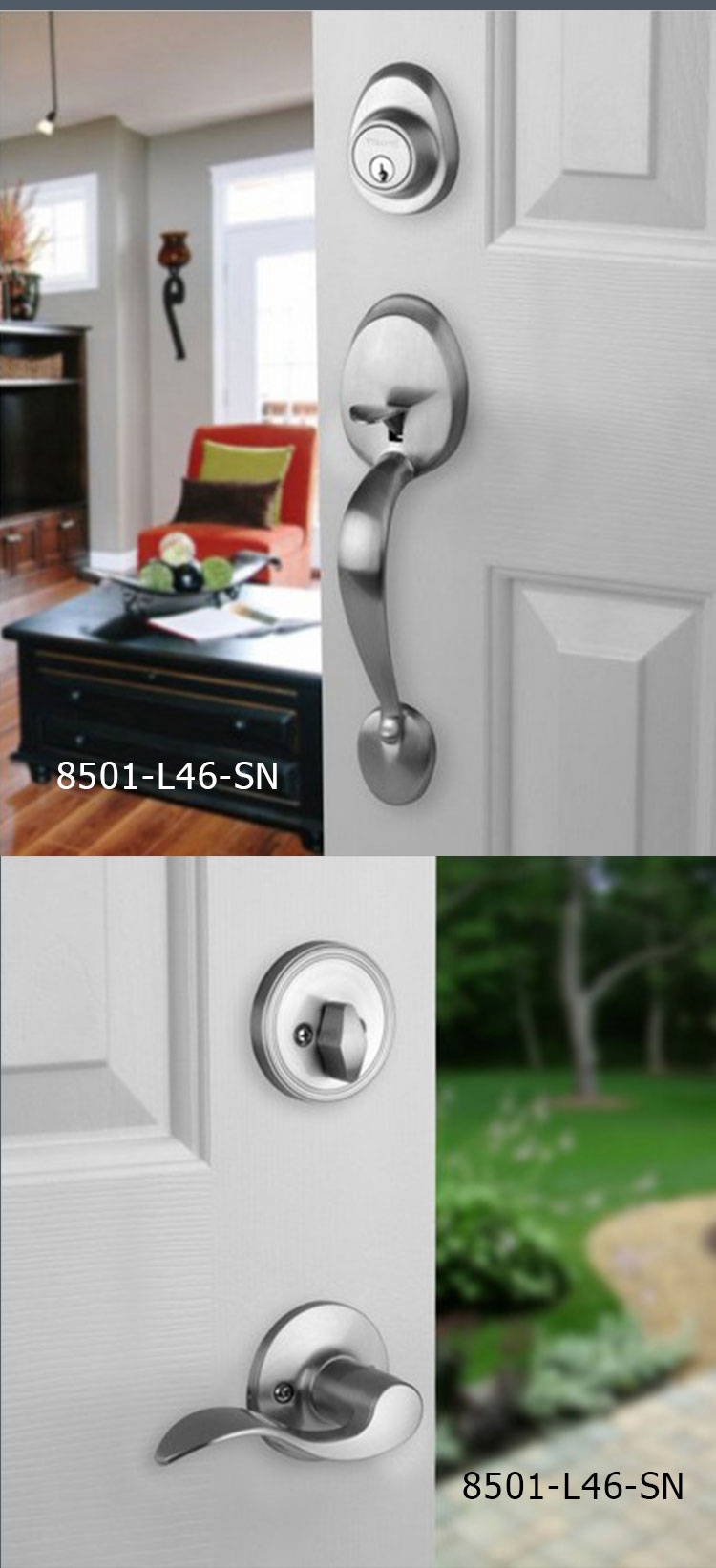

Product Overviews

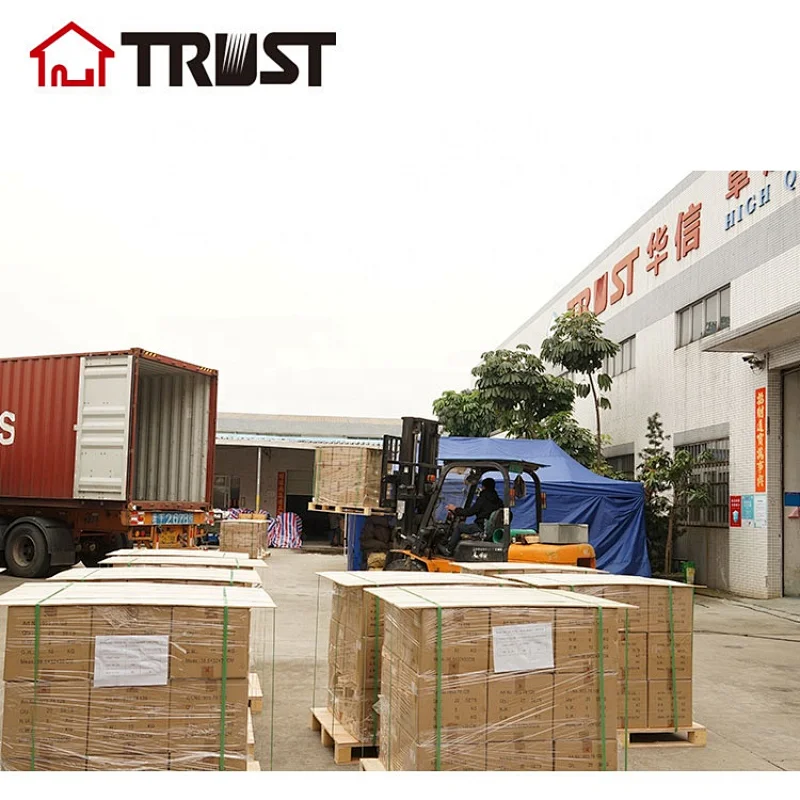

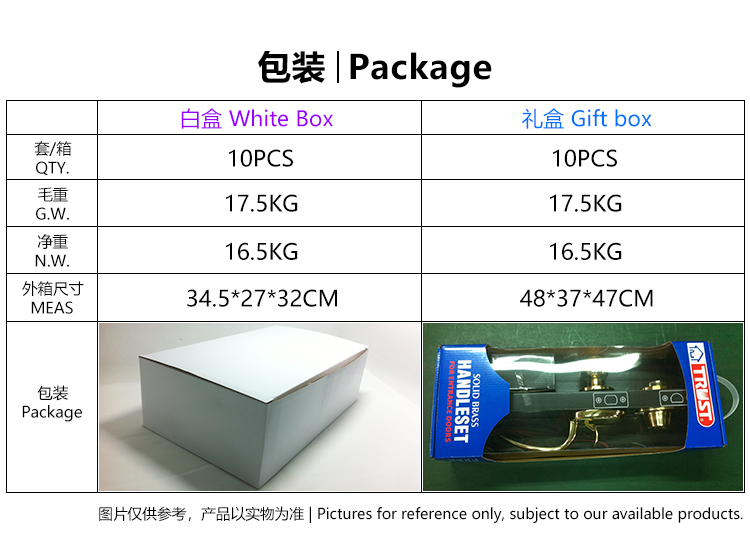

Packaging & Shipping



Handle lockset

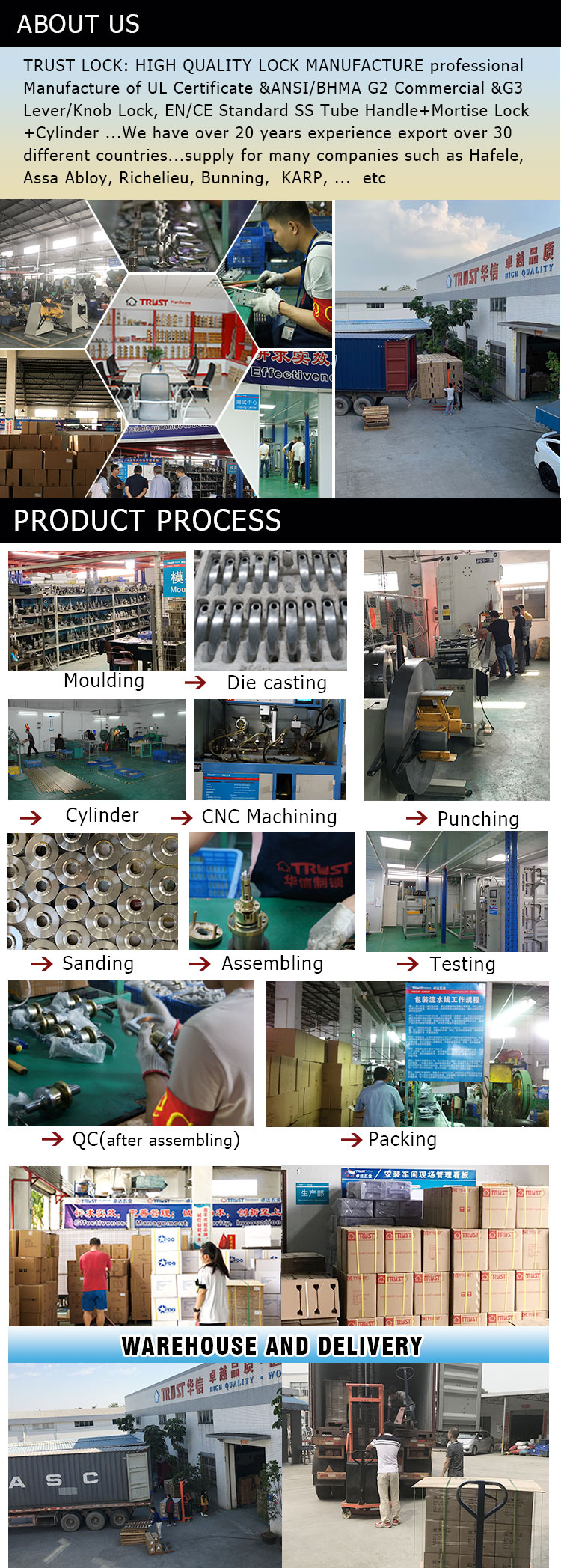

Company Information
