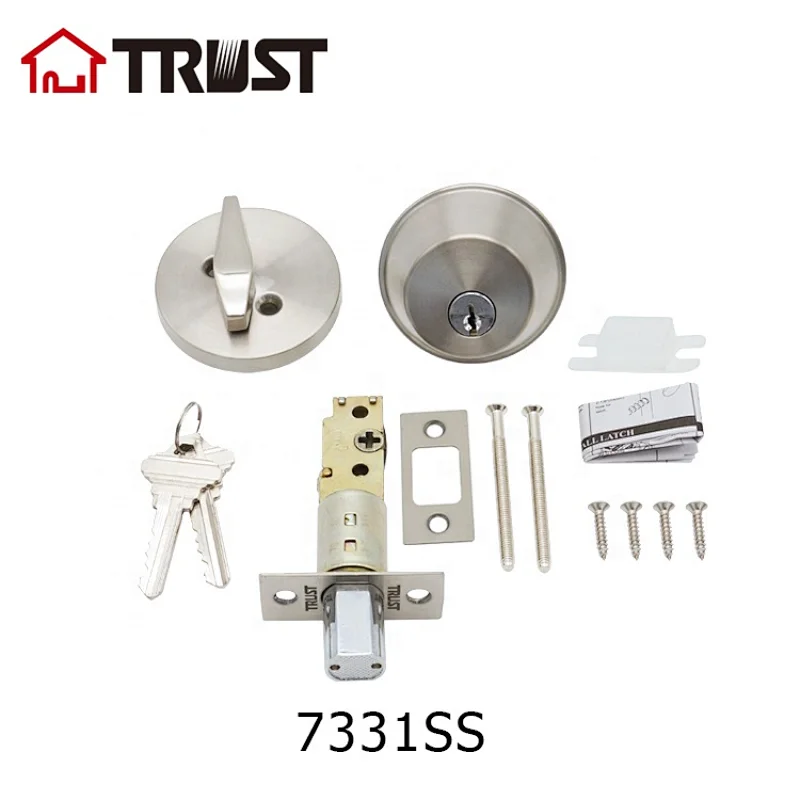

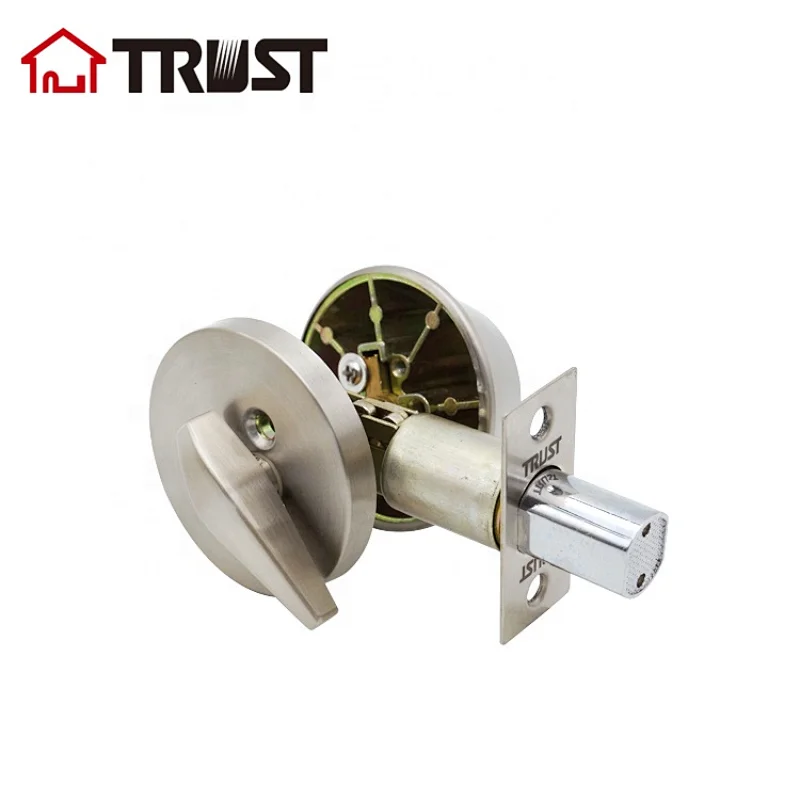

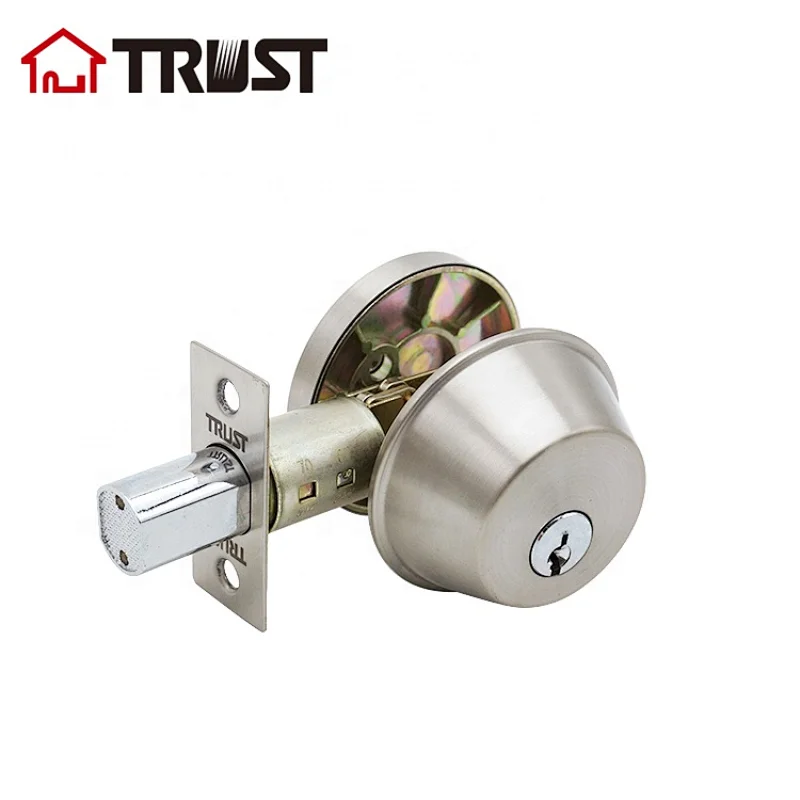

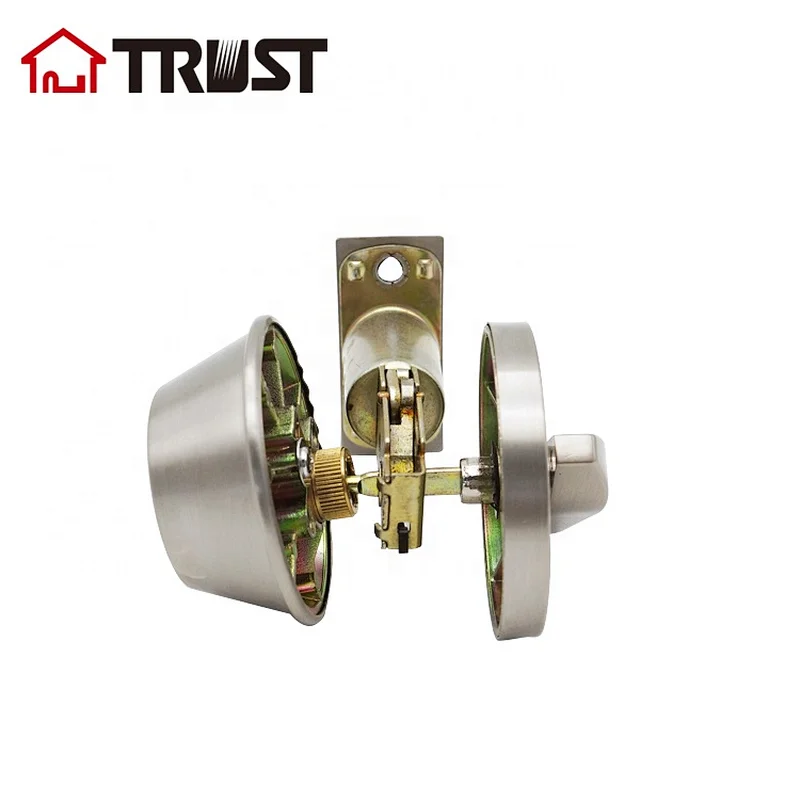

TRUST 7331-SS ANSI Grade 3 High Security Single Cylinder Dead-Bolt Thumb Turn Adjustable Latch
  • Material:SS304
  • Type:Grade 3 Deadbolt
  • Function:Single open or Double open
  • Finish:SN/15, SC/26D, PB/3, RB/10B,SS/32D,
  • Keyway:SC1, ( KW1, C4, YA)
  • Cylinder:5 pin or 6 pin brass cylinder
  • Backset:Adjustable 2-3/4"(70mm) standard, 2-3/8"(60mm)
  • Latch:full 1"(25mm) throw deadbolt with hardened bolt
  • Quality:ANSI Grade 3
  • Door thickness:1-3/8"(35mm) to 2"(50mm) thick
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:7331-SS
  • Certification:ANSI grade 3
Product Description


1·Full(1") 25mm throw with anti-saw hardened steel insert.

2·Adjustable backset 60mm(2-3/8") and 70mm(2-3/4") as standard.

3·Fit doors 40mm to 50mm(2") thickness, easy to install.

4·Grade 3: Exceeds 200,000 cycles

5·Single Square corner latch plate

6·Finish: SS, PB, AC, AB, CP, SC or required

7·Pack: Box Pack or View Pack

8. Door Prep:Cross bore 2-1/8”(54mm),Edge bore 1”(25mm),latch face 1”x2-1/4”(25x57mm)

9.Keyway:SC1,KW1 or Ya

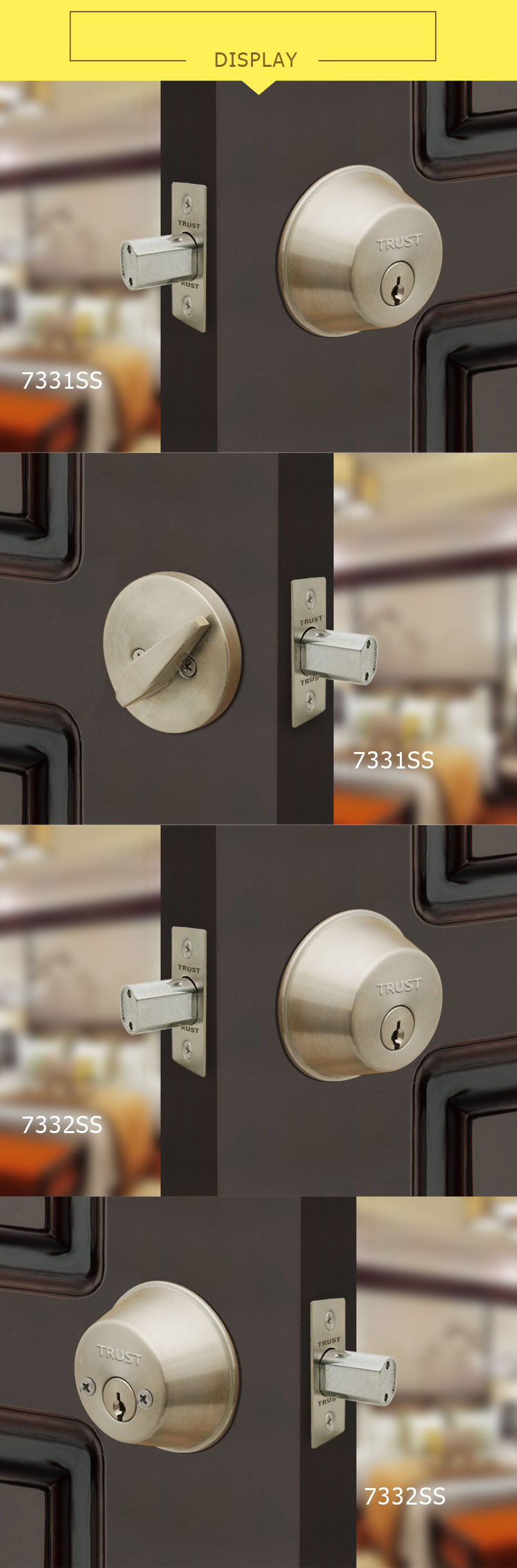

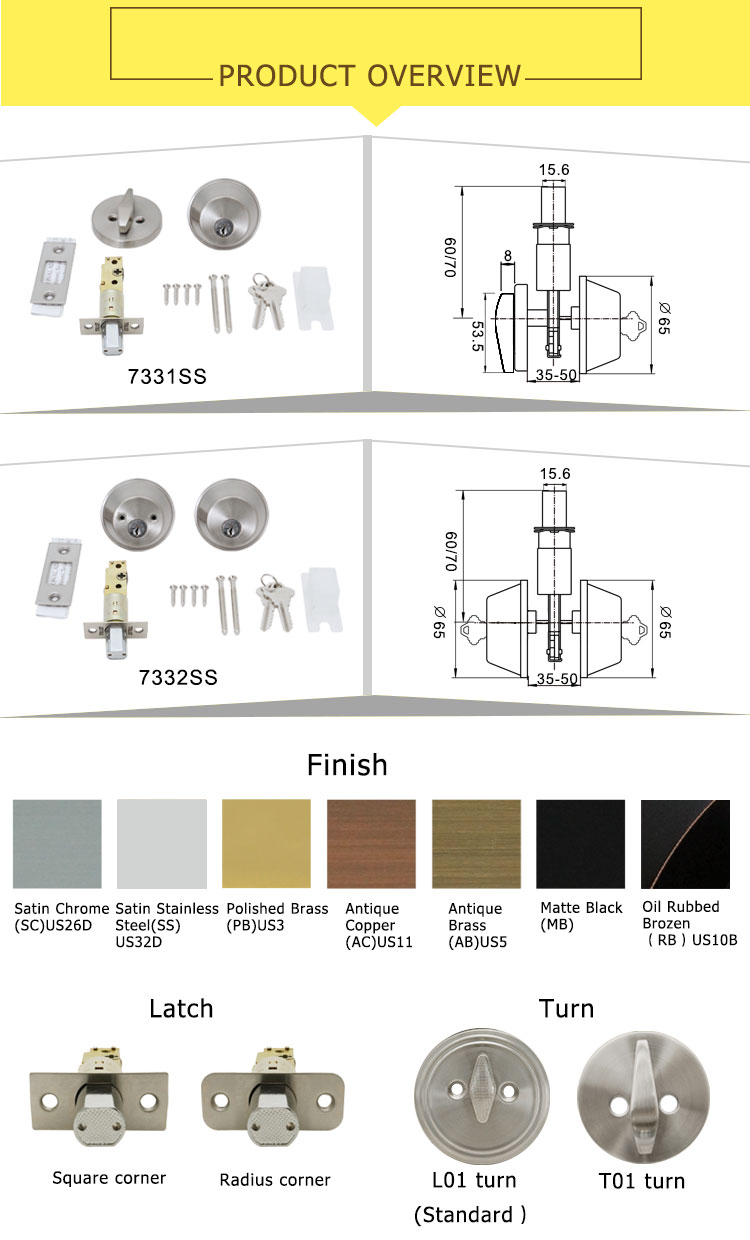

Product Overviews

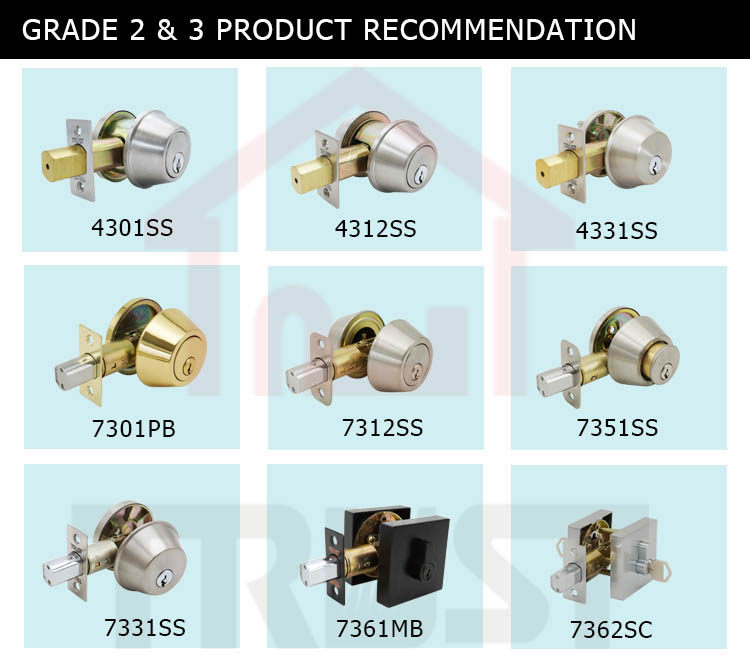

Related Products

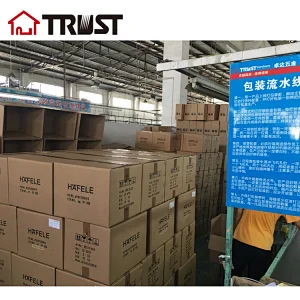

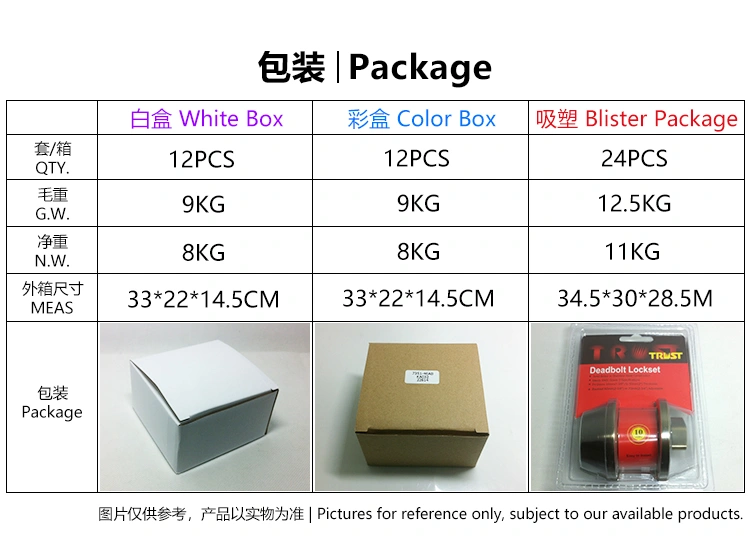

Packaging & Shipping

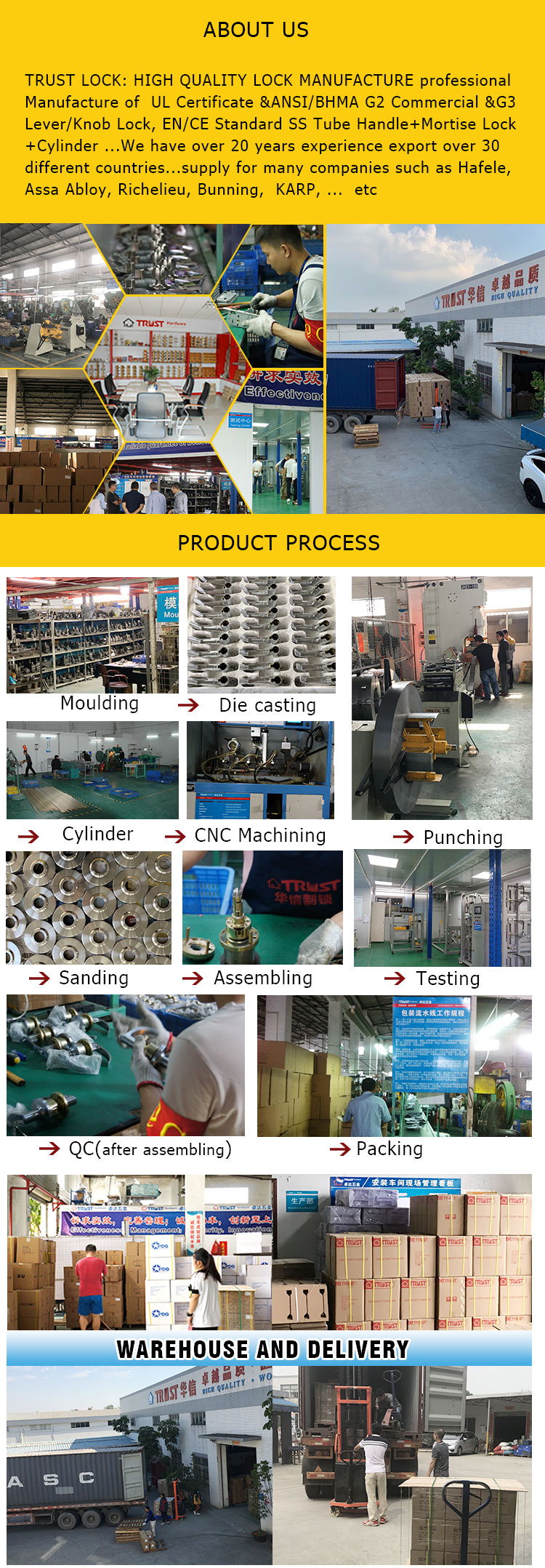

Company Information


1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Bodyand other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.
4 :Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude for the first time.
