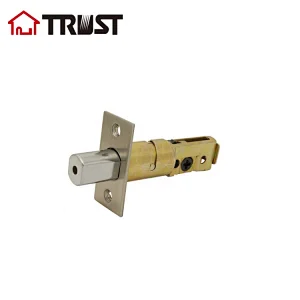

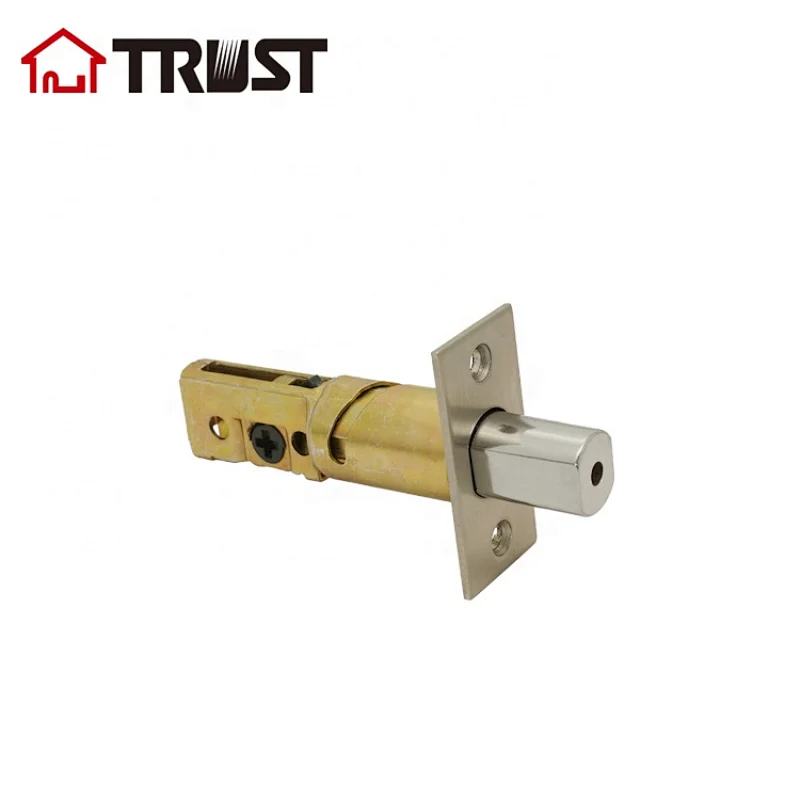

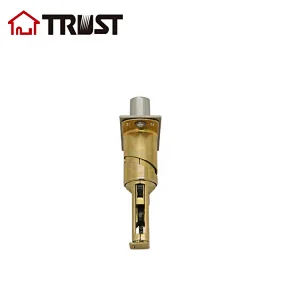

TRUST 4301DE 6ZXFSS Electronic Latch Adjustable 60/70 Backset Door Bolt For Smart Lever Lock
  • Application:Special Design for Commercial Electronic Deadbolt use
  • Certification:ANSI Grade 2 over 450000 cycle test
  • Function:Deadbolt
  • Finish:SS (PB, AB, BLACK)
  • Backset:Adj 60mm and 70mm Backset
  • Tongue:Tapered-shaped tongue, Zamak material
  • Hub:Cross Hub
  • Face plate:28.5x57x2.0 or 25.4x57x2mm, Square corner, SUS304
  • Strike plate:28.5X70X2.0mm,Square corner, SUS304
  • Door Thickness:35-50mm
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:4301DE 6ZXFSS
  • Certification:ANSI Grade 2
Product Description

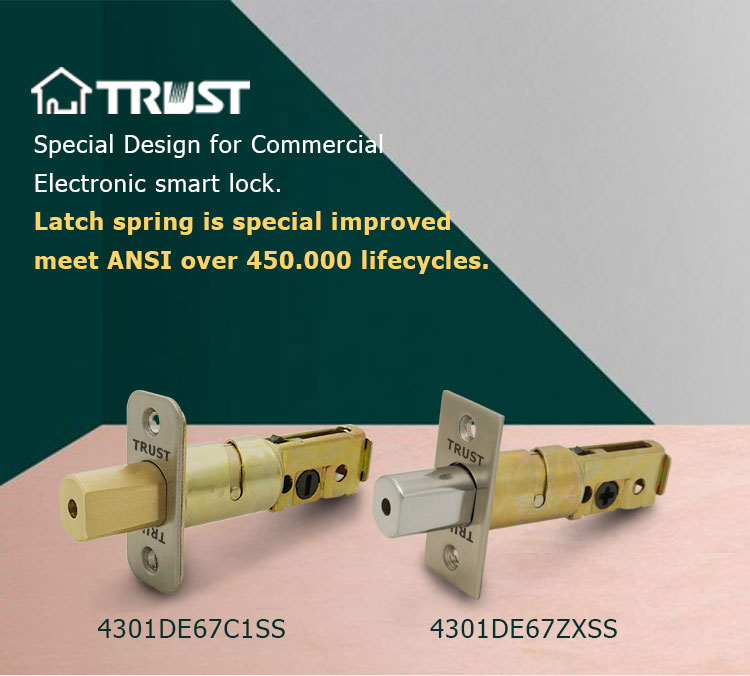

Commercial Electronic Deadbolt, Square Corner,Vertical Hub, ADJ 60~70mm BST, Tapered-shaped tongue,
Grade 2 Commercial Deadbolt Latch 60/70mm Adjustable Backset.
Square Corner 28.5*57*2 mm SUS304.

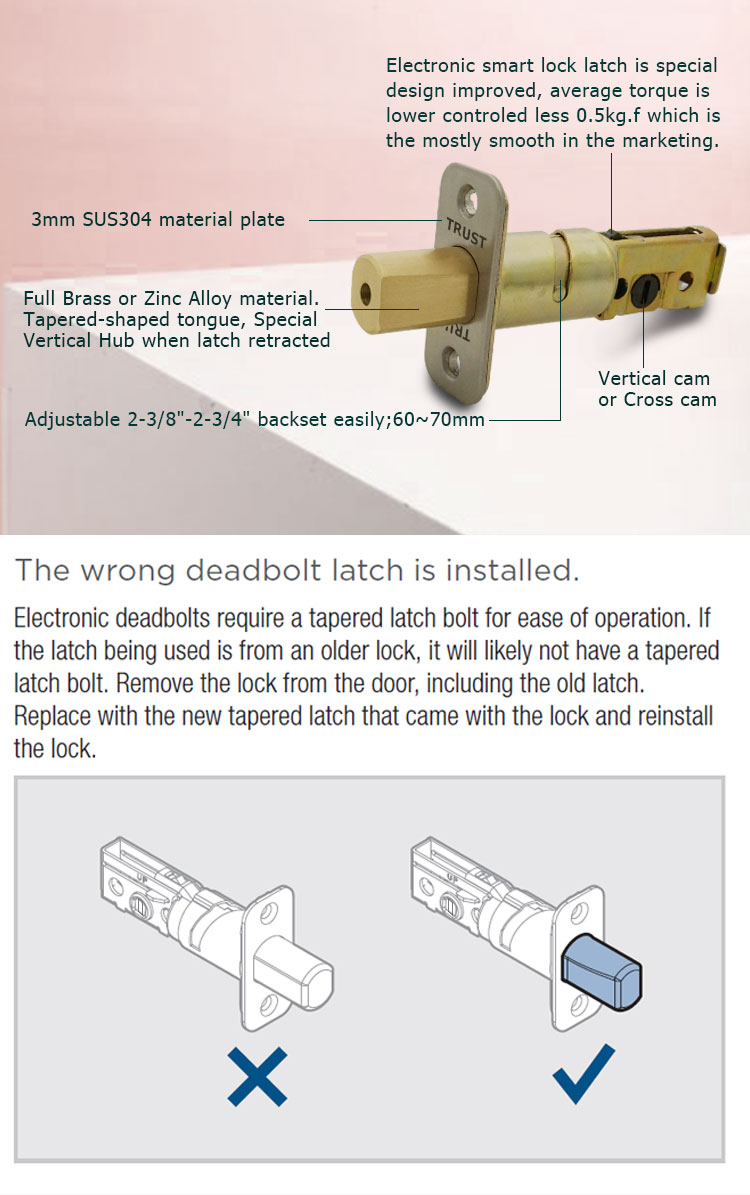

Special Design for Commercial Electronic Deadbolt use,over 450000 life cycle test;
Tapered-shaped tongue,
Special Vertical Hub when latch retracted .

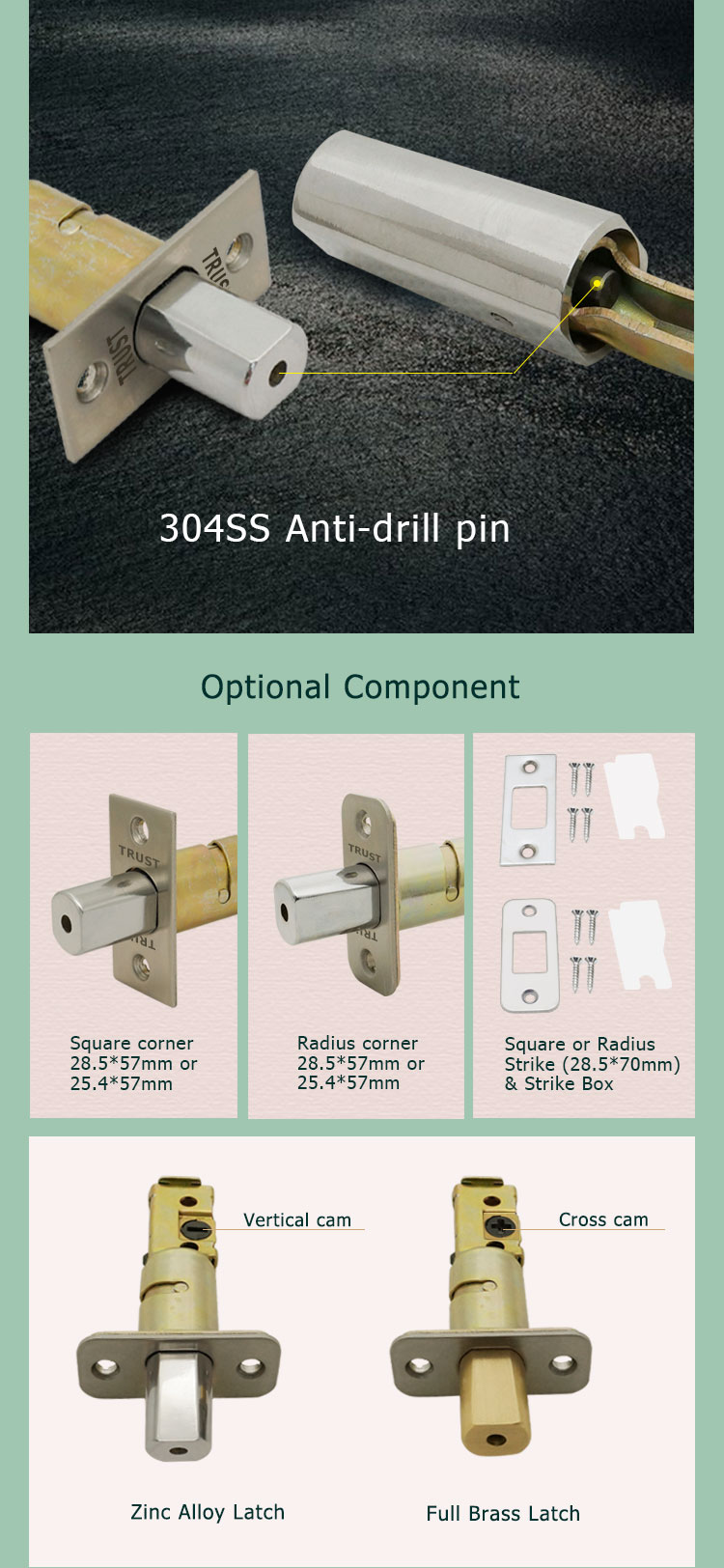

(Strike and strike box and screws are optional)

  1. Special Design for Commercial Smart Electronic Deadbolt use,
  2. Meet ANSI/BHMA Grade 2 over 450000 life cycle test;
  3. 60~70mm BST Adjustable
  4. Special Tapered-shaped tongue design for ease of operation torque which is better for battery longer user;
  5. Tongue material zamak Chrome plated over 48 hrs salty-spray test;
  6. Tapered-shaped tongue zamak is standard, Brass material also available.
  7. Cross Hub as standard, Special Vertical or Horizonal Hub also available.

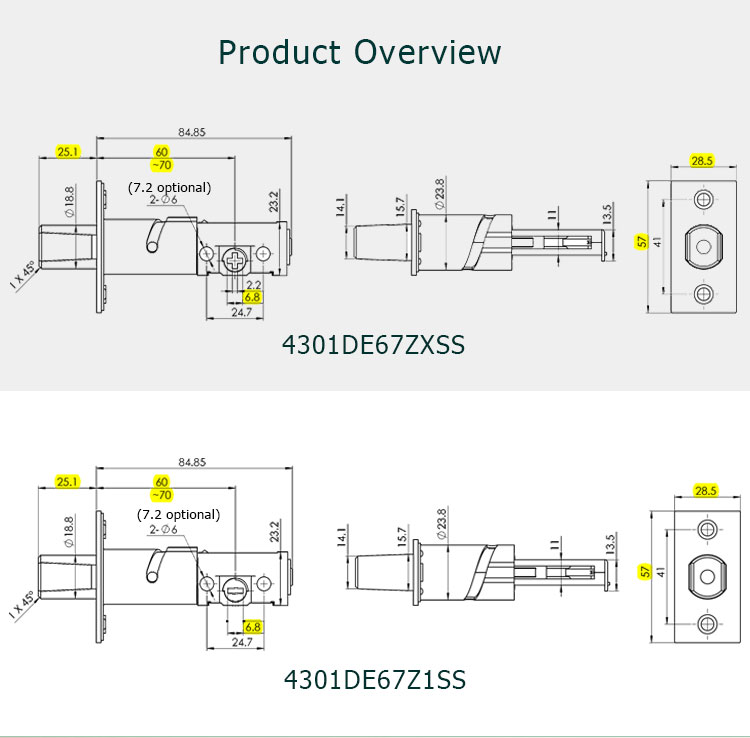

Product Overviews


Related Products

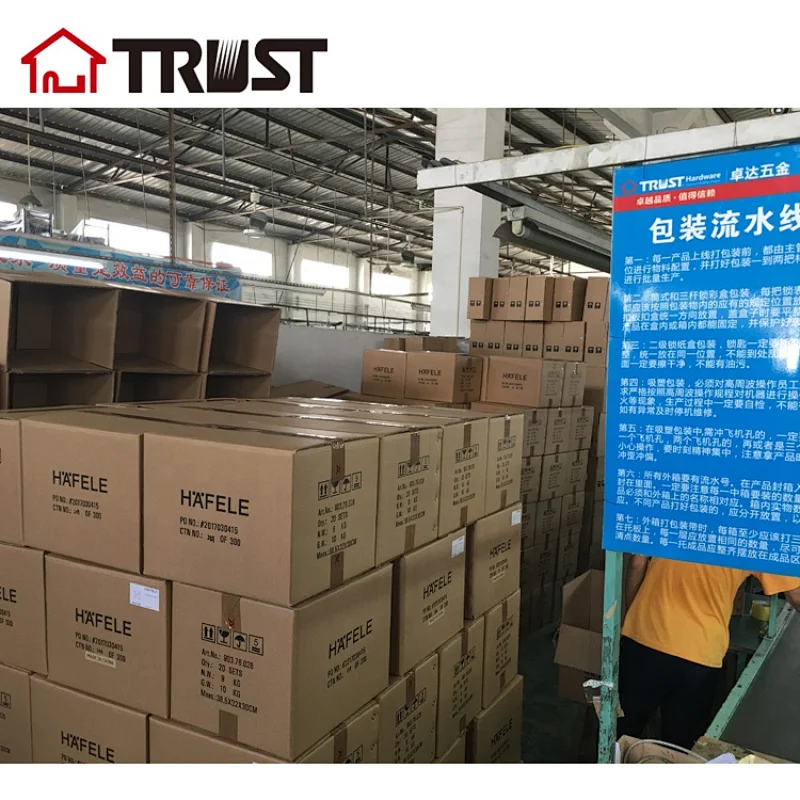

Packaging & Shipping

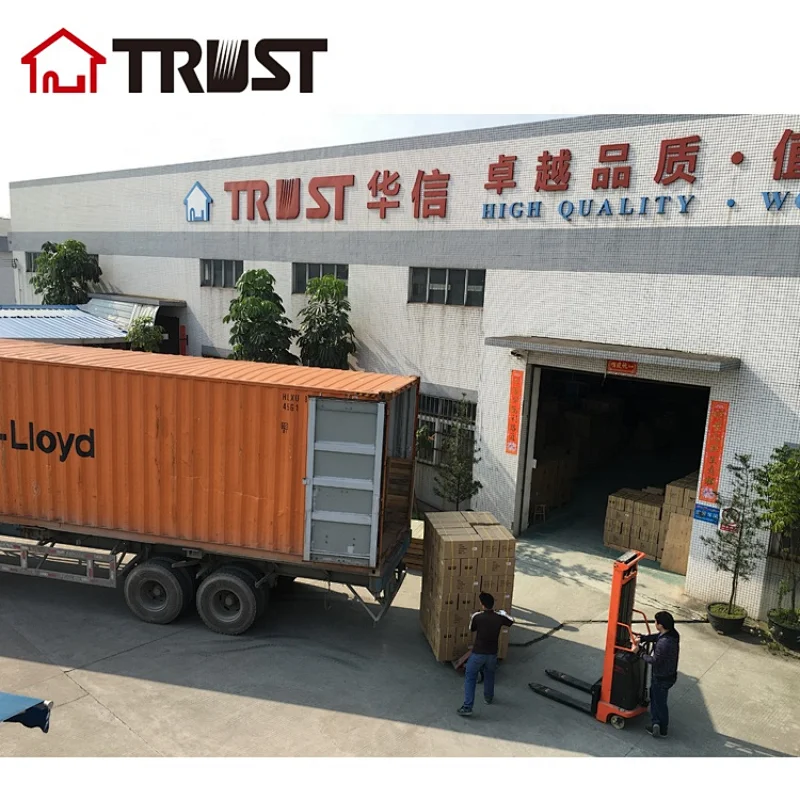

Company Information

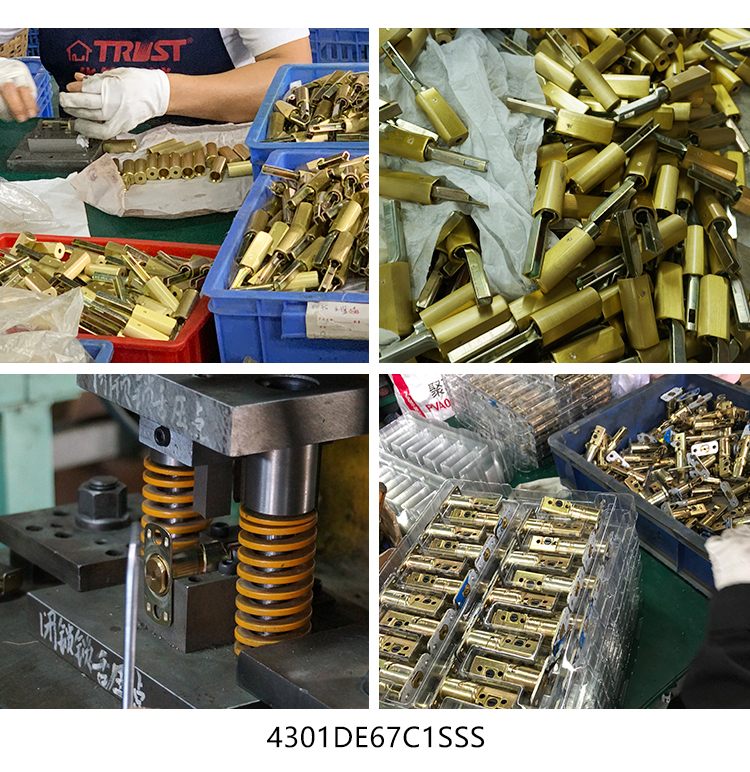

1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Bodyand other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.
4 :Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude for the first time.
