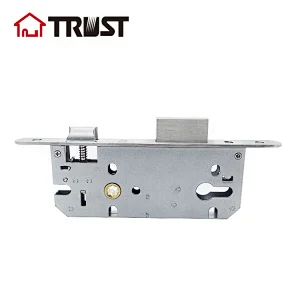

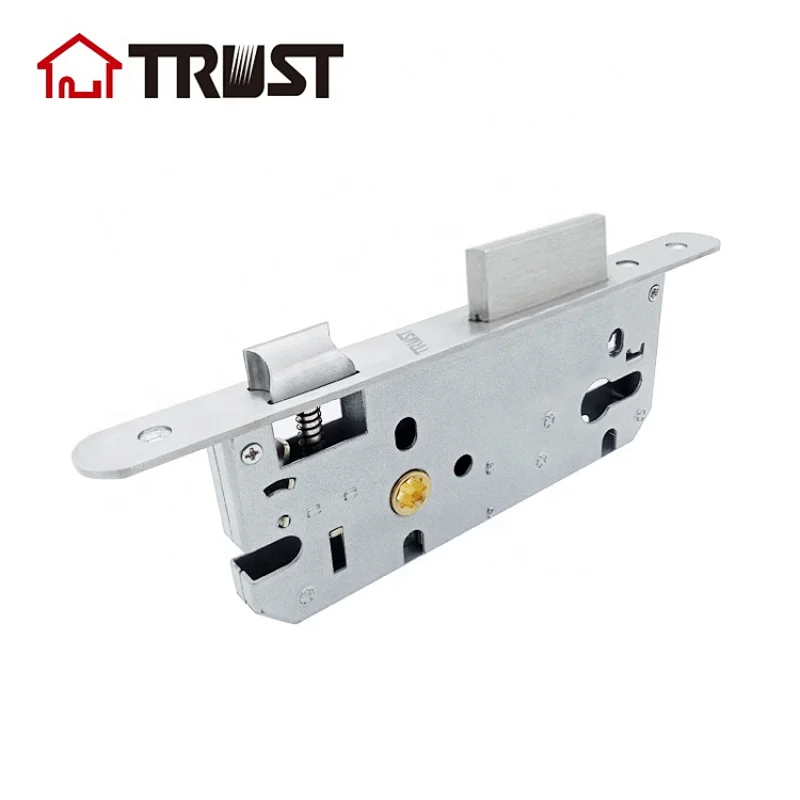

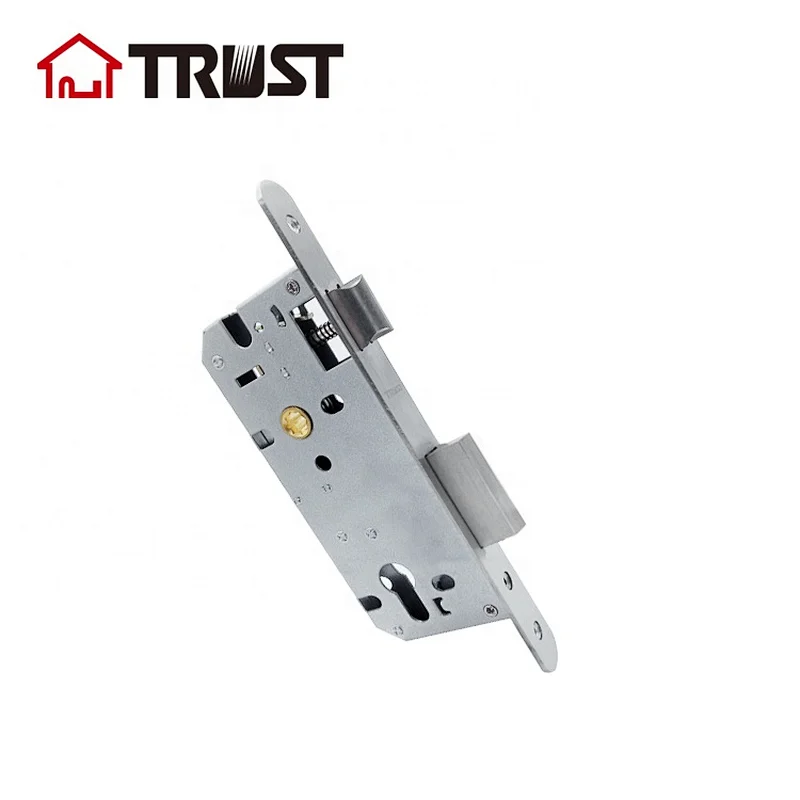

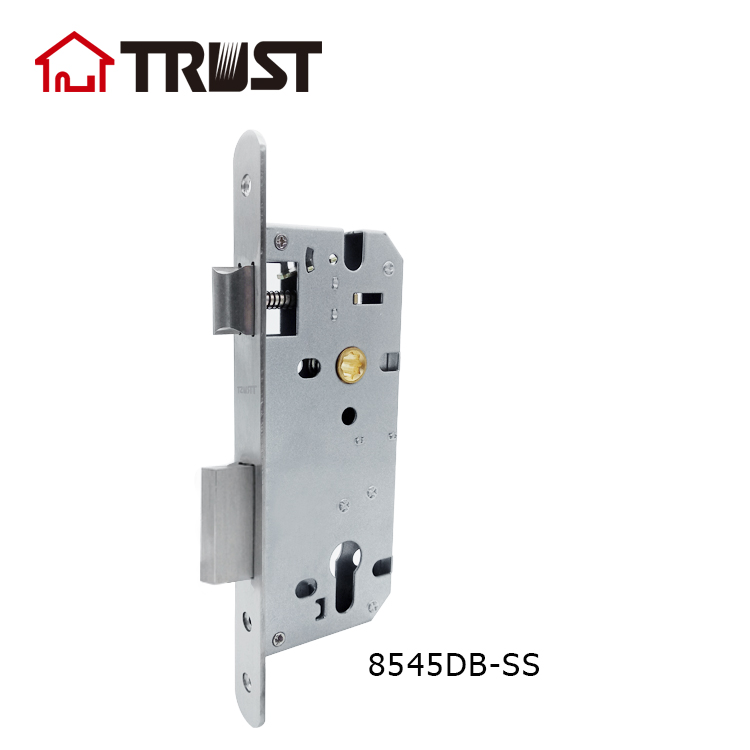

TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body
TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body
TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body
TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body
TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body
TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body
TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body
TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body
TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body
TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body
TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body

TRUST 8545-DB -ET 45mm backset narrow mortise lock body mortise door locks for wooden or steel door Euro Standard lock body

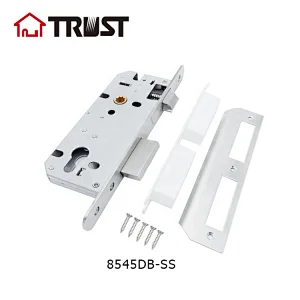

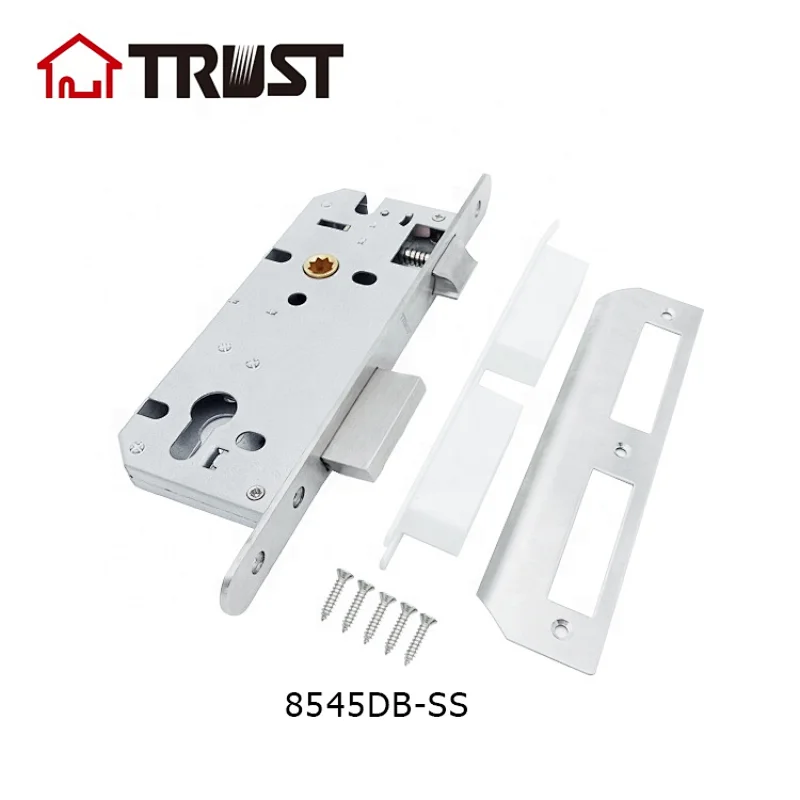

Model NO.
8545DB-SS
Delivery
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:8545 ETDB-SS
  • Backset:40, 45, 50, 60mm
  • Function:ET, BK, PS , BD
  • Fit Doors:Fit doors 35-50 thick

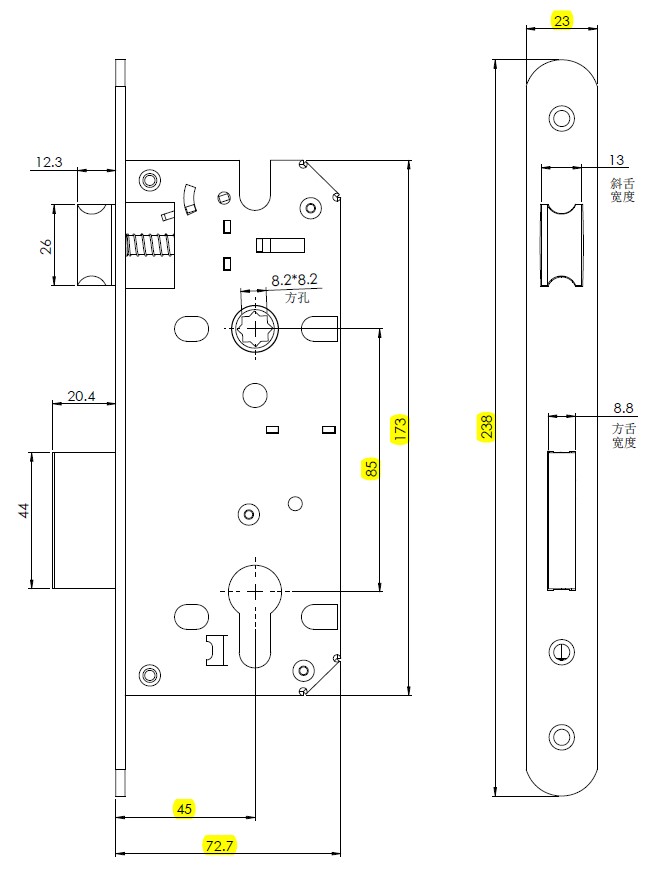

  • Forend:304SS material 238x23x3 mm, SF: Square Forend, RF: Round Forend
  • Strike:173x42x1.2mm Curved type (silent design),
  • Certification:EN12209:2016 /DIN 18.251 class 3 Exceeds 300,000 cycles
  • Package: QTY:20PCS,N.W:13.8,G.W:14.8,MEAS:30*26*24CM
Product Description


TRUST 8545 -ET-DB High Security Euro profile Mortise lock body Single Deadbolt door lock EN CE Certificate Fire Rated CC85 Backset 45mm

Special Design for Exterior & Interior Doors & All Fire Rated Doors.

Lockcase According to EN12209:2016 /DIN 18.251 class 3
85 Series Mortise Lock, CTC: 85mm; Bst: 45mm, 60mm
Reversible Latch: 304SS material Curved type latch bolt (More silent design); Deadbolt (1 pc Single DeadBolt ), Steel NP cam, Euro hole;
Forend: 304SS material 238x23x3mm, SF: Square Forend, RF: Round Forend
Strike:Curved type(silent design), 173x42x1.2mm, ;
Lockcase: Sliver Lacqure as standard; (Black Lacqure as optional;)

1,Function: ET ( Entrance), BK (Bathroom, Privacy), PS( Passage ),, BD( Bedroom with 2 pcs Skeleton keys)

2,Fit Doors: Fit doors 1-3/8"( 35mm )to 2"(50mm) thick

3,Backset: Available in 40,45,50,60mm

4,Latch: Full 1"(25mm) throw square bolt

5,Front: square corner as standard, radius corner optional. Made of Stainless steel, Solid Brass or Iron.

6,Strike: Square 1.2mm thick as standard, radius corner optional. Made of Stainless Steel, Solid Brass or Iron.

7,Cylinder: Equiped with 5 or 6 pin Euro Profile Cylinder with YA or KW or C4 keyway.

8,Handle: equiped with Solid SS LH series, Tube SS TH series, Zinc Alloy ZH series, SS with PLATE LHP, THP, ZHP series

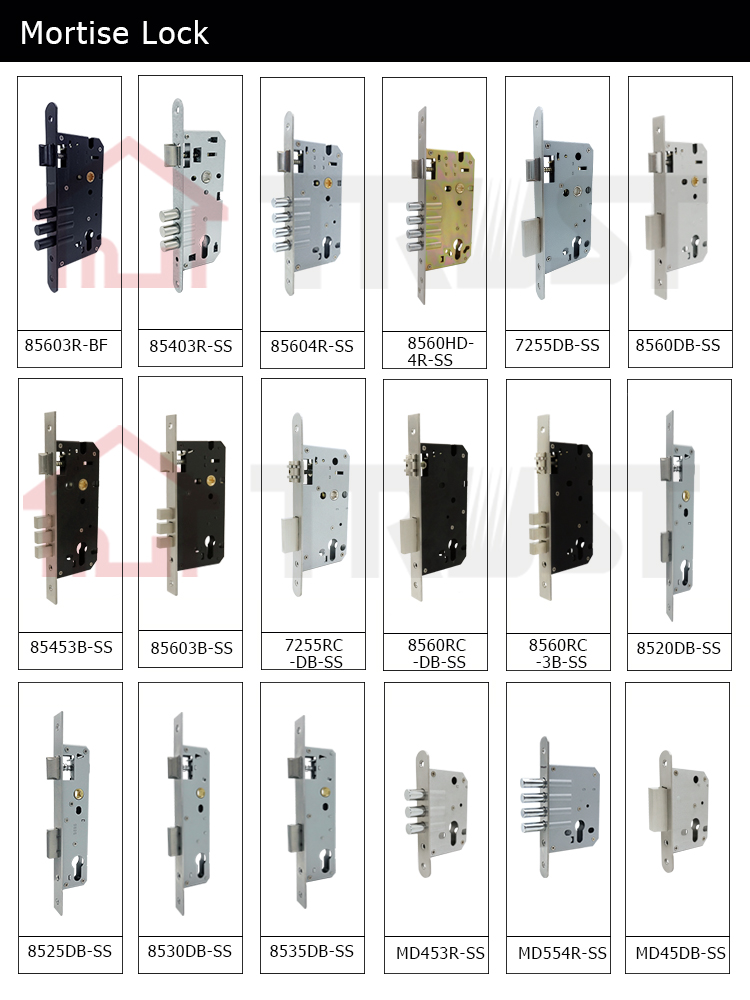

Related Products

Certifications

.jpg

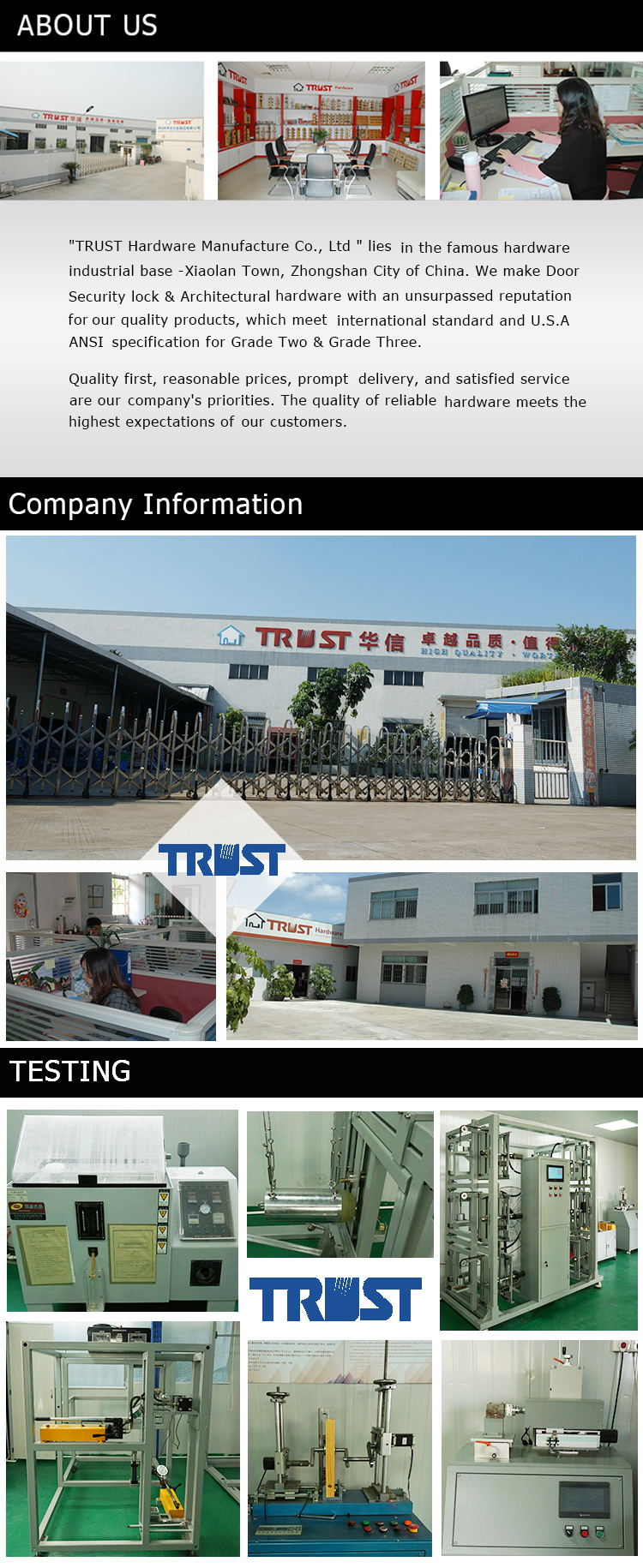

Company Information

.jpg

FAQ
1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Bodyand other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.
4 :Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude for the first time.
