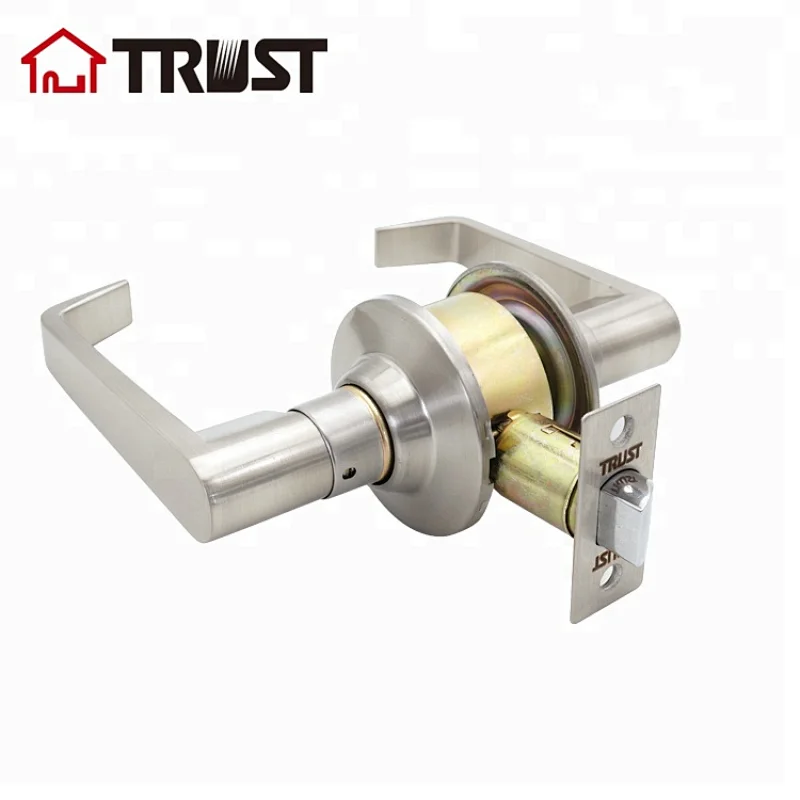

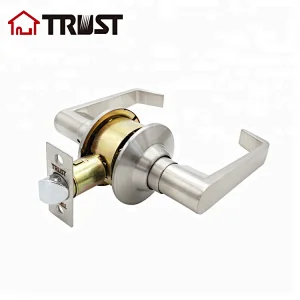

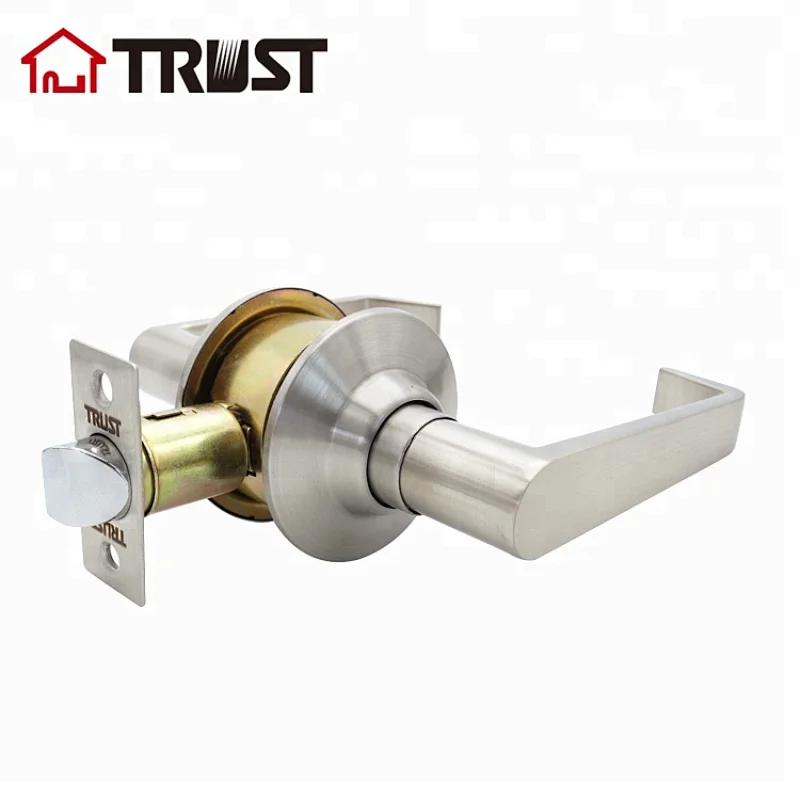

TRUST 3433-SN Interior Doors Passage Function American Style Ansi Grade 3 Cylindrical Lever Door Lock

• Meterial:Zinc Alloy
• Type:Grade 3 Cylindrical Lever Lock

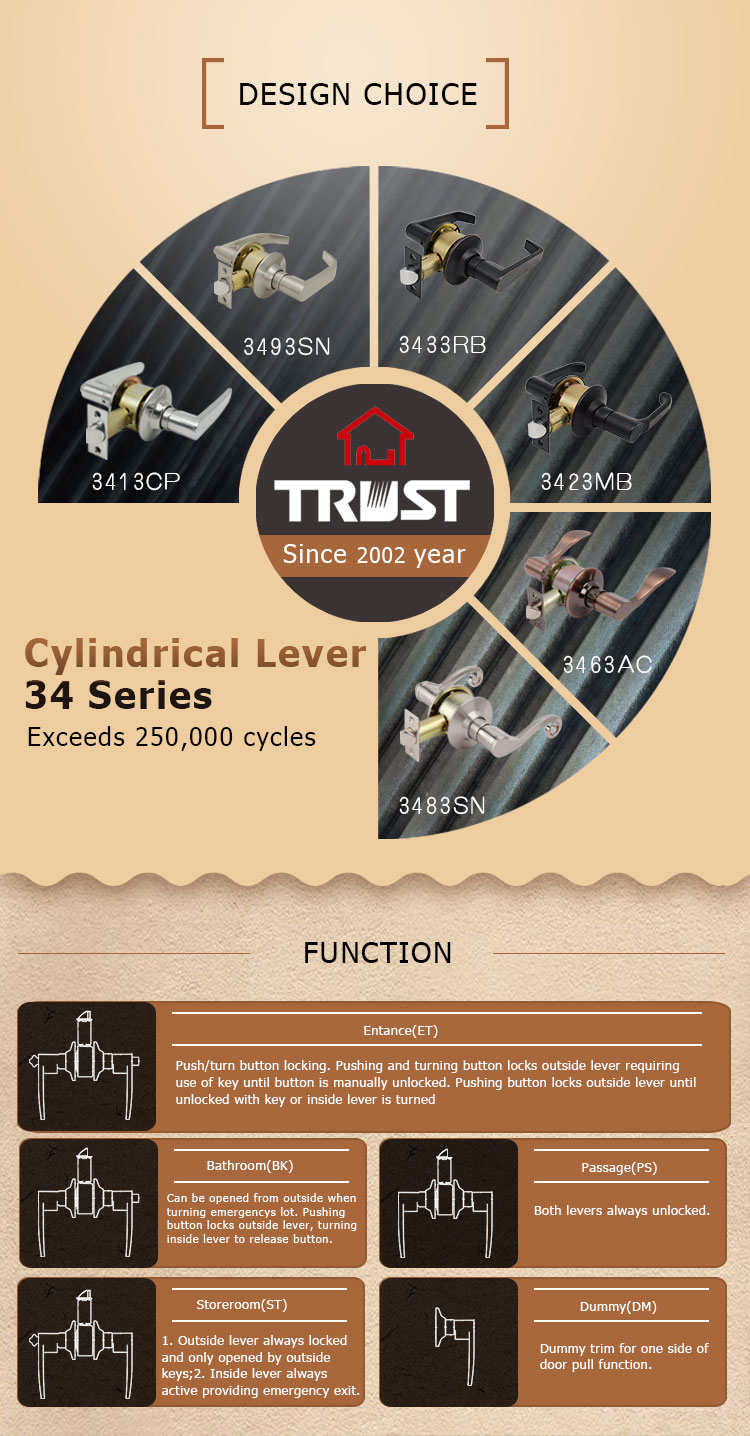

• Function:PS(ET,BK,CL,CM,ST)
• Finish:SN/US15, SC/26D, PB/US3
• Keyway:SC1,KW1,Ya or C4 optional
• Backset:2-3/8"standard 2-3/4"optional
• Cylinder:5 pin brass cylinder
• Latch:1/2 throw dead latch and spring latch
• Quality:ANSI Grade 3
• Door Thickness:1-3/8"(35mm) to 2"(50mm)
• Place of Origin:CN;GUA
• Brand Name:TRUST
• Model Number:3433-SN
• Certification:ANSI grade 3

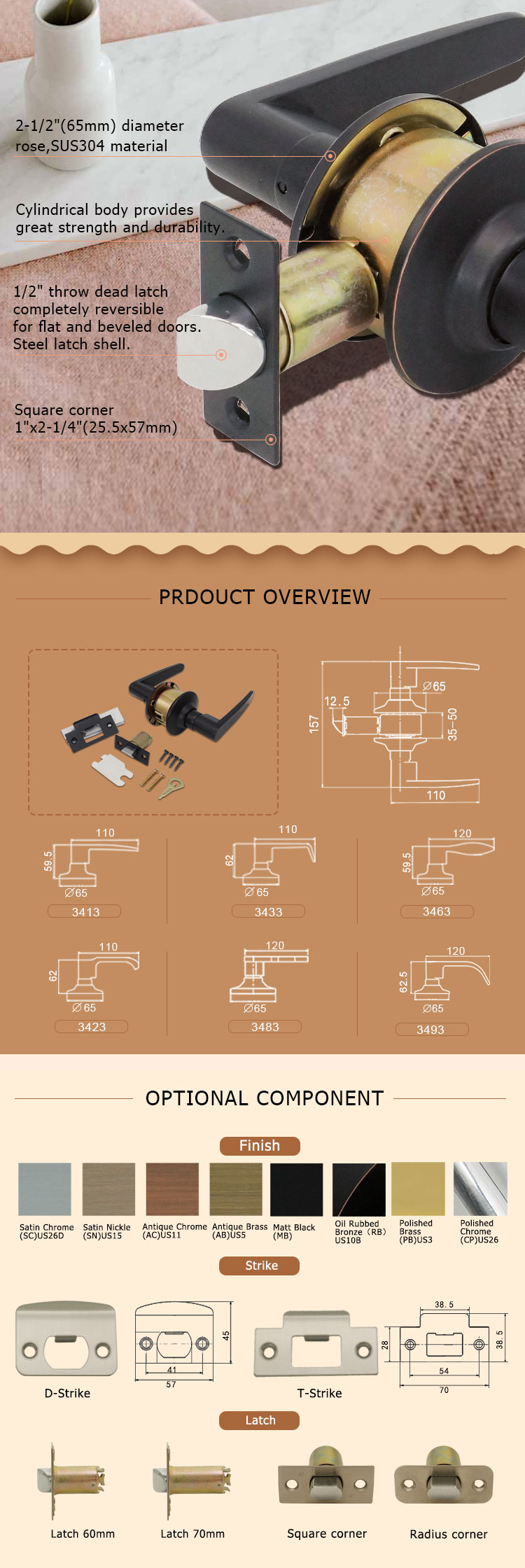

1.Construction :.Cylindrical body

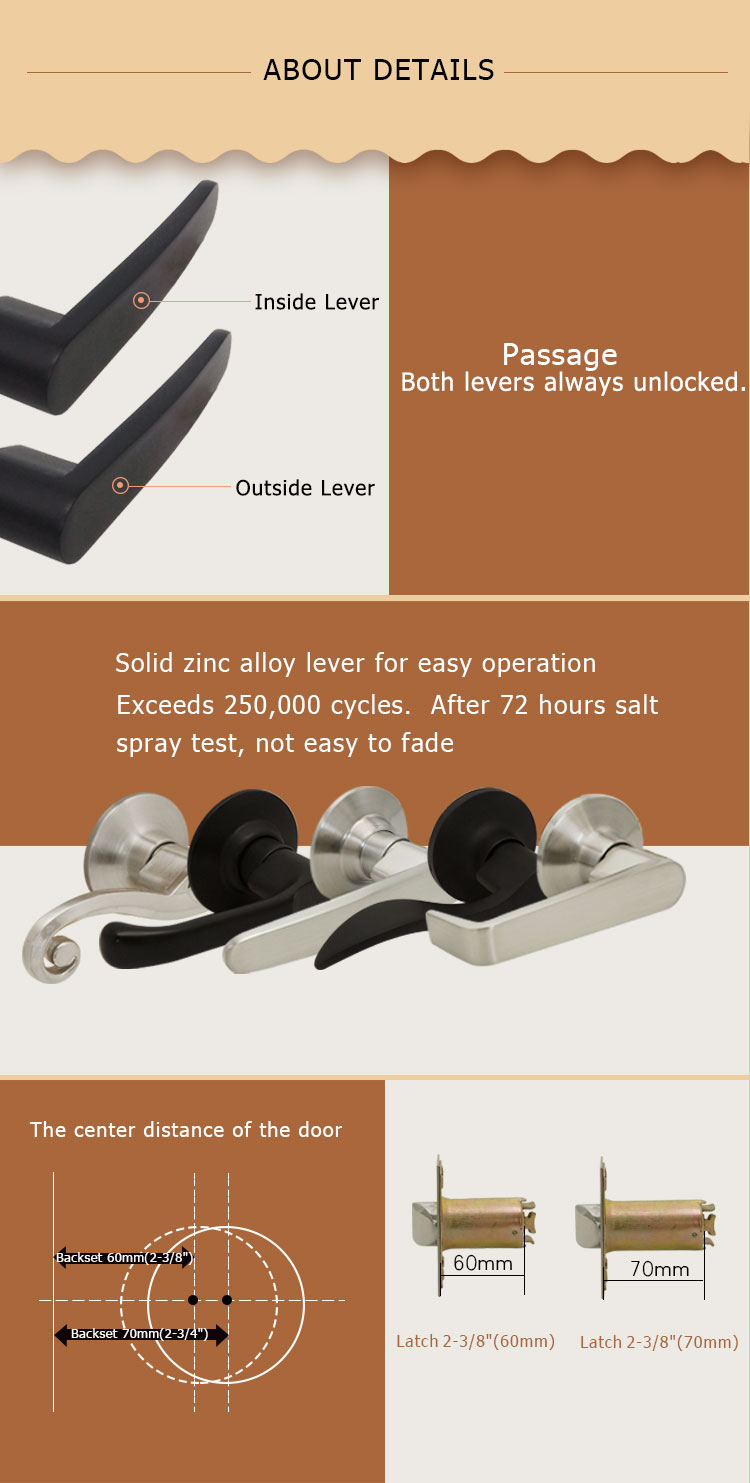

2.Latch: Fixed latch 60mm(2-3/8") as standard, 70mm(2-3/4") OR adjustable 60/70mm is also available upon request.

3.Faceplate:Changeable square corner 25x57mm standard, radius corner also available

4.Strike:"T"Strike 38x70mm as standard; Full-Lip Strike also available upon request

5.ROSE: Small Rose(65mm) as standard,M(70MM) & L(75mm) also available
Wrought Brass, Bronze or Stainless Steel

6.THICKNESS: Fit wood or metal doors from 35mm(1-3/8")to 50mm(2")

ANSI Grade 3 guarantee for over 200,000 life cycles

RH (Right handed) as standard, LH (left handed) must be specified when ordering;

For Code: 3411, 3421, 3431 series: Fully reversible for right & left handed door.
