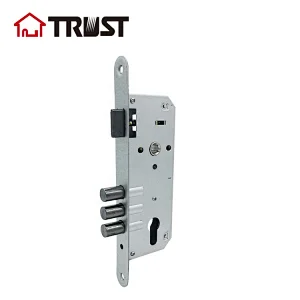

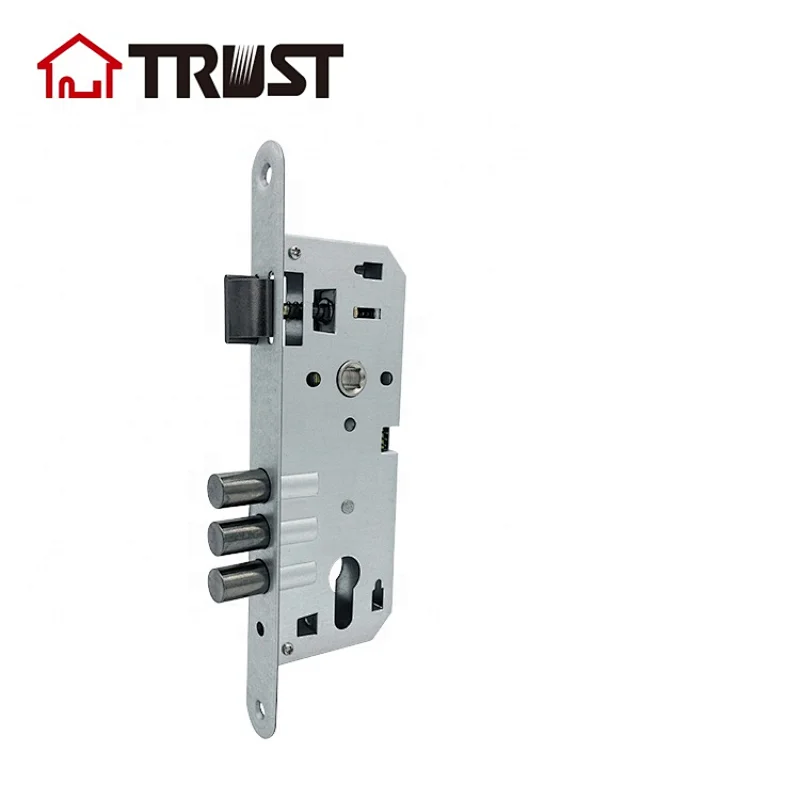

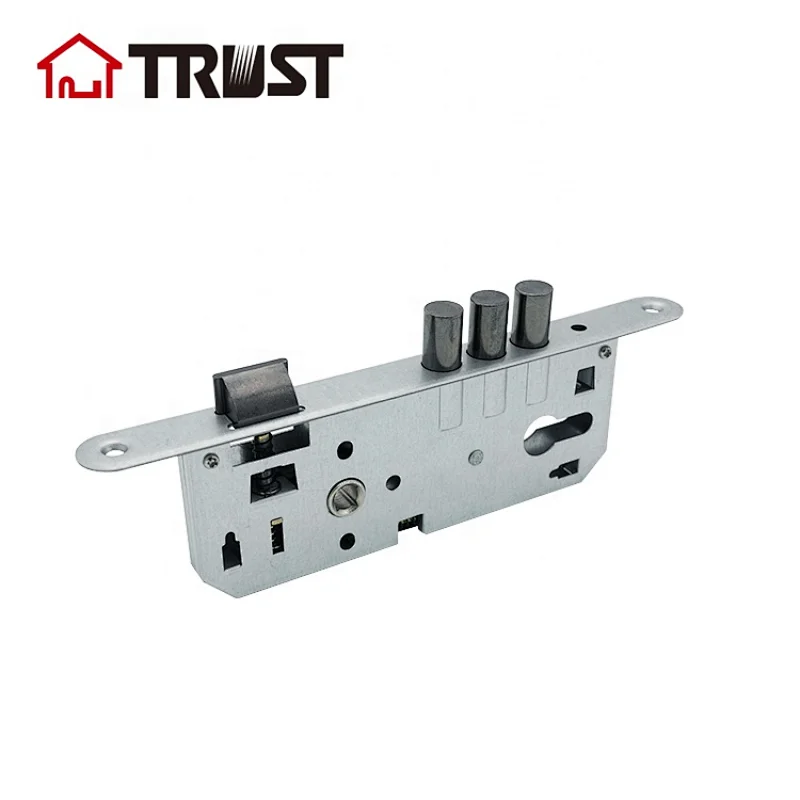

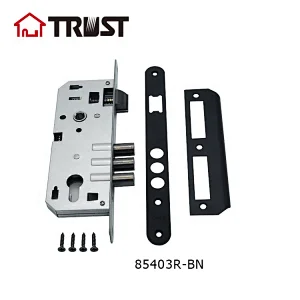

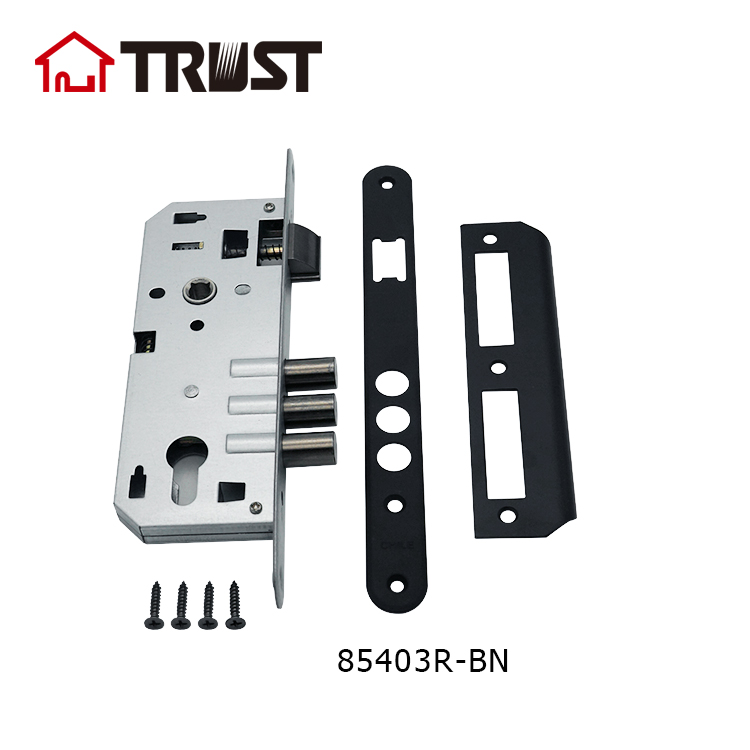

TRUST 8540-3R-BN High Quality european mortise cylinder door lock body with Bolt

Model NO.
8540-3R-BN
Delivery:
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:8540-3R-BN
  • Function:ET,BK,PS,BD
  • Door thickness:Fit doors 35-55mm
  • Backset:Available in 45mm
  • Front&Strike material:Stainless Steel, Solid Brass or Iron.
  • Cylinder:5 or 6 pin Euro Profile Cylinder
  • Keyway:Ya or KW1 or C4
  • Quality:Exceeds 300,000 cycles
  • Front plate:Round corner or Square corner
  • Cam:Brass material
  • Lock Type:turnable latch mortise lock

Product Description


TRUST new structure type stainless steel turnable latch mortise lock

Item:8540-3B-BN

Special Design for Exterior & Interior Doors & All Fire Rated Doors.

FunctionET ( Entrance), BK (Bathroom, Privacy), PS( Passage )
Fit DoorsFit doors 35mm to 60MM thick
BacksetAvailable in 45mm
LatchStainless Steel material,Full 1"(25mm) throw, 3 round bolts with 2 turn operation.
FrontplateSquare or Round corner 3mm ThickxLength 270mm, made of Stainless steel, Solid Brass or Iron
StrikeSquare 2.5mm thick x 270mm length as standard, 3mm thick as optional. Made of Stainless Steel, Solid Brass or Iron.
CylinderEquiped with 5 or 6 pin Euro Profile Cylinder with YA or KWor C4 keyway
Typeturnable latch mortise lock
