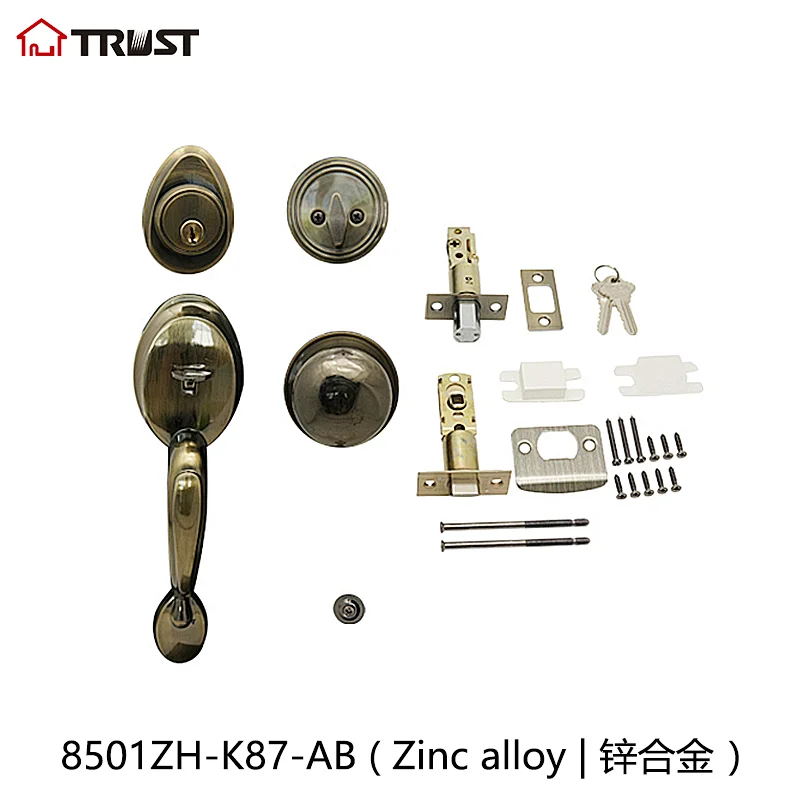

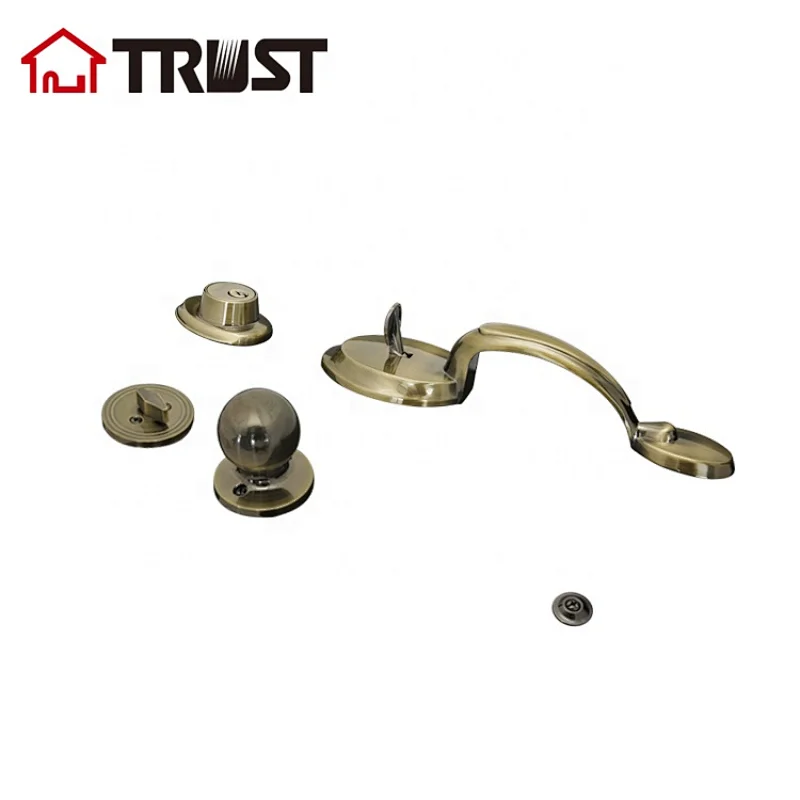

TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle
TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle

TRUST 8501ZH-K87-AB Zinc alloy HandleSet With Single Cylinder Deadbolt Grip Handle

Model NO.
8501ZH-K87-AB
Delivery:
FOB
Quantity:
  • Material:Zinc alloy
  • Function:Single or Double Cylinder
  • Backset:60 or 70 mm
  • Key way:SC.KW,YA,C4
  • Cylinder:5 pin removable core
  • Door thickness:35-45 mm
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:8501 Z-K87-AB
  • Certification:Ansi Grade 3

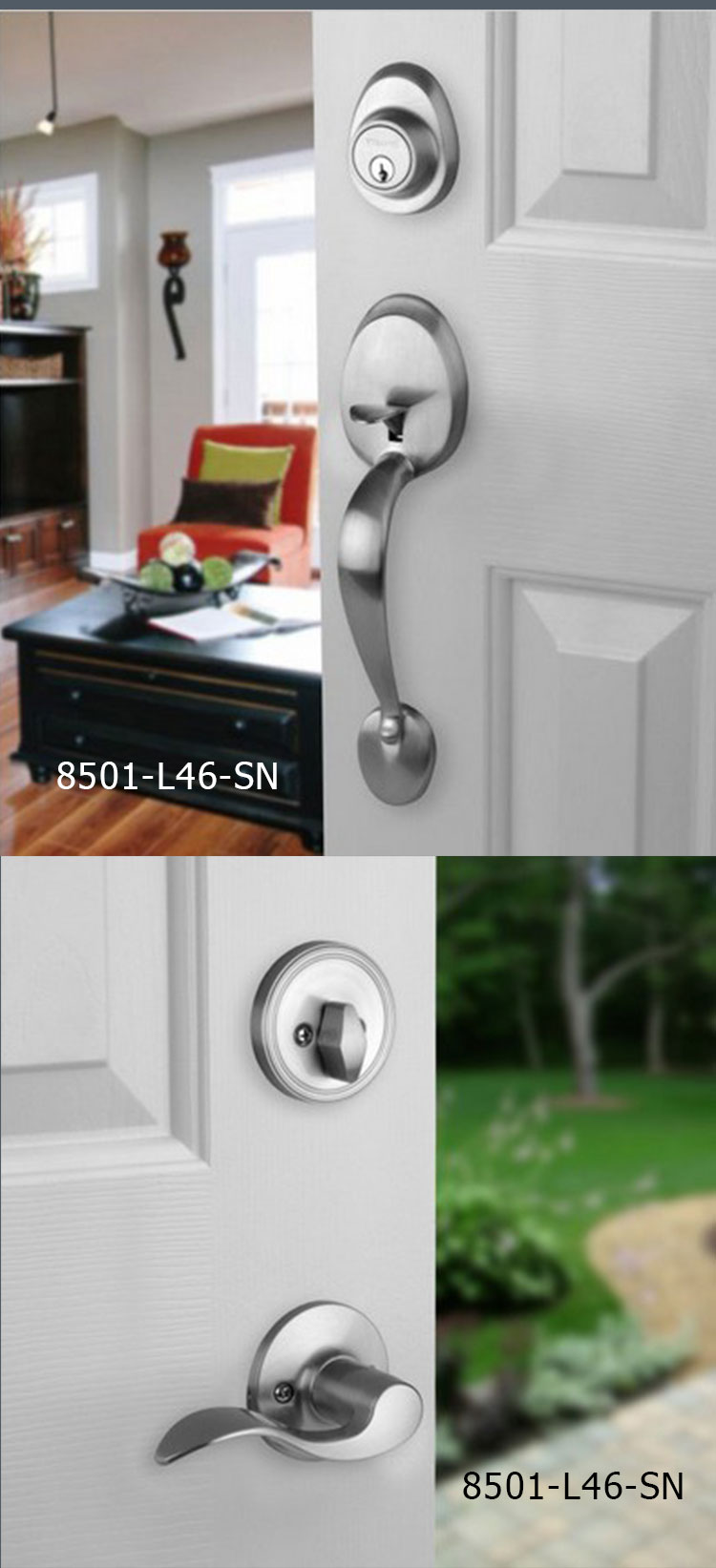

Product Description








Key Specifications/Special Features:

  • 1,50 (Chelsea)handle, Round knob (interior)
  • 2,Function: single cylinder

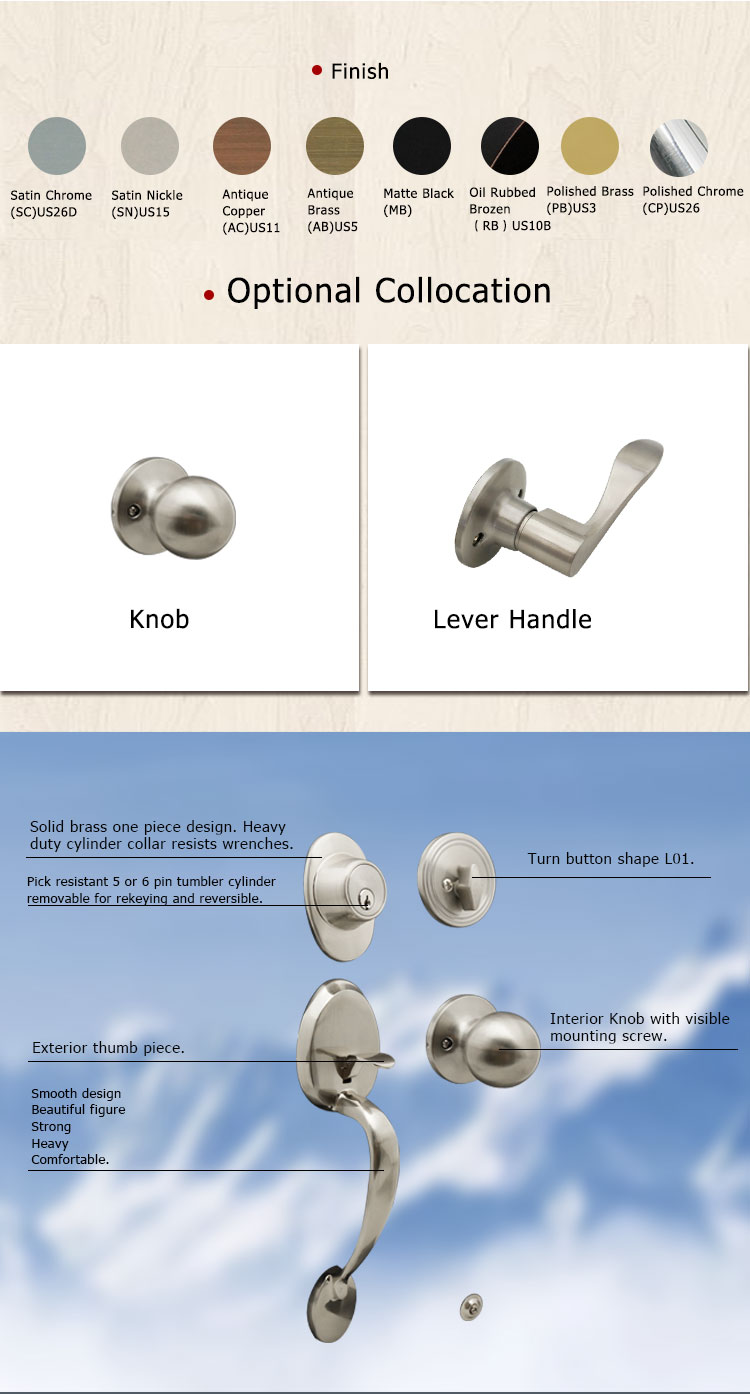

  • 3,Finish: satin nickel,ANTIQUE Brass, Polished Brass
  • 4,Complies with ANSI A156.2 Grade 3 standard.
  • 5,Bore: dia. 51mm(2") (upper hole), dia. 54mm(2 1/8")(down hole), dia. 10mm(3/8")(screw hole) for cross bore
  • 6,Door thickness: 35mm-45mm
  • 7,Backset: adjustable latch (60mm to 70mm--2 3/8"or 2 3/4")
  • 8,Grip handle: zamak
  • 9,Rosette: zamak
  • 10,Thumb piece: zamak
  • 11,Inside knob(lever): knob: zamak; Lever: zinc diecast plated to match finishes indicated12,
  • 12,Inside rose: zamak
  • 13,Cylinder: brass, 5-pin tumbler rekeyable SC keyway, 6-pin keying available
  • 14,Keys: three or five nickel plated brass keys, CMK, MK systems available
  • 15,Latch bolt: 25mm(1")(upper) and 12.5mm(1/2")(lower) throw, brass
  • 16,Front: brass or stainless steel
  • 17,Strike: brass or stainless steel
  • 18,Hand: non-handed

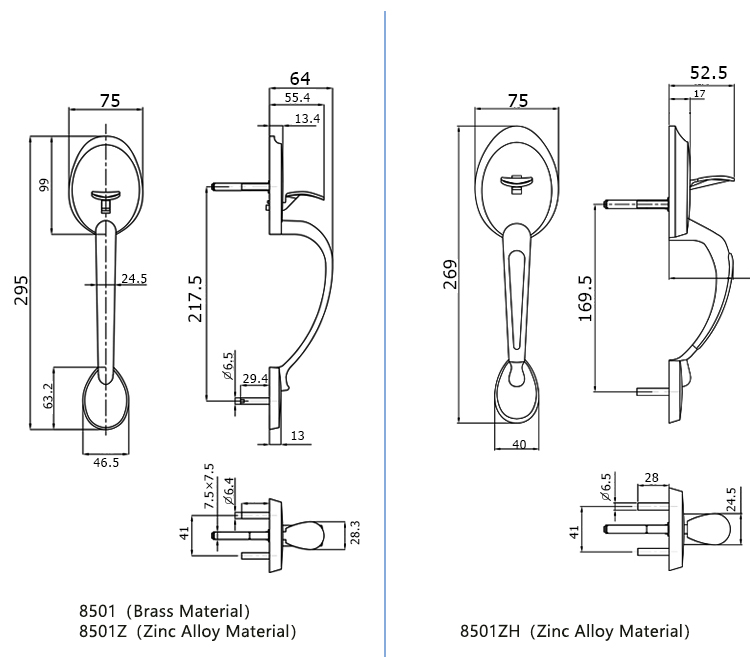

Product Overviews

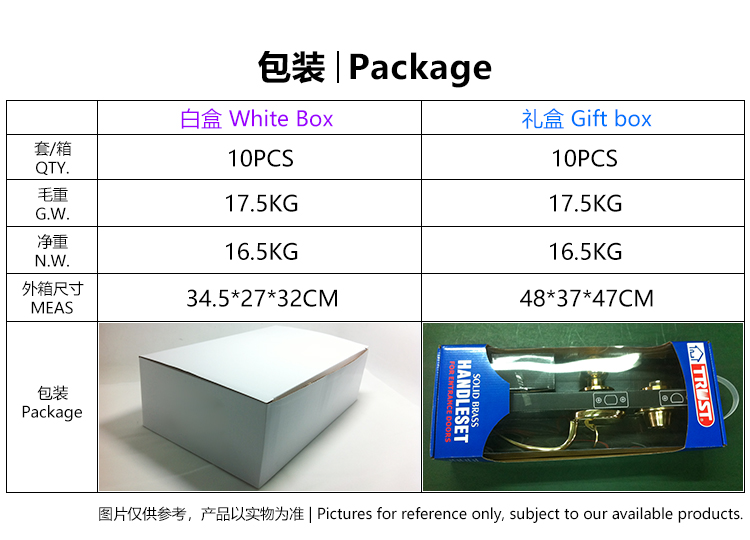

Packaging & Shipping

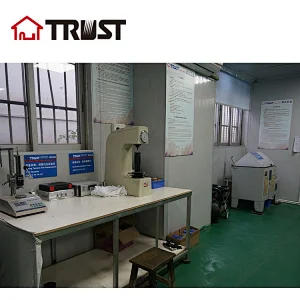

Certifications

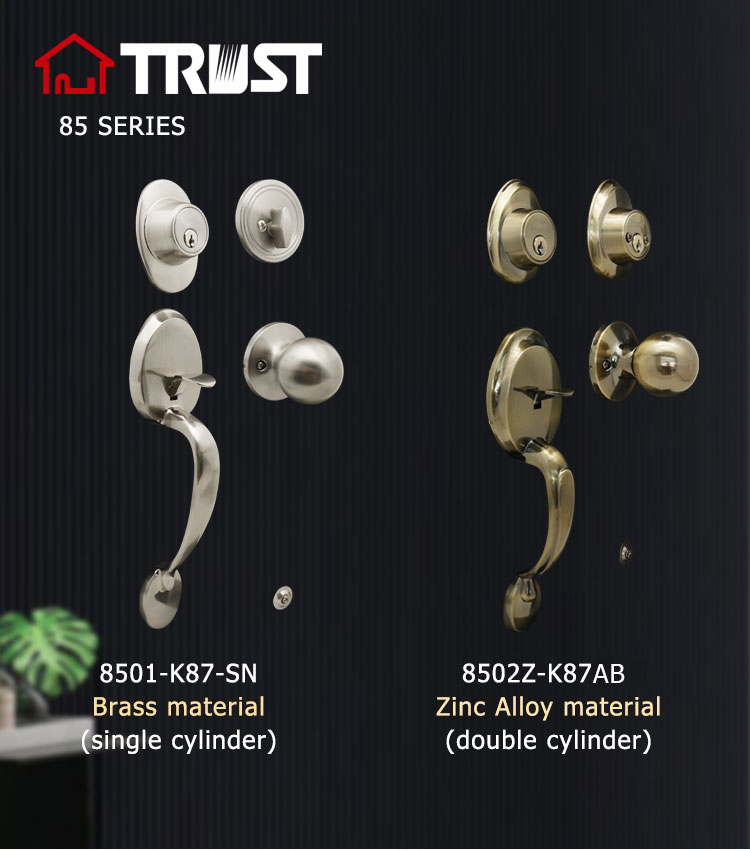

Handle lockset

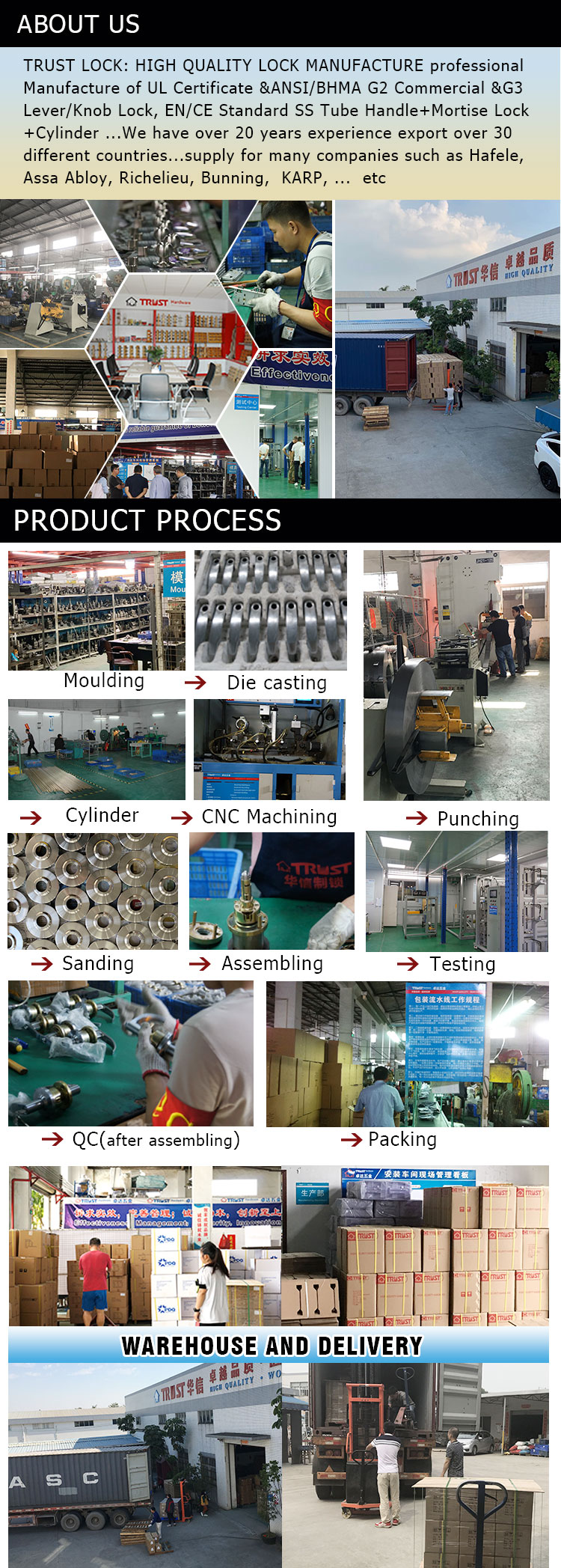

Company Information

Handle lockset

FAQ
1:We are Specializes in Grade 2 & Grade 3 Knob and Lever Door Lock,Hollow & Solid Lever handle,Mortise Lock Bodyand other Common Hardware accessory for over 10 years in ZhongShan,China.Now We have over 300 staffs and 130,000 Square feet's Factory.
2:We insist Quality and Price frist . I know the high quality and competitive price of Lock products are always attractive. All of our clients from US,Europe,Candan,Australia,Asia and South America are speak highly of our High competitive products quality which meet international Standard and USA ANSI specification for Grade 2 & Grade3.
3:Professional Knowledge about the Lock tool.We have experienced Salesman and engineer.They willgive you the most useful suggestion and idea.Fashion and modern design of products always show by our website and attract your eyes.
4 :Serve as the same important.Now the Serve after the deal also important among the modern trade.We will solve all the problem with our true attitude for the first time.
