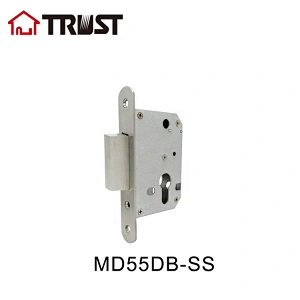

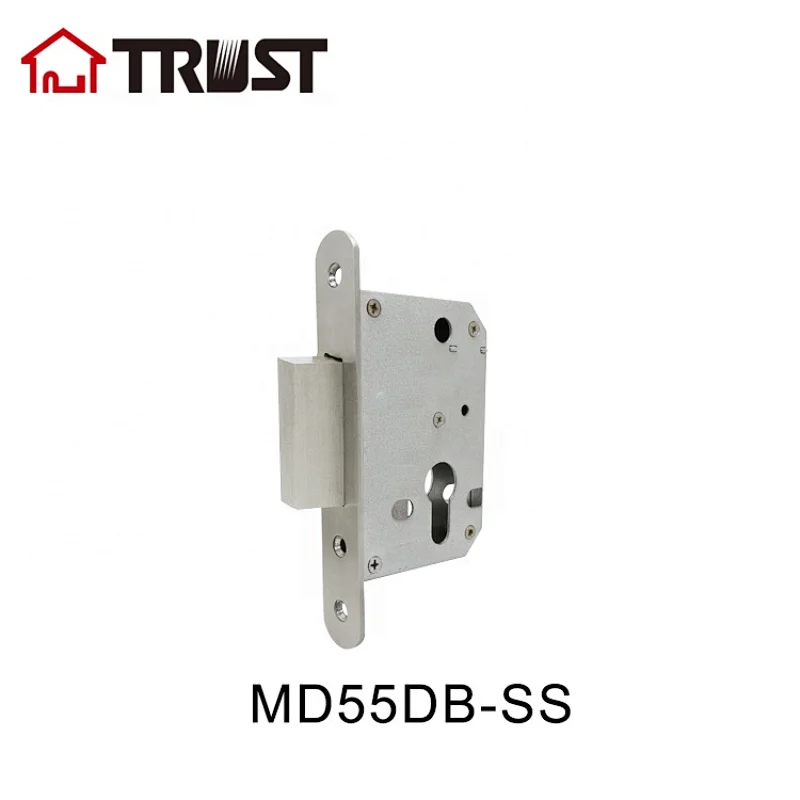

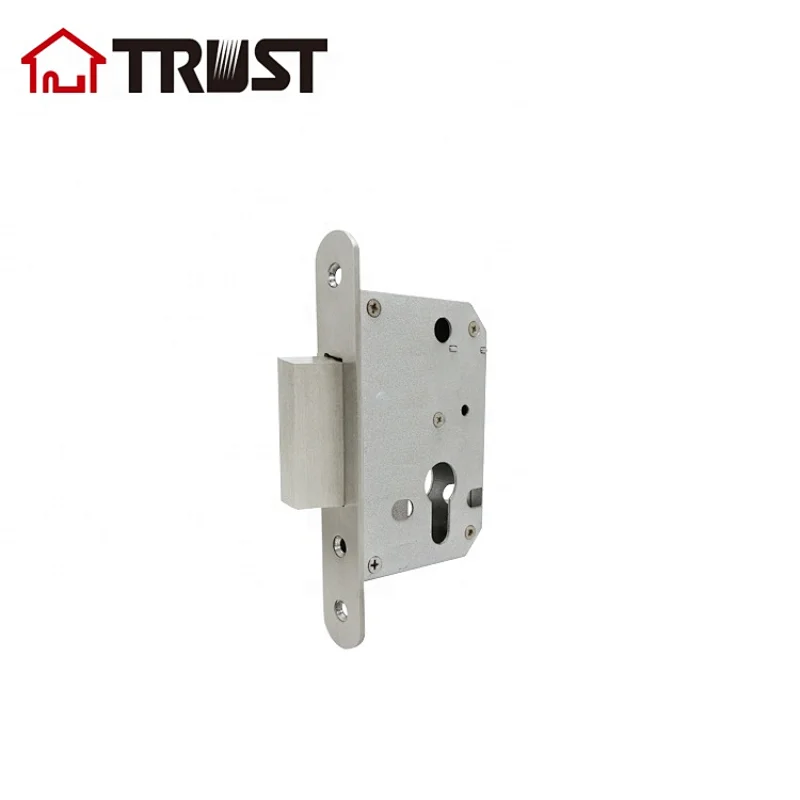

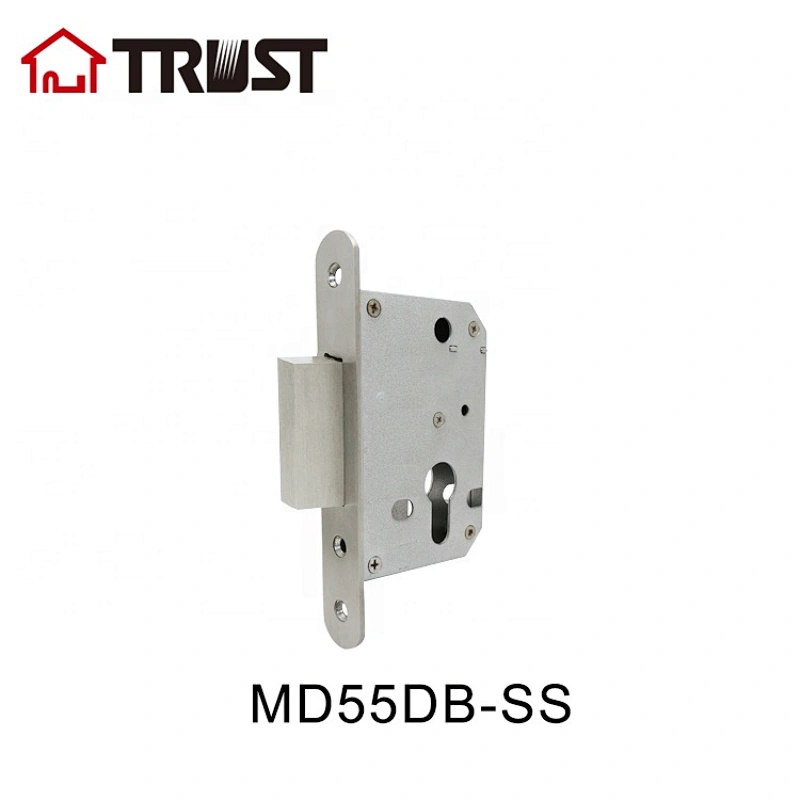

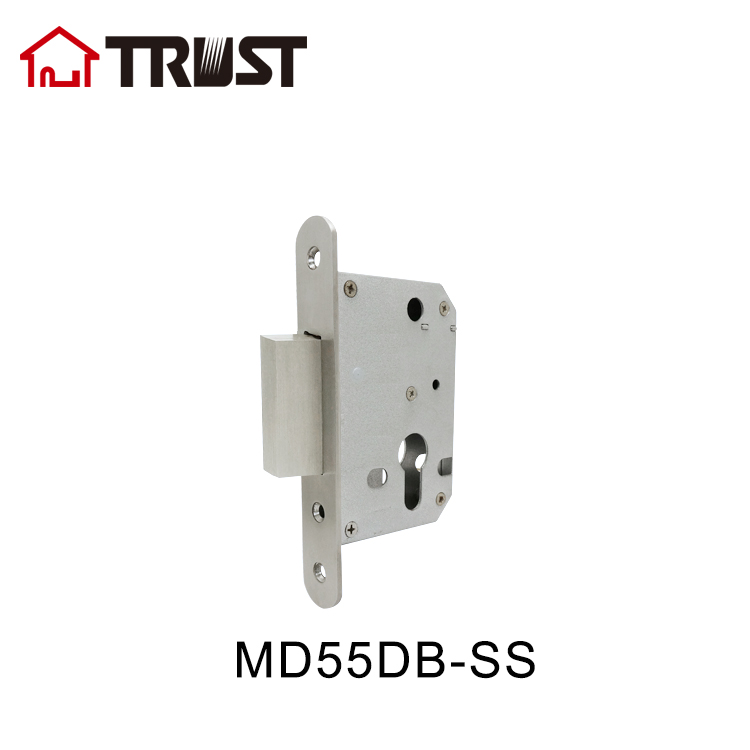

TRUST MD45-DB-SS European Style Mortise Hook Lock for Sliding Doors single deadbolt door security lock
TRUST MD45-DB-SS European Style Mortise Hook Lock for Sliding Doors single deadbolt door security lock
TRUST MD45-DB-SS European Style Mortise Hook Lock for Sliding Doors single deadbolt door security lock
TRUST MD45-DB-SS European Style Mortise Hook Lock for Sliding Doors single deadbolt door security lock
TRUST MD45-DB-SS European Style Mortise Hook Lock for Sliding Doors single deadbolt door security lock
TRUST MD45-DB-SS European Style Mortise Hook Lock for Sliding Doors single deadbolt door security lock
TRUST MD45-DB-SS European Style Mortise Hook Lock for Sliding Doors single deadbolt door security lock

TRUST MD45-DB-SS European Style Mortise Hook Lock for Sliding Doors single deadbolt door security lock

Model NO.
MD45-DB-SS(MD55-DB-SS)
Delivery:
FOB
Quantity:
  • Place of Origin:CN;GUA
  • Brand Name:TRUST
  • Model Number:MD45-DB-SS(MD55-DB-SS)
  • Backset:55mm standard (45mm available)
  • Deadbolt:Saw proof steel material chrome plated, 4 bolts (3 bolts optional)
  • Forend type:Square Corner ( Round optional)
  • Front&Strike:SUS304SS 190x23x3mm, Stike 160x23x3mm,
  • Forend Width:23mm standard, 20mm, 22mm, 24mmm optional
  • Forend finish:Satin Stainless, Polished Stainless, PVD Stainless
  • Lock body:Steel material Silver Lacquer
  • Certification:250,000 cycle test, EN12209:2016 /DIN 18.251
  • Cylinder hole:Euro hole profile cylinder
  • Door thick:Applied to wooden or metal door and fireproof doors of 35-75mm
Product Description

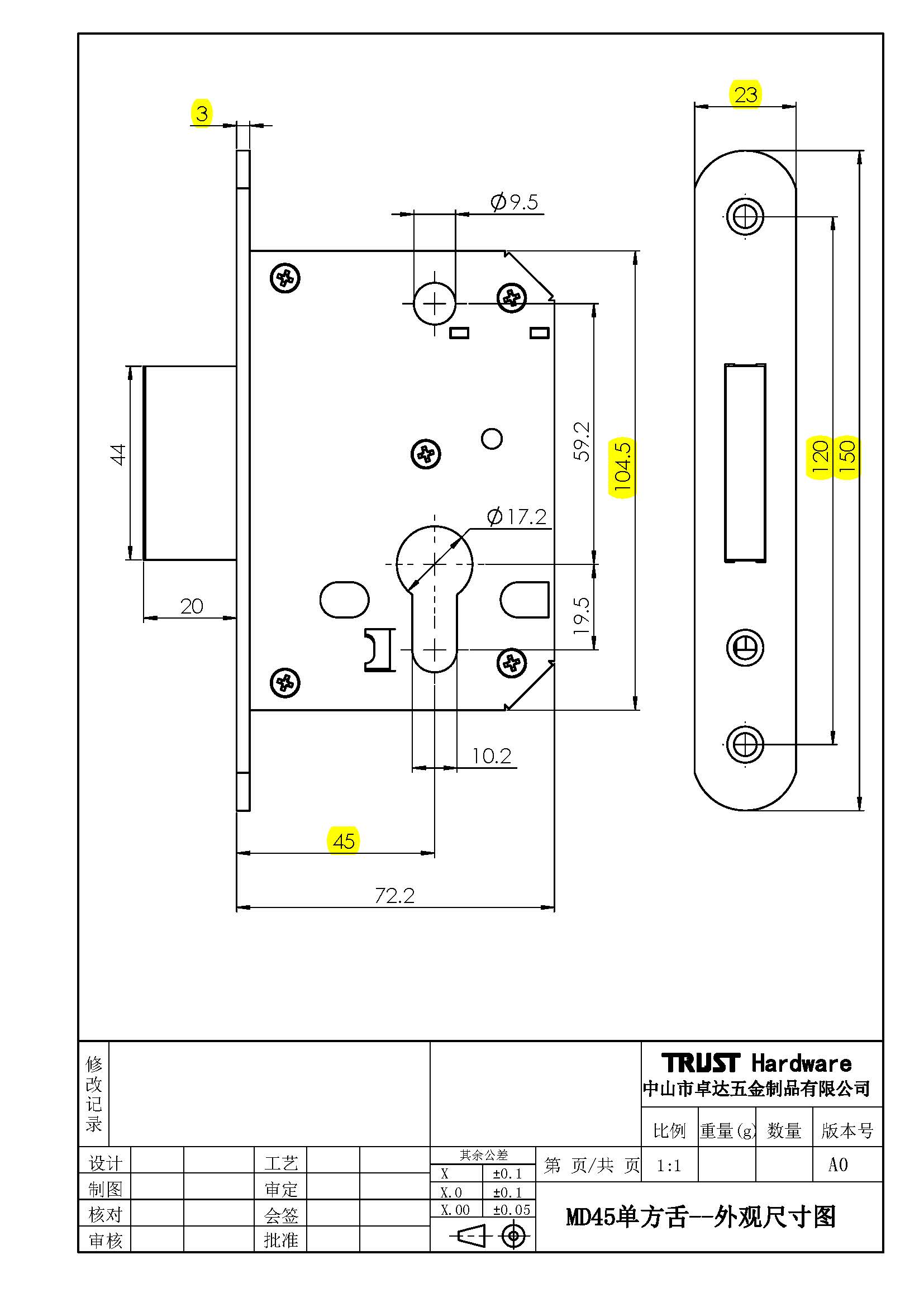

TRUST High Security 45 or 55mm backset steel door lock body



  1. Backset: 55mm standard (45mm available)
  2. Deadbolt : Saw proof steel material chrome plated, 4 bolts standard (3 bolts optional)
  3. Forend type : Square Corner standard, Round optional;
  4. Front&Strike: SUS304SS 190x23x3mm, Stike 160x23x3mm,Thickness: 3mm
  5. Forend Width: 23mm standard, 20mm, 22mm, 24mmm optional
  6. Forend finish: Satin Stainless, Polished Stainless, PVD Stainless
  7. Lock body: Steel material Silver Lacquer
  8. Certification: pass 250,000 cycle test, EN12209:2016 /DIN 18.251 class 3
  9. Cylinder hole: Euro hole profile cylinder
  10. Door thick: Applied to wooden or metal door and fireproof doors of 35-75mm
  11. Accessories: Striking plate, striking plate fixing screws, Striking Plastic Pocket
